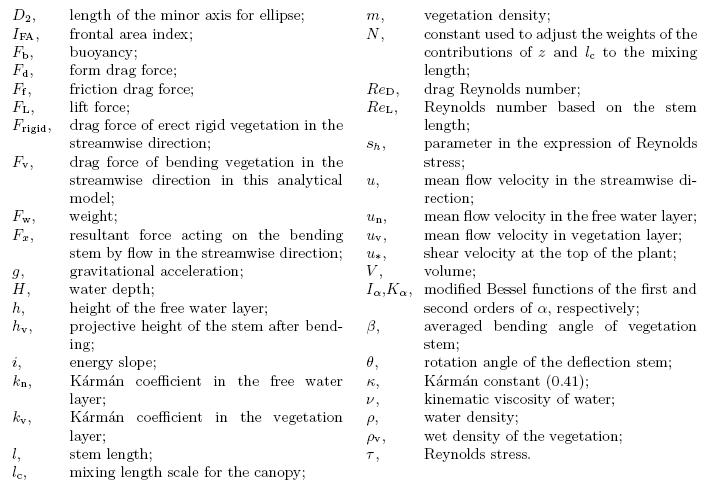

Nomenclature

1 Introduction

The hydrodynamic characteristics of flow in open channels with aquatic vegetation have been widely studied. Vegetation in open channels alters the structure of the water flow,increases flow resistance,affects the transport of sediments and solutes,and has a significant impact on the environment^{[1, 2, 3]}.

Many types of aquatic vegetation are flexible,easy to bend,and have a form that is stream- lined in flowing water^[4]. Recent studies have examined the characteristics of flexible aquatic vegetation,which differ from those of rigid aquatic vegetation^{[3, 5, 6]}. The bending of flexible vegetation in flowing water is an important characteristic related to hydraulic and vegetation properties^{[4, 7, 8, 9]}. In contrast to rigid erect vegetation,for which the drag force-velocity variation shows a squared relationship^[10],flexible plants are bent into a streamlined form with increasing flow velocity,resulting in significantly reduced drag^{[11, 12]}. Besides the drag reduction in water flow,this drag reduction phenomenon was also observed in air flow^{[13, 14, 15]}.

The linear relationship between the drag force and the flow velocity was observed in various experiments. For example,Armanini et al.^[16] measured the resistance of willows in a prototype experiment using a designed force transducer. Their results showed that the stiffness of the veg- etation played an important role in the vegetation drag. For partially submerged rigid willows, the drag force-velocity variation showed the traditional square relationship. For completely submerged flexible vegetation,a linear drag force-velocity variation was observed,which can be explained by the streamlined form of the trees which results in decrease in the momentum- absorbing area. Wilson et al.^[17] conducted a laboratory research on this relationships of 22 full-scale trees of three different genera (1.4 m-4 m). They found that for the full-scale trees, the drag force tends to vary linearly with velocity when it is over 0.5m/s,while for lower veloc- ities (0m/s-0.5m/s),the drag force-velocity variation maintains the squared relationship. This linear drag force-velocity relationship was also observed in the experiments of Schoneboom et al.^[18] with artificial poplars.

Various studies focused on the resistance of vegetation (or use cylinders to simulate vegetation)^{[19, 20, 21]}. For example,Wang^[22] investigated the flow characteristics of flow around a square cylinder by the large eddy simulation (LES). The velocity distribution can reflect the characteristics of vegetation resistance on flows,which have been studied by different meth- ods for the rigid vegetation^{[2, 23, 24, 25]}. For example,Liu et al.^[26] proposed analytical models of streamwise velocity in flows with submerged shrub-like vegetation. Yang et al.^[27] experimen- tally studied the velocity distribution of flows in different types of vegetations such as arbors, shrubs,and grass. For the channel partially covered with vegetation,Zhang et al.^[28] developed the 2D k-ε turbulence hydrodynamic model to simulate the turbulent vegetated flow in this situation.

For the flow through flexible vegetation,the effect of vegetation bending on the turbulent flow structure should be taken into consideration. Huai et al.^[9] proposed an analytical velocity model when the bending of vegetation is not too large. However,for large bending of flexible vegetation,the simulation of the bending curve by the analytical model adopted by Huai et al.^[9] (Eq. (11) in that paper) may not reflect the real situation,because the hypothesis of the uniformly distributed total load on the vegetation stem to calculate the bending curve may have a large deviation from the actual situation. In this case,we try to propose a new analytical solution for the large deflection in the vegetated flow. In this paper,we conduct a mechanical analysis on flexible plants to verify the linear vegetation drag force-velocity relationship,which was observed in experiments by other researchers. Then,we propose a new drag force-velocity expression,which is a new attempt to describe the vegetation drag when large deflection occurs, and formulate the corresponding momentum equations for each layer to obtain the analytical solution of the velocity distribution in the open channel flow through flexible vegetation with large deflection. 2 Theoretical analysis 2.1 Deflection of flexible vegetation

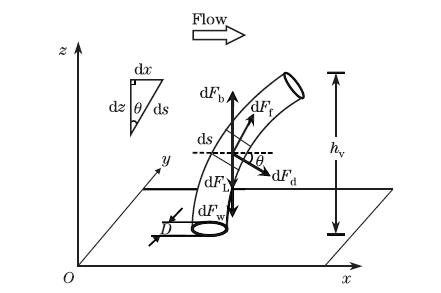

In a uniform,steady,and fully developed turbulent open channel vegetated flow,flexible vegetation bends under the forces exerted by the flowing water. Take a flexible cylinder stem (see Fig. 1) to conduct mechanical analysis. θ is the rotation angle of the deflection stem,and hv is the projective height of the stem after bending. Figure 1 illustrates five forces acting on a small element ds: the element weight dF_w,the element buoyancy dF_b,the lift force dF_L,and two kinds of drag force: the form drag force dF_d,which is normal to the stem,and the friction drag force dF_f ,which acts along the stem.

The weight of the element can be calculated by its volume and density,which can be expressed as

where ρ_v is the wet density of the vegetation,g is gravitational acceleration,and dV is the volume of the element.

The submerged flexible vegetation is subjected to an upward buoyancy force in the flow, which can be expressed as

where ρ is the water density.

When the flow moves through the bending vegetation stem,it generates a lift force,which is perpendicular to the streamwise direction. The lift force is downward^[4] when 0 < θ < π/2 and can be expressed as

where C_L is the lift coefficient,dAL is the projected area of the element on the coordinate plane Oxy,and u is the mean flow velocity in the streamwise (x) direction. It is noted that the flow velocity in this paper refers to the mean velocity rather than the instantaneous flow velocity.

The form drag force normal to the stem and the friction drag force along the stem can be calculated by^{[7, 29]}

where C_d is the form drag coefficient,C_f is the friction drag coefficient,A_f is the frontal area of the stem,A_s is the surface area of the stem,D is the frontal-projected width of the stem, and C_p is the perimeter of the stem cross-section. The geometric relationship gives

The resultant force acting on the bending stem by flowing water in the streamwise direction can be calculated by the projecting buoyancy,the lift force,the form drag force,and the friction drag force in the streamwise direction (since weight is not the interaction force between flow and vegetation,it is not included here). It can be seen that only the form drag force and the friction drag force work in the flow direction,while the other two forces are perpendicular to the flow direction. Therefore,the resultant force Fx acting on the bending stem by flowing water in the streamwise direction is

The drag force of bending vegetation acting on the flowing water can also be expressed as Eq. (7),because the acting force and the reacting force are equal and opposite (Newton’s third law of motion).

Substituting Eqs. (4),(5),and (6) into Eq. (7) gives

As an example,in the experiments of Kubrak et al.^[30],the cylindrical stems with an ellip- tical cross-section (the length of the major axis D₁=0.000 95m,the minor axis D₂=0.000 7m, and the stem length=0.165m) were used to simulate flexible plants in a glass-walled flume. D=0.000 95m and C_p=0.002 606 7 m based on the elliptical cross-section.

The form drag and friction drag coefficients vary with the flow velocity and the vegetation characteristics. The form drag coefficient is determined as suggested by Schlichting^[31],

where Re_D denotes the drag Reynolds number,which can be calculated as

The friction drag coefficient in a turbulent flow is calculated by^[32]

where Re_L denotes the Reynolds number based on the stem length where the stem length l = 0.165 m in the experiments of Kubrak et al.^[30],and ν is the kinematic viscosity of water. Substituting the form drag coefficient C_d and the friction drag coefficient C_f into Eq. (8) gives the relationship between the streamwise drag force and the mean velocity,as shown in Fig. 2. Different types of lines indicate different bending angles.

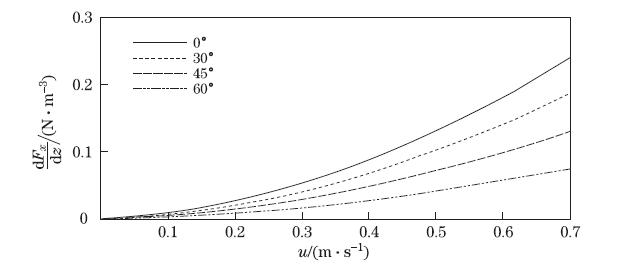

The streamwise drag force-velocity relationship (see Fig. 2) becomes almost linear with the increasing bending angles. According to the experimental results of Kubrak et al.^[30],the velocity in the vegetation layer is less than 0.7 m/s. Therefore,we set the velocity range in this figure to 0 m/s-0.7 m/s. For the larger bending angles,the force-velocity relationship may be substituted by straight lines with different slopes. Wilson et al.^[17] suggested that the linear relationship occurred when the velocity was over 0.5m/s for full-scale trees of three different genera. It is reasonable to assume that a linear force-velocity relationship occurs over a certain range of flow velocity for certain types of vegetation since the flexibility of different types of vegetation is different. However,the velocity may not necessarily be the factor,which directly determines whether the drag-velocity relationship is linear. The bending angle may be the decisive factor,as shown in the theoretical results in Fig. 2,where the relationship appears linear with increasing bending angles. In fact,the bending angle of flexible stems varies with the bending curve and is not always a constant. Generally,the drag force-velocity relationship can be approximately regarded as linear when large bending occurs^{[16, 17, 18]}. 2.2 Model construction

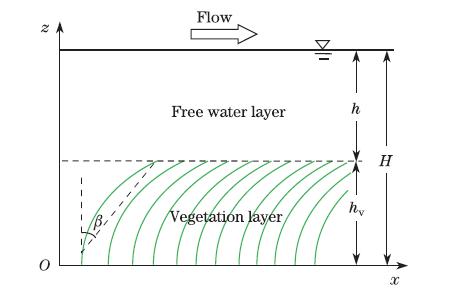

For the uniform,steady,and fully developed turbulent open channel flow through flexible vegetation,the flow regime is separated into two horizontal layers: a vegetation layer and a free water layer,as shown in Fig. 3. H is the water depth,h = H − h_v denotes the height of the free water layer,and β is defined as the averaged bending angle,which is the angle between the vertical direction and the line through the initial and final points of bending.

2.2.1 Flow in vegetation layer

In the vegetation layer,considering the force balance between the Reynolds shear stress, the gravity component,and the drag force of the vegetation,the momentum equation can be expressed as

where τ is the Reynolds stress,F_v is the vegetation drag force in the streamwise direction,and i is the energy slope.

For the Reynolds stress,a first-order closure scheme is presented

where k_v is defined as the Kármán coefficient in the vegetation layer,u* = (gih)^1/2 is the shear velocity at the top of the plant,and uv is defined as the flow velocity in the vegetation layer.

The vegetation drag force for an erect rigid plant is^[10]

where m is the vegetation density,which is defined as the number of stems per unit bed area. When large bending occurs,we approximate the drag force-velocity relationship as linear. Similar to the form of Eq. (15) for rigid vegetation,the drag force of flexible vegetation is presented below. Here,we introduce the shear velocity u* as a characteristic velocity to balance the dimensions in the equation where F_v is the drag force of the bending vegetation in the flow direction,and Cv is a dimen- sionless coefficient which is similar to the coefficient 0.5Cd in Eq. (15).

Substituting Eqs. (14) and (16) into Eq. (13) gives

The flow velocity in the vegetation layer can be obtained from the above equation

where C₁ and C₂ are the integration coefficients,and I_α and K_α (α = 0 and 1) are the modified Bessel functions of the first- and second-order of α,respectively.

The vertical gradient of the flow velocity is

where Here,the frontal area index I_FA = mDh_v,which is the total frontal area of the vegetation elements per unit area of the bed. Then,Eq. (21) can be expressed as

This equation shows that the frontal area index times a coefficient C_v/k_v equals the parameter A. Therefore,the parameter A indicates the effect bulk drag coefficient of bending vegetation in the vegetation layer h_v. It is known that flexible stems bend in flowing water, and the height of vegetation layer is compressed from the stem length l to the bending height hv. Thus,the effect means the stems of bending height h_v rather than that of the stem length l resists the flowing water in a open channel. As a result,we call the parameter A the effective bulk drag coefficient.

The no-slip condition at the channel bed gives

where z₀ approaches zero under the condition of precision required,because Eq. (18) has no mathematical solution when z = 0.

From the momentum balance of the flow above the vegetation,the interfacial shear stress between the vegetation and the free water layers gives another boundary condition^[33]

Substituting Eq. (23) into Eq. (18) and Eq. (24) into Eq. (19),we obtain the integration coefficients

Substituting Eqs. (25) and (26) into Eq. (18) gives the velocity distribution in the vegetation layer. 2.2.2 Flow in free water layer

In the free water layer,there is no vegetation drag force. Therefore,the momentum equation can be expressed as

where the Reynolds stress in the non-vegetation layer can be expressed in the same way as for the vegetation layer where k_n is the Kármán coefficient in the free water layer,and u_n is the flow velocity in the free water layer. Substituting Eq. (28) into Eq. (27) gives

The velocity in the free water layer can be obtained from

where C₃ and C₄ are the integration coefficients,and the vertical gradient of the flow velocity is

When the wind drag and surface tension at the water surface are ignored,the boundary condition can be expressed as

Substituting Eq. (32) into Eq. (31) gives

The velocity distribution in the free water layer is obtained by substituting Eq. (33) into Eq. (30),i.e.,

where the integration coefficient C4 can be obtained by another boundary condition 2.3 Determining coefficients

The application of this analytical model requires the values of three parameters: the effective bulk drag coefficient A and the two Kármán coefficients: k_v in the vegetation layer and k_n in the free water layer. 2.3.1 Effective bulk drag coefficient A

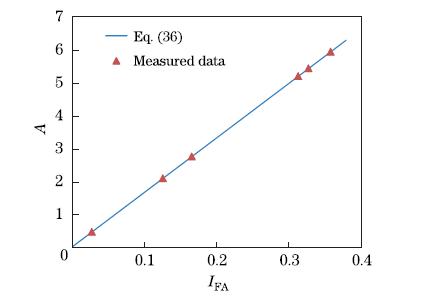

Measurements of Dunn et al.^[34] were adopted to determine the A-I_FA relationship by fit- ting the analytical model results to the measured velocity data,and a linear relationship was obtained (see Fig. 4) as follows:

Then,this equation was verified by the data of Kubrak et al.^[30],and we found that this linear A-I_FA was also suitable for the data of Kubrak et al.^[30],demonstrating the validity of this equation for determining the effective bulk drag coefficient. Equation (36) shows that the effective bulk drag coefficient A = 0 when I_FA = 0,i.e.,the vegetation resistance equals zero when vegetation does not exist,which is consistent with the actual situation. 2.3.2 Kármán coefficient kv

Various methods have been used to express the Reynolds stress in the vegetation layer. Here, we present two approaches^{[33, 35]}.

In the first approach,Yang and Choi^[33] used the eddy viscosity

with C_u = 1 for mD 6 5 m⁻¹ and C_u = 2 for mD > 5 m⁻¹,and the Kármán constant κ = 0.41.

Then,the Reynolds stress can be expressed as

Compared with Eq. (14) adopted in this paper,κ/C_u of Yang and Choi^[33] can be seen as the Kármán coefficient k_v,i.e.,

In the second approach,Wang^[35] proposed an expression for the Reynolds stress based on a modified mixing length theory that takes into consideration the effects of both the ground and canopy elements on turbulent mixing in a wind profile,which is similar to that in flowing water

where the coefficient s_h is calculated by in which the subscript h denotes the height of vegetation rods,and N is a constant used to adjust the weights of the contributions of κh_v and l_c to the mixing length. Here,N=1 is used for simplicity.

By comparing Eq. (40) with Eq. (14),the Kármán coefficient kv can be expressed as

2.3.3 Kármán coefficient k_n

There is no explicit theory to determine the Kármán coefficient kn in the free water layer. Therefore,we determine this coefficient based on the experimental data^{[30, 34]}. 3 Model verification

Our analytical model is applied to the experimental data of Dunn et al.^[34] and Kubrak et al.^[30].

The experiments of Dunn et al.^[34] were conducted in a 19.5m long,0.91m wide,and 0.61m deep tilting flume,using plastic commercial drinking straws (0.006 35 m in diameter and 0.158 75m long) to simulate flexible vegetation.

Kubrak et al.^[30] conducted their experiments in a 16m long and 0.58m wide glass-walled flume. To simulate flexible vegetation,they used cylindrical stems of elliptical cross-section (the length of major axis D₁=0.000 95m,minor axis D₂=0.000 7m,and the stem height before bending is 0.165m). Different from the experimental data adopted by Huai et al.^[9],here we choose the large deflection cases from Kubrak et al.^[30] to verify the model proposed in this paper.

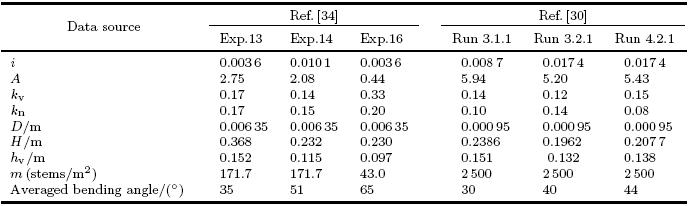

The parameters of the experiments are given in Table 1.

The effective bulk drag coefficient A shown in Table 1 is calculated using Eq. (36). The Kármán coefficients k_v and k_n are determined by fitting the analytical model results to exper- imental data. The averaged bending angles are also taken from the experimental data.

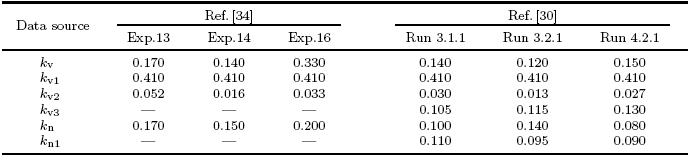

Table 2 compares the Kármán coefficients obtained by the different approaches mentioned above. In the vegetation layer,kv is determined based on the fitting experimental data,and kv1 was obtained by Yang and Choi^[33]. kv2 was obtained by Wang^[35],in which the drag coefficient Cd = 1.13 by Dunn^[36] was used in Eq. (42). This value of Cd matches the analytical estimates of Li and Shen^[37] and has been widely used by many other researchers^{[33, 38, 39, 40]}. kv3 was obtained by Kubrak et al.^[30] using numerical methods. For the Kármán coefficient in the free water layer,kn denotes the value fitting the experimental data,and kn1 was the result obtained by Kubrak et al.^[30].

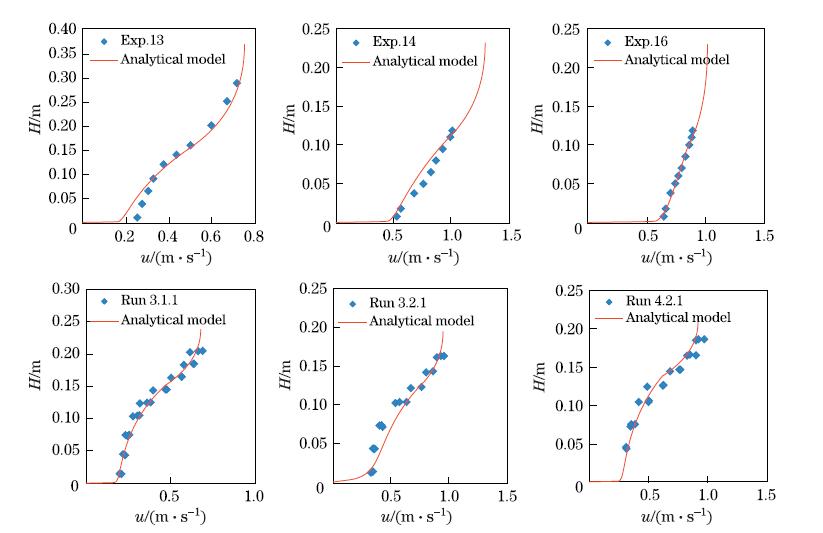

Figure 5 compares the measured velocity with the predicted velocity of this analytical model. The theoretical results are in good agreement with the experimental data,demonstrating that the theoretical formula can be used to predict the streamwise velocity distribution of flow through large bending flexible vegetation.

4 Discussion

In Table 2,we see that k_v1 and k_v2 are deviated from k_v,suggesting that these two approaches^{[33, 35]} are not suitable for the experimental data used here. However,the values of the Kármán coefficients in Ref. ^[30] for the whole flow region are close to those obtained using our analytical model even though different models were used,i.e.,k_v3 and k_n1 are close to k_v and k_n,respectively. Moreover,the values of the Kármán coefficients in these five cases are different from that of Kármán constant κ = 0.41,because the Kármán coefficients obtained here are affected by many factors such as the vegetation density,the bed slope,the water depth, the shear velocity,and the velocity at the top of vegetation^{[33, 35]},which results in difficulty of determining the Kármán coefficients.

Due to the difficulty of determining the Kármán coefficient in explicit formulas,the effec- tive bulk drag coefficient A (Eq. (21) embeds the Kármán coefficient k_v) here is calculated by Eq. (36),which is determined by the data of Dunn et al.^[34] and verified by the data of Kubrak et al.^[30]. The results show that this equation is applicable to the cases adopted in this paper. Although this equation proves effective in the model verification,one should notice that this A- IFA relationship may be different for other situations owing to limited cases to obtain Eq. (36). A more effective approach is needed to investigate the effective bulk drag coefficient in future investigation.

Figure 5 shows that our analytical model is applicable for flexible vegetation in an open channel flow in the case of large deflection. Based on the data adopted in the model verification, in which the minimum averaged bending angle (Run 3.1.1) is 30◦,the large deflection in this paper indicates that the averaged bending angle is larger than 30◦. 5 Conclusions

An analytical model of vertical distribution which is suitable for the open channel flow with large bending flexible vegetation is established. This model is convenient in predicting the velocity distribution compared with numerical solutions and field investigations. We present a new linear drag force-velocity relationship,which is a new attempt to describe the vegetation drag when significant bending occurs. This is consistent with observations by other researchers in recent years. The velocity distribution for each layer is presented,and the good agreement between the model results and previous data demonstrates that this linear streamwise drag force-mean velocity is effective for the open channel vegetated flow when the averaged bending angle is larger than 30◦. Although this trial is proved to be successful,further detailed studies are required to provide more effective approaches for determining the Kármán coefficients and the effective bulk drag coefficient.
