1 Introduction

The space tethered system has a wide range of applications in various space missions^[1]. One application is the use of electrodynamic tethers in carrying electric current,which can generate thrust or drag from a planetary magnetic field in a space debris removal mission. The generated thrust can be used to decelerate space debris,and thus produce the earlier reentry of parts of the debris into Earth’s atmosphere. Moreover,a momentum exchange tether can be used as a drag device during the deorbiting of a reentry capsule to reduce the heat loads on the capsule^[2]. We are interested in the dynamical behavior of the tethered system in a supersonic flow,which has not been mentioned in the literature.

Laurence and Deiterding^[3] and Laurence et al.^[4] investigated the dynamical separation behavior of bodies without tethers,and studied two spheres with different radius ratios and initial configurations in a Mach-4 flow. They concluded that the qualitative separation behavior and the final lateral velocity of the smaller sphere varied strongly with both the radius ratio and the initial alignment angle of the two spheres. Li et al.^[5] investigated the rotational effects on the dynamical separation behavior of the bodies,and found that the rotary motion could extend the time of “surfing” and made the final lateral velocity of separation bigger. The present work is based on the above discoveries. The schematic configuration considered in this work is presented in Fig. 1. Two spheres with different radius ratios,i.e.,r₂/r₁ = 0.625 and r₂/r₁ = 1,and different length tethers,i.e.,l/r₁ = 2,3,4,+∞,are considered. The two spheres,centroid axially aligned,are held stationary first,then released,and subsequently let fly freely in a Mach-4 flow.

In this paper,the spheres are considered to be rigid with non-ablating bodies. The tether is slender. We ignore its influence on the flow field. The Favre-filtered Navier-Stokes equations are considered. In our opinion,the Euler equations are for far field,and are not suitable for near field. We may note that the first grid cells at the wall are too coarse to capture the details of the subcell motion. Therefore,the usual no-slip boundary condition is no longer appropriate,and must be replaced by another condition. One approach is using a wall model. However,the pressure forces on the bluff bodies behind a detached and normal-shock-type wave front are usually so high that the skin friction and/or boundary-layer effects are comparatively small and may be neglected^[6]. Therefore,the viscous force applied on the bodies is neglected in this investigation. A reflect boundary condition is used to enforce the immersed boundary conditions. This work is based on the AMROC-WENO-TCD/VTF code (http://www.cacr.caltech.edu/asc). For readers’ convenience,we give a brief description of the computational modelling. The structure of this paper is as follows. In Section 2,the computational modelling is described. The computational overview of the investigation is presented in Section 3. The validation and results of the investigation are presented and discussed in Section 4 and Section 5,respectively. Finally, some conclusions are drawn in Section 6.

2 Computational modelling 2.1 Fluid solver

To investigate the dynamical behavior of the rigid spheres with a tether interacting with a supersonic flow,a fluid solver for the three-dimensional and Favre-filtered compressible NavierStokes equations in the Cartesian coordinates to a rigid body solver coupled with the consideration of the Newtonian laws of motion are employed. The conservation law form governing equations of the fluid flow are written as follows:

where q(x,t) is the vector of the state defined by and f_n(q) is the flux function defined by Here,the subscript n is the nth component of the variables,and n = 1,2,3. The variables with overlines are box-filtered variables,and the variables with wide tildes are Favre-filtered variables. ρ is the density. t is the time. u is the the velocity. p is the hydrostatic pressure. δ is the Kronecker delta. E is the total energy per mass unit. is the viscous stress tensor defined by is the subgrid stress tensor defined by ^e is the subgrid total energy defined by q is the heat conduction,which follows the Fourier law as follows: where κ is the air conductivity.

^e is a variable,which needs to be modelled. In the AMROC-WENO-TCD code,the stretched-vortex subgrid model proposed by Kosovi´c et al.^[7],Misra and Pullin^[8],and Pullin^[9] is implemented to model ^e. Besides,the equation of state is also required to be close to the above system of equations,i.e.,

Equation 1 is approximated in the explicit finite-volume scheme as follows:

where the subscript i is the ith component of the variables,and i = 1,2,3. The superscript ν is the step number for the time advance in a computational period,and ν = 1,2,3. is the conservative variable obtained within a computational period. Qⁿ (n = 0,1,2,· · · ) is the conservative variable obtained in the previous computational period. The iteration is started with ν = 1,and n = 0. F is the numerical flux function. α,β, and γ are the coefficients listed in Table 1. The viscous terms of F are computed by an explicit,centered,second-order, and 3-point stencil scheme. The inviscid terms of F are computed first by the Steger-Warming flux vector splitting method^[10] and then by the third-order weighted essentially non-oscillatory (WENO) scheme^[11] to interpolate the flux values on the cell boundaries. An optimal thirdorder strong stability-preserving (SSP) Runge-Kutta scheme is used to evolve the time step of the system. 2.2 Immersed boundary treatment

In this investigation,the surfaces of spheres are moving immersed boundaries for the flow solver. The ghost fluid method^[12] in conjunction with the level set method^[13] are used,where the nearest layers of the cells within the spheres are ghost cells. The width of the ghost cells depends on the stencil of the Eulerian solver. Besides,an automatic dynamic mesh adaptation along the moving immersed boundary is used since this approach usually reduces the approximation accuracy on the boundary. A two-dimensional immersed boundary treatment schematic diagram on a Cartesian grid in the literature^[14] is shown in Fig. 2.

Once the ghost cells are determined,the coordinates of their corresponding MPs will be calculated. Then,a bilinear interpolation procedure (three-dimensional trilinear) is used to calculate the values at these MPs. For the Dirichlet boundary condition,it can be enforced by setting the value at the ghost cells (φ_GC) as follows:

where φ_BI is the value at the boundary intercept between the ghost cell and the MP. For the Neumann boundary condition,it can be enforced by setting φ_GC as follows: where Δl denotes the distance between the ghost cell and the MP. 2.3 Adaptive mesh refinement

Since the simulations in this investigation are three-dimensional and the computation domain should be large enough to allow the spheres to fly free,the computational cost is huge. To reduce this,the adaptive mesh refinement technology is used in the AMROC-WENO/TCD (adaptive mesh refinement in object-oriented C₊₊) code^[15].

The regions near the immersed boundaries,where shock exists,must be refined. To do this, we need to chose an appropriate refinement criterion. In this investigation,we do the refinement at the cells whenever

where is the threshold value (0.04 in this paper) for the adaptive refinement. In addition,8 coarser cells near the boundaries are refined too. 2.4 Coupling algorithm

To treat the communications between the fluid solver and the rigid body solver,two types of coupling strategies are developed,i.e.,the loose-coupling algorithm and the strong-coupling algorithm. The main difference between the two strategies is how the rigid body solver integrates in the time^{[16, 17, 18]}. The loose-coupling algorithm integrates in the time explicitly,while the strong-coupling algorithm integrates in the time implicitly. The loose-coupling algorithm has a faster computational speed but with lower stability. The main issue affecting its stability is the so-called “added mass” effect^[19]. In this investigation,the density ratio of the fluid-to-sphere is very small,which ensures the stability of the loose-coupling algorithm. Therefore,we choose the loose-coupling algorithm. In this approach,the solution at the next time step n + 1 is determined as follows:

(i) The force f on each body consists of three components,i.e.,the aerodynamic force f_a, the tether pulling force f_t,and the collision force f_c. f_a is calculated by integrating the pressure over the surface of sphere. f_t is calculated by |f_t| = kΔl/l,where k is the coefficient of elasticity (10 000N·m⁻¹ in this paper),and l and Δl are the length of the tether and the increment of the tether,respectively. Assume that the perfect elastic collision |f_c| is 1 000N,which is much greater than any other force.

(ii) The coordinates of each sphere’s center (x) is updated according to the Newtonian laws of motion as follows:

where m is the mass of the sphere.

(iii) The level-set function is updated,and the fluid solver advances a time step.

3 Computational overview

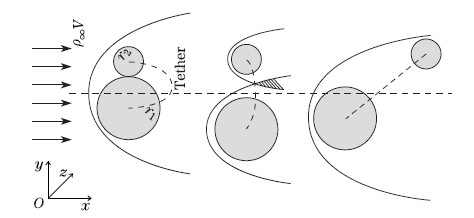

We consider a supersonic flow with a free-stream Mach number M_∞ = 4,driving two spheres with different radius ratios,initially stationary,then centroid axially aligned,with an identical tether,and finally flying freely. An ideal gas is assumed for the free stream. We specify the air properties as follows: ρ_a = 0.07 kg · m⁻³,μ = 1.73 × 10⁻⁵ Pa · s,γ = 1.4, and k = 0.025 7W· m⁻¹ · K⁻¹,where ρ_a is the density,μ is the viscosity coefficient,γ is the ratio of the specific heats,and k is the thermal conductivity coefficient. The uniform initial conditions are ρ₀ = ρ_a,u₀ = 0m· s,and p₀ = 1 400 Pa. The left boundary of the computational domain is an inflow boundary,where ρ_i = ρ_a,p_i = p₀,and u_i = (670,0,0)m · s. Other sides of the computational domain are outflow boundaries. We specify the properties of the bodies as follows: ρ_s = 1 122 kg · m⁻³,and r₁ = 0.025m,where ρ_s is the density,and the radius ratio r₂/r₁ is chosen to be 0.625 and 1,respectively,which will make the smaller sphere experience different types of motion,namely,“surfing” on the bow shock generated by the bigger sphere or being rapidly expelled from the region^{[3, 4]} bounded by the shock. The tether length varies from 2r₁ to 4r₁,and the x-velocity of the spheres are denoted as v_x1 and v_x2,respectively.

The computation is separated into two parts. When t < 1×10⁻⁵ s,the inflow velocity at the left-side is continuously increased by specifying u_i (1−exp(−5×10⁻⁵)). When t > 1×10⁻⁵ s, u_i = 670m·s⁻¹. The spheres are held to be stationary during the interval t ∈ [0,0.001 4] s,which will establish a quasi-steady flow field. When t > 0.001 4 s,the spheres are allowed to fly freely. The level of the adaptive mesh refinement is set to be two,and the minimal spatial resolution is Δ_min = 0.001 m. The time step is calculated according to the Courant-Friedrichs-Lewy (CFL) condition number,and the maximum CFL number is set to be 0.85.

4 Validation

To validate the present simulation,we compare the numerical results with the experimental data^[4]. In the experiment,Laurence et al.^[4] investigated the dynamical behavior of two spheres with different radius ratios. Here,we study the same configuration as them. Two simulations are performed to qualitatively and quantitatively compare the results. Both simulations use a computational domain of the size [−0.05,0.025]m × [−0.095,0.145]m × [−0.09,0.09]m and a base grid of the size 150× 120× 90 with two-level adaptive mesh refinement (AMR). The final simulation time is t_e = 0.024 s. Other computational details can be found in Section 3.

First,a qualitative comparison of the flow fields is performed. The radii of the two stationary spheres are r₁ = 0.025 4 m and r₂ = 0.015 875 m,and their center coordinates are initially located at (0m,0m,0m) and (0m,0.043 275m,0m),respectively. Figure 3(a) is a schlieren image obtained through the introduction of a horizontal knife edge in Ref. [4],and Fig. 3(b) is a computational pseudo-schlieren image generated by visualize the magnitude of the density gradients on the z = 0 plane. The flow structures agree each other well.

Next,we perform a qualitative comparison of the computational results with experimental data. The radii of the two stationary spheres are r₁ = 0.025 m and r₂ = 0.012 7m,and their center coordinates are initially located at (0m,0m,0m) and (0m,0.040 1m,0m),respectively. The following dimensionless variables are defined:

where t′ is the dimensionless time,x′ and y′ are the dimensionless distances,v′_x and v′_y are the dimensionless velocities,and C_D and C_L are the drag coefficient and the lift coefficient, respectively. V = 670 m·s⁻¹ is the inlet velocity. The subscripts x and y are the directions of the coordinate frame. x(0) and y(0) are the initial x- and y-coordinates of the bigger sphere, respectively. a and v are the instantaneous acceleration and velocity. r is the radius.

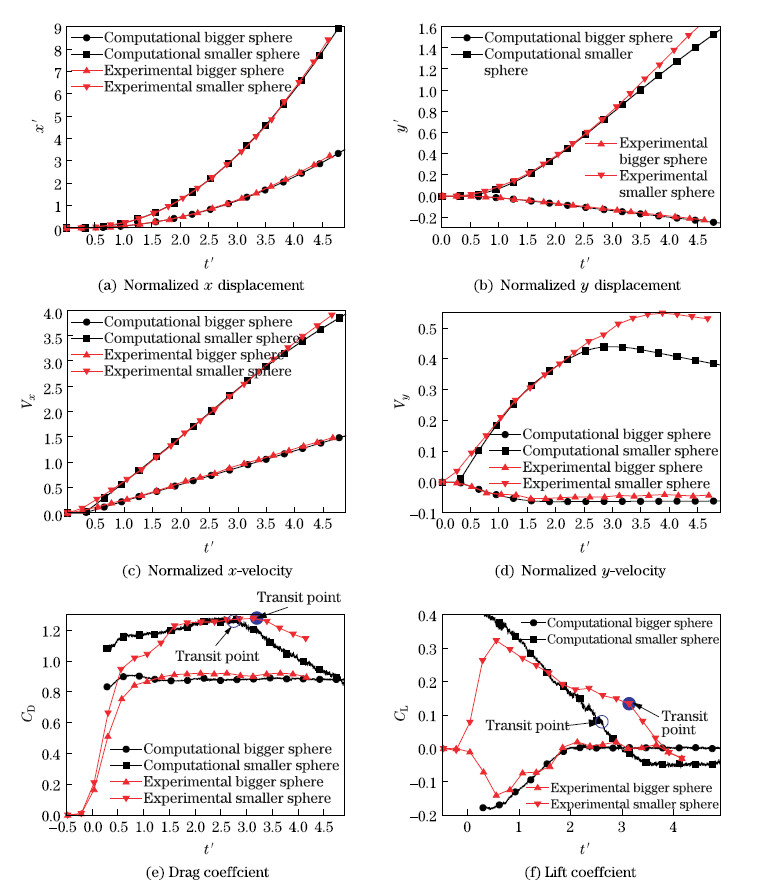

Figure 4 compares the obtained non-dimensional displacements,velocities,drag coefficients, and lift coefficients of the two spheres with the experimental data. From the figure,we can see that,although the results generally agree with each other (especially the results of the bigger sphere),the computational lateral velocity of the smaller sphere decreases earlier than that in the experiment (t′ = 2.5). This means that the smaller sphere in our simulation is entrained earlier in the flow region bounded by the primary bow shock than in the experiment. This is due to the different manners of releasing the spheres. In our simulations,the instant when the spheres are released is precisely specified. In contrast,the corresponding instant in the experiment cannot be well defined. It is not surprise that the force coefficients during the startup period do not agree with those in the experiment,since the flow conditions are not strictly the same. As shown in Figs. 4(c)-4(d),the computational velocities are held to be zero during the interval t′ ∈ (0,0.291),while the computational velocities in the experiment are nonzero. This difference is amplified in the next period,finally leading to a different “entrainment time”. Once the smaller sphere is entrained in the flow region bounded by the primary bow shock,the drag coefficients and lift coefficients rapidly decrease. Considering that the force coefficients of the smaller sphere are substantially more sensitive to the spheres’ relative positions,the force coefficients exhibit good overall agreement.

5 Results and discussion 5.1 Qualities of tether system

In this subsection,we treat two spheres as a system,and investigate their centroidal quantities. We use a computational domain of the size [−0.07m,0.73m]×[−0.2m,0.2 m]×[−0.2m, 0.2m] and the base grids 200 × 100 × 100 with three-level AMR. The radius of one sphere is fixed to be r₁ = 0.025m,and the radius of the other sphere is set to be r₂ = 0.4r₁,r₂ = 0.625r₁, and r₂ = r₁,respectively. The length of the tether l is set to be l = 2r₁,l = 3r₁,and l = 4r₁, respectively,in the different simulations. Their centers are initially located at (0,−r₁,0) and (0,r₂,0),respectively. When the spheres reach the boundaries of the computational domain, the simulation is terminated. The maximum final simulation time is set to be t_max = 0.08 s. For more computational details,see Section 3.

The following dimensionless variables are defined:

where is the dimensionless mean x-velocity of the system which also called the lengthwise velocity, is the drag coefficient of the system,and a_^x1 and a_x2 are the instantaneous accelerations of the two spheres. Other dimensionless variables used in this section are the same as those in Section 4.

Now,we demonstrate the types of motion that the system experiences. Figure 5 plots the pressure contours on the central plane,z = 0m,for six different types of motion. In Figs. 6(b) and 6(d),we label the types of motion only for the r₂ = 0.625r₁,l = 2r₁ case and the r₂ = r₁,l = 3r₁ case because all the cases for the same radius ratio experience similar types of movements. We note that the drag coefficient increases for the r₂ = 0.625r₁ cases at the beginning of the changes compared with the no-tether case. This is because that the tether will force the smaller sphere to move downward to the bigger sphere and make the higher pressure region move upward from its lower-left direction (see Fig. 5(a)),resulting in the increase in the drag of the system. We denote this type motion as “Type A”. Following the “Type A” motion, the second sphere will be entrained into the region bounded by the primary shock,which results in less drag. This type of motion is denoted as “Type B” (see Fig. 5(b)). When the smaller sphere reaches the lower shock front,it is dragged along the shock (see Fig. 5(c)). This type of motion is denoted as “Type C”,and will increase the drag experienced by the system. The action mechanism is similar to that of the “Type A” motion. Note that there may be a type of motion whereby the smaller sphere is thrown out of the region bounded by the shock generated by the bigger sphere for another radius ratio case.

For the r₂ = r₁ case,the x positions of the two spheres are approximately equal. Therefore, the tether only constrains their relative y positions. The decrease in the system drag coefficient is due to another reason. Because the velocities of the spheres are small compared with the free stream (the maximum is approximately 3%) during the entire simulation,we can ignore the influence of the changes in the velocity,and determine the system drag coefficients only by their relative positions. In Fig. 6(d),we denote the octuple y distance between the two spheres for each case by dashed lines. Note that the drag coefficients are strongly related to the y distance between the two spheres. When the y distance between the two spheres increases,the drag coefficients decrease,and vice versa,expect for the coefficients during t′ ∈ [0,2.5] compared with the l = 3r₁ case for t′ ∈ [4,9] and the l = 4r₁ case for t′ ∈ [8,12]. This is because that the flow conditions have not yet reached the steady state for t′ ∈ [0,2.5] (see Fig. 5(d)). This type of motion is denoted as “Type D” (see Fig. 5(e)),and the steady flow situation is denoted as “Type F”(see Fig. 5(f)).

For the r₂ = 0.625r₁ cases,the system experiences “Type A” motion,then “Type B” motion,and then “Type C” motion,subsequently repeating this process until the system decays or becomes unstable. During the process,the mean x velocities of the system will increase, decrease,and finally increase. After one period of motion,the x velocities of the system decrease compared with the no-tether system. For the r₂ = r₁ system,the motion will alternate between “Type E” motion and “Type F” motion until the system becomes unstable and makes the x-velocity of the system increase compared with the no-tether system.

Because the x-velocity is the quantity of the principal interest here,in Fig. 6,we compare the normalized x-velocity and the drag coefficient of the system for seven configurations,which have varying radius ratios and tether lengths. General speaking,for all r₂ = 0.625r₁ cases with a tether,the mean normalized x-velocity decreases compared with the no-tether case (l = +∞), and the l = 2r₁ case reduces the maximum. Moreover,For all the r₂ = r₁ cases with a tether, the normalized x-velocity increases. In general,this is caused by the different relative positions of the spheres after the tether is tensioned. For the r₂ = 0.625r₁ cases,the tether stretches the smaller sphere into the wake region bounded by the primary bow shock,which makes the system experience a smaller drag. In contrast,for the r₂ = r₁ cases,the tether stretches the two spheres closer,which increases the windward of the system and produces a greater drag.

5.2 Quantities of bigger sphere

In this subsection,we discuss the quantities concerning the bigger sphere. Our principal interest is the x-velocity of the sphere,i.e.,v_x. Figure 7 shows the profiles of v_x and the drag coefficient versus the non-dimensional time for different cases. From the figure,we can see that v_x increases in all cases but with different mechanisms.

From Figs. 7(a) and 7(b),we can see that the x-velocity of the bigger sphere experiences a greater acceleration than in the no-tether case when the tether is stretched. This is because that the smaller sphere always flies faster than the bigger sphere. However,the tether pulls the two spheres closer when r₂ = r₁,which makes each sphere experience greater drag,resulting in the increase in the x-velocity of the bigger sphere over that of the no-tether case. From Figs. 6(e) and 6(f),we can see that the closer spheres experience a greater drag than the remote spheres. From Figs. 7(b) and 7(d),we can see that every time the two spheres collide,the drag coefficient of the bigger sphere peaks. For the r₂ = r₁ cases,this is because that the centroids of the spheres are not strictly aligned along the y-axis. This may cause the system to become unstable and the motion type to change. The peaks in Figs. 7(b) and 7(d) are caused by the collision of the two spheres.

6 Conclusions

We have performed a series of numerical simulations to investigate the dynamical behavior characteristics of two spheres with various configurations in a supersonic flow. The quantities concerning both the system and the bigger sphere are investigated. The results can be summarized as follows:

(i) There are at least six types of motion in the system. Each type of motion exhibits a different drag coefficient.

(ii) Compared with the no-tether case,the change in the mean stream-wise velocity of the tethered system depends on the radius ratio of the spheres. For equally sized spheres,the velocity increases. In contrast,the velocity decreases for unequally sized spheres.

(iii) For all cases,the stream-wise velocity of the bigger sphere increases but with different mechanisms. This property can be used to design the decelerators for re-entry devices.
