1 Introduction

The problems of heat transfer in the turbulent flow with laden particles are very important in nature and engineering^[1-4],for instance,coal combustion,gas turbine,heat exchangers,and nuclear reactors. For the particle-laden turbulent flow,due to the dispersion of the particles in the turbulence,the particles as medium have the contribution of momentum and thermal transport to the turbulence. Therefore,the heat transfer of particle-laden flow is controlled by both turbulence and particles. It is known that many attempts have mainly focused on the study of heat transfer of particle-free turbulent flow. However,the study of turbulent heat transfer in the particle-laden turbulent flow is relatively little due to the complexity of the interaction between turbulence and particles. Therefore,the study of heat transfer in the particle-laden flow is considerably significant to understand the mechanisms of heat transfer between two phases.

In past decades,many experimental and numerical studies of heat transfer in the particlefree turbulent flow have been performed^[5-9]. Many thermal quantities,including the mean temperature,turbulent heat fluxes and diffusive sublayer thickness,etc.,have been examined,and some mechanisms of heat transfer in the turbulent flow have been understood. It was found that the turbulent heat transfer is mainly characterized by the Prandtl number of the fluids besides the Reynolds number^[10]. Redjem-Saad et al.^[11] investigated the effect of low to intermediate Prandtl number on the turbulent heat transfer in pipe flows under the isoflux wall condition. They found that the temperature streamwise spectra increase significantly with increasing the Prandtl number at intermediate and high wave numbers,suggesting that the small scales are gradually damped by the enhanced conductive effect with the decrease of the Prandtl number. Recently,the effects of the particles on the heat transfer in the turbulent flow were investigated. Zonta et al.^[12] studied the influence of dispersed micrometer size particles on turbulent heat transfer mechanisms in the channel flow and showed that,with respect to the single-phase flow,heat transfer fluxes at the walls increase by roughly 2% when the flow is particle-laden with the smaller particles and an opposite trend for the flow with larger particles. A study by Kuerten et al.^[13] found the ratio of particles and fluid specific heat plays a significant impact on the heat transfer,by means of direct numerical simulation (DNS) of gas-particle turbulent flow in the vertical channel with high specific heat capacity particles. Jaszczur^[14-15] analyzed the heat transfer and thermal interaction between the particles and fluid in the nonisothermal fully-developed suspension channel flow. However,to date,most works mainly focus on the modulation of different properties of the particles on the heat transfer of turbulent flow,and the effect of the particles on the heat transfer in the turbulent flow with different fluid thermal properties (such as Prandtl number) is rarely considered. Since the particles have different effects on the thermal field of turbulence with different fluid thermal parameters,the study of heat transfer between the particles and turbulence with different thermal properties is absolutely essential in both applications and fundamentals.

The literature survey reveals that there is no DNS of turbulent heat transfer in the particleladen turbulent channel flow at different Prandtl numbers. In this paper,we firstly present the DNS which investigates the modulation of the particles on the turbulent thermal statistics in the particle-laden flow for different Prandtl numbers. The present paper is structured as follows: the governing equations and the numerical method are described in Section 2. The results of the turbulent thermal statistics (mean temperature,the root mean square (RMS) of temperature fluctuations,turbulent heat flux,the correlation coefficient,and the thermal streaky structure) are discussed in Section 3. Section 4 is the conclusion of this work.

2 Governing equations and numerical methodology

In this section,we perform a DNS of non-isothermal turbulent channel flow with the particles. 200 000 particles are injected into the flow at the random position throughout the channel. Represent the motion of a particle with the density ρ_p = 2 400 kg/m³ much greater than that of the surrounding carrier phase fluid,and a diameter of a particle (d_p = 140 μm) smaller than the smallest scales of turbulence (Kolmogrov scale). A simple force balance yields equations for the particle position (x_p,i),the velocity (v_i = dx_p,i/dt) and the temperature (T_p):

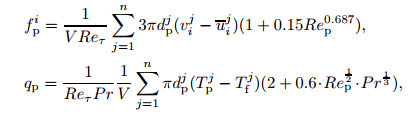

where ui and T_f is the fluid velocity and temperature at the particle position,respectively. Re _p = d_p |v_i − u_i| /ν is the particle Reynolds number. While τ_p = ρ_pd² _p/(18μ) and τ_T =C_{p ,p}ρ_pd² _p/(12k_f) are,respectively,the particle velocity relaxation time and the particle temperature relaxation time. Here,ρ_p,d_p,and C_p,p are the particle density,the diameter,and the particle specific heat capacity,respectively. The motion equations of the particles are advanced in time by a second-order Adams-Bashforth method. The fourth-order Lagrangian polynomial is used to interpolate the fluid velocity and temperature at the particle position. Periodic boundary conditions are used to reintroduce the particle into the computational domain when the particle moves outside the channel in homogeneous directions,whereas the perfectly-elastic collision at the smooth wall is assumed.

Assuming that the fluid is incompressible and Newtonian,the governing equations for the fluid (in dimensionless form) are as follows:

where u_i (i = 1,2,3) represents the velocity components in the spanwise (z),wall-normal (y),and streamwise (x) directions,respectively. p is the kinematic pressure,δ_3,i is the mean streamwise pressure gradient that drives the flow,T is the temperature,the shear Reynolds number is defined as Re _τ = u_τH/ν,based on the shear velocity (u_τ),the half channel height (H),and the fluid kinematic viscosity (ν). The Prandtl number is defined as Pr = C_p,fμ/k_f,based on the fluid specific heat (C_p,f),the dynamic viscosity (μ),and the fluid thermal conductivity (k_f). f_p ⁱ and q_p are the momentum-coupling and energy-coupling terms,respectively. The dimensionless formulae of feedback terms are as follows^[13]:

where V is the rectangular region,n is the number of particles in each region.

In this study,the DNS calculation is performed in six cases with Re_τ = 180. Cases A1,A2,and A3 represent the particle-free flows with Pr = 0.71,1.5,and 3.0,respectively. For the particle-laden flow,Cases B1 (Pr = 0.71),B2 (Pr = 1.5),and B3 (Pr = 3.0) consider the influence of particles on the turbulence. The governing equation of fluid is solved using the fractional step method on a staggered grid^[16]. Periodic boundary conditions are used in the streamwise and spanwise directions,and no-lip and no-penetration velocity conditions are imposed on the walls. Two different constant temperatures are performed on the bottom and top walls,T = 0.5 at y = 1 (the hot wall),T = −0.5 at y = = −1 (the cold wall). The computational domain is 4πH × 2H × 4πH/3 and is discretized using an Eulerian grid made of 129³ nodes. The grid spacing is uniform in the streamwise and spanwise directions,and a stretched grid is imposed in the wall-normal direction.

3 Results and discussion 3.1 Validation of results

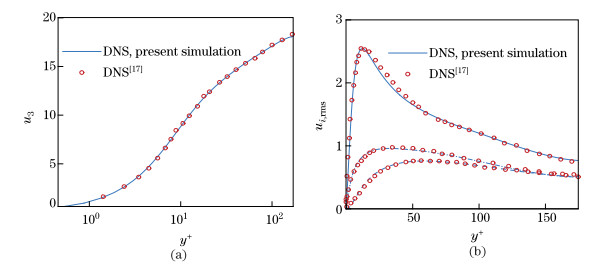

In order to validate the reliability of our codes,two cases which have the same parameters as those of Refs.[17]-[18] are performed by the DNS,respectively. Our DNS results on 128³ grid points will be compared with the previous data by Dritselis and Vlachos^[17] and Lessani and Nakhaei^[18]. In the study of Ref.[17],the DNS of particle-laden turbulent channel flow has been performed on 128³ grid points. The computational domain is 4πH × 2H × 2πH in the streamwise,normal,and spanwise directions. It is identical to the dimension of the domain in the study of Ref.[18]. The Reynolds number based on the channel half -width and the friction velocity is equal to Re_τ = 180. The dimensionless particle diameter (d_p/H) is 3.866× 10⁻³ and the ratio of the particle density to the fluid density (ρ_d/ρ_f) is 7 333. The total number of the particles is 3.5 × 10⁴. The exchange of momentum between the particles and fluid is taken into account,and the effects of particle collisions have been neglected. The mean velocity profile (u₃) and velocity fluctuation intensity (u_i,rms) of the present DNS are compared with the DNS data of Ref. [17]. They are in good agreement with the DNS data in Fig. 1.

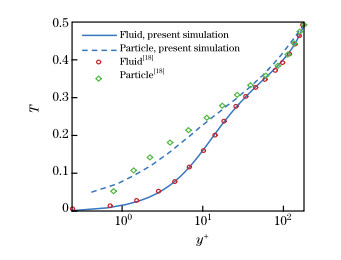

Lessani and Nakhaei^[18] performed the large eddy simulation (LES) with the dynamic model on 64³ grid points for the particle-laden channel flow with the thermal field. The Prandtl number and Reynolds number are 0.7 and 180,respectively. The heat transfer between two phases is considered. The particle diameter and density are the same with those of Ref. [17],and the total number of the particles is 10⁵. In addition,the ratio of particle specific heat capacity to the fluid specific heat (C_p,p/C_p,f) is 1.8. The mean temperature profiles of fluid and the particle along the normal direction are shown in Fig. 2. By comparison,our results are accurate and reliable.

3.2 Mean temperature

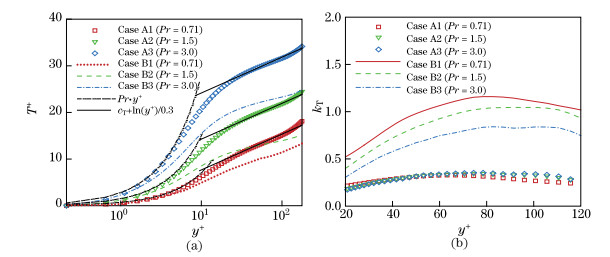

The dimensionless mean temperature distribution normalized by the friction temperature (T_τ = q_w/(ρ_fC_p,fu_τ),and q_w is the wall heat flux) is shown in Fig. 3(a) as a function of the wall distance for three Prandtl numbers (Pr = 0.71,1.5,3.0) at Re_τ = 180. Similar to the mean velocity distribution,there also exists the logarithmic region in the mean temperature (T ⁺ = c_T + ln(y⁺)/k_T),where k_T is the von Karman constant of the mean temperature. In the present simulation,the predicted profile in the logarithmic region for the particle-free flow is in good agreement with Kader’s correlation^[6]. The conductive sublayer thickness becomes gradually thinner when the Prandtl number increases and that is consistent with the results of Ref .[8]. With the existence of the particles,the conductive sublayer thickness is decreased for all Prandtl numbers,and the normalized mean temperature T ⁺ of particle-laden flow is smaller than that of particle-free flow in Fig. 3(a).

Due to the use of the present DNS data,an accurate determination of k_T can be obtained by the relationship (k_T = (dT ⁺/dy⁺)⁻¹/y⁺),and Fig. 3(b) shows the distribution of k_T for three Prandtl numbers. Obviously,kT is independent of Prandtl number and is almost constant (k_T ≈ 0.3) in the logarithmic region for particle-free flows,which agrees with the study of Ref. [7]. However,the particles have significant influence on the von Karman constant for different Prandtl numbers. For the particle-laden flow with three Prandtl numbers,the von Karman constant increases due to the addition of particles,and the increase of k_T is more obvious for the smaller Prandtl number.

3.3 RMS of temperature fluctuations and turbulent heat fluxes

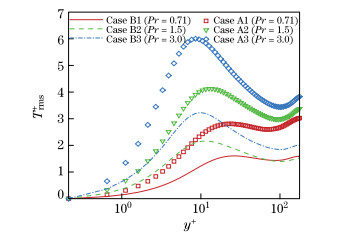

The RMS of temperature fluctuations (T_rms ⁺ ) normalized by the friction temperature is shown in Fig. 4. With the increase of Prandtl number,the temperature fluctuation intensity becomes stronger,and the peak of the temperature intensity becomes larger and closer to the wall. That agrees with the study of Ref. [11]. However,the intensity of temperature fluctuations is significantly decreased for three Prandtl numbers by the particles. Turbulent heat fluxes normalized by the friction velocity and temperature for three Prandtl numbers are shown in Fig. 5. Obviously,with the presence of the particles,the wall-normal turbulent heat flux (u' ₂+T '+) and streamwise turbulent heat flux (' ₃+T '+) are also reduced. The location of the peak value of the streamwise turbulent heat flux shifts towards the channel center for the particle-laden flow.

In order to investigate the extent of the influence of the particles on turbulent thermal statistics,the change rate of thermal statistics can be defined as follows:

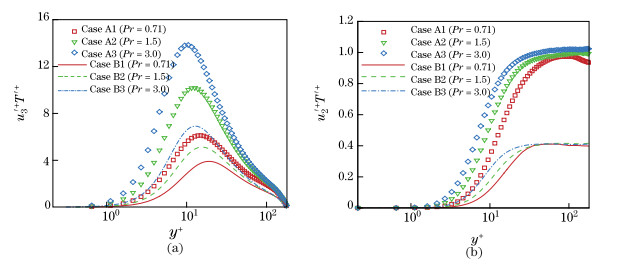

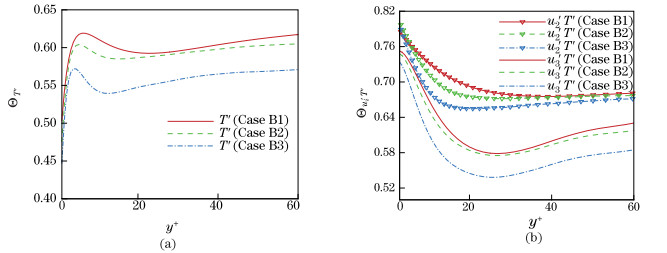

where θ _{particle-laden} and θ_{particle-free} represent thermal statistics of particle-laden and particlefree flow,respectively. The change rates of temperature fluctuation intensity Θ_{T '} and turbulent heat fluxes Θ _{u' iT '} are shown in Fig. 6. Apparently,the change rates of temperature fluctuation intensity and turbulent heat fluxes are monotonically decreasing with the increase of Prandtl number. That indicates that the particles have more significant influence on the thermal field of turbulence with the smaller Prandtl number. Additionally,the peak position of the change rate of turbulent heat fluxes mainly occurs near the wall,as shown in Fig. 6(b),and this possible reason is the cluster of the particles in the near-wall region. In addition,the change rate of the normal-wall turbulent flux (Θ_{u' 2T '}) is always larger than that of the streamwise turbulent flux (Θ_{u' 3T '}) for three Prandtl numbers. The reason for this is that the particles have more effects on normal-wall velocity fluctuations than streamwise velocity fluctuations.

3.4 Nusselt number

In order to measure the influence of the particles on the heat transfer in the turbulent flow with different Prandtl numbers,we define the Nusselt number as follows (in the dimensionless form):

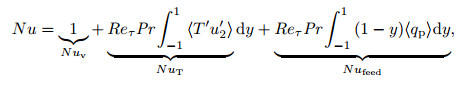

For the particle-laden turbulent flow,the Nusselt number (Nu) can be decomposed into three parts^[13]:

where Nu _v,Nu_T,and Nu_feed represent the contribution of a constant viscous,turbulent convection,and the particle thermal feedback to heat transfer,respectively.

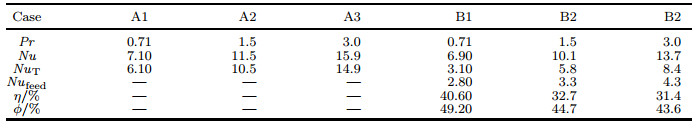

Table 1 shows the three different contributions to the heat transfer of turbulent flow with different Prandtl numbers in this paper. For the particle-free flow (Cases A1,A2,and A3),when the Prandtl number increases,the total Nusselt number (Nu) and the turbulent Nusslet number (Nu_T) gradually increase,which can be found from Refs. [19]-[20]. For the particleladen flow with three different Prandtl numbers,the particles reduce the total Nusselt number (Nu) and the turbulent Nusslet number (Nu_T). Moreover,it is found that the particle feedback Nusselt number (Nu_feed) increases as the Prandtl number increases.

Additionally,to measure the extent of the influence of the particles to heat transfer for the turbulent channel flow with three Prandtl numbers,two parameters can be defined,namely,the change rate (φ) of the turbulent Nusselt number and the ratio (η) of Nusselt number of the particles feedback to the total Nusselt number,i.e.,

where Nu_T,particle-laden and Nu_{T,particle-free} represent the turbulent Nusselt number of particleladen and particle-free flows,respectively. From Table 1,it can be found that the change rate (φ) of turbulent Nusselt number is larger for the particle-laden flow with the smaller Prandtl number. That illustrates that the suppression of convective heat transfer of turbulence induced by particles becomes more evident for the smaller Prandtl number. It is consistent with the change rate of normal-wall turbulent heat flux. In addition,it is clarified that the ratio (η) of the feedback Nusselt number to the total Nusselt number gradually decreases with the increase of Prandtl numbers. That indicates that the contribution to heat transfer from thermal feedback of the particles becomes smaller for the larger Prandtl number. As described above,the thermal field of turbulence with the smaller Prandtl number can be easily affected by particles.

3.5 Correlation coefficients

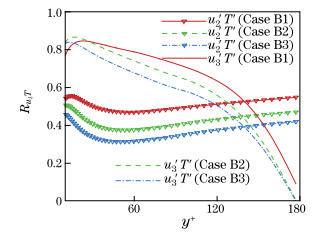

The turbulent thermal field is associated with the turbulent velocity field. For the particleladen flow,the turbulent velocity field is modulated by the particles that results the modulation of turbulent velocity field has influence on the turbulent thermal filed. In order to investigate the interconnection between turbulent velocity field and the thermal field in the particle-laden flow,correlation coefficients between velocity fluctuations and temperature fluctuations for different Prandtl numbers^[21] are shown in Fig. 7. The correlation coefficients R _u2T and R_u3T gradually decease with the increase of Prandtl number. That indicates that the interconnection between the turbulent velocity and thermal field becomes gradually weak as the Prandtl number increases. Therefore,it is illustrated that the modulation of turbulent velocity field induced by the particles has more significant impact on the turbulent thermal field for the particle-laden flow with the smaller Prandtl number.

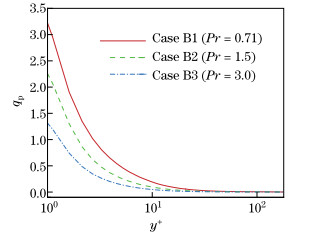

In addition,the turbulent thermal field is directly connected with the temperature of the particles besides the turbulent velocity field. The heat exchange between turbulence and particles is analyzed in Fig. 8. Obviously,the heat exchange between two phases becomes more depressive for the particle-laden flow with the larger Prandtl number,and thermal feedback of the particles on turbulence (q_p) becomes weaker. The correlation coefficient of the particles and turbulence temperature fluctuations is further investigated. The correlation coefficient of the particles and turbulence temperature fluctuations is defined as follows:

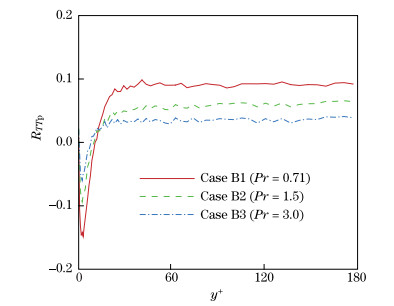

where T ' _p and T ' are the particle and fluid temperature fluctuations at the particle position,respectively. And T_p,rms and T_rms are RMSs of the particle and fluid temperature fluctuations at the particle position. Figure 9 shows the correlation coefficient of the particles and fluid temperature fluctuations (R_{T Tp}) becomes smaller with the increase of Prandtl number. That further explains that the influence of the particles on the turbulent thermal field with the larger Prandtl number becomes weaker.

3.6 Structure of temperature fluctuations

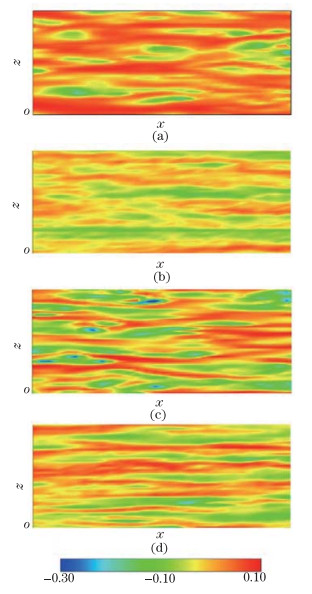

To explore the effects of the particles on the thermal structures for various Prandtl numbers,instantaneous temperature fluctuations in the near-wall region are visualized in Fig. 10. For the particle-free flow,it is obvious that thermal streaks become more pronounced with the increase of Prandtl number in Figs. 10(a) and 10(c). That is consistent with the study of Ref. [11]. Due to the existence of the particles,the thermal streaks become more continuous and more persistent in the near-wall region in Figs. 10(b) and 10(d). Furthermore,the particles have more significant influence on the thermal streaks for Pr = 0.71. Because of the correlation between the thermal and the velocity field,the thermal streaks are affected by the succession of bursting motion. For the larger Prandtl number,the relevance between thermal and velocity field reduces,which causes ejection and sweep events to have less influence on the thermal streaks.

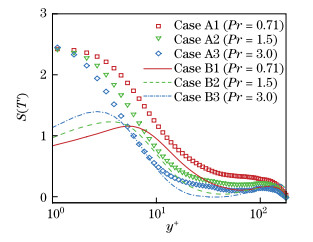

Higher-order statistics such as skewness are analyzed. A high positive value of the skewness means that the temperature fluctuations obtain large positive rather than negative values more frequently. Obviously,the particles reduce the value of S(T '),and the tendency is more evident for the smaller Prandtl number near the wall,as shown in Fig. 11. It implies that the frequency of the temperature fluctuations characterized by low-temperature streaks becomes larger. That is consistent with the modulation of the thermal streaky structures induced by the particles for different Prandtl numbers.

4 Conclusions

In the present work,the influence of the particles on the turbulent thermal field with three Prandtl numbers (Pr = 0.71,1.5,and 3.0) is investigated by the DNS combined with the Lagrangian particle tracking method. Compared with results of particle-free flow,the particles reduce the normalized mean temperature,temperature fluctuations,and turbulent heat fluxes for the particle-laden flow with three Prandtl numbers. Furthermore,the convective heat transfer of turbulence is suppressed by particles. In addition,some parameters are defined,such as the change rate of thermal statistics,the ratio of the particles feedback Nusselt numbers to the total Nusselt numbers (η),and the change rate of the turbulent Nusselt number (φ),to investigate the extent of the influence of the particles on the turbulent thermal field. It is shown that the weakening of temperature fluctuations and turbulent heat fluxes induced by particles is more evident for the particle-laden flow with the smaller Prandtl number.

By investigating the interconnection between the turbulent thermal field and the turbulent velocity field,it is found that the modulation of velocity field induced by the particles has less influence on the turbulent thermal field of the particle-laden flow with the larger Prandtl number. In addition,the heat exchange between the turbulence and the particles gradually decreases as the Prandtl number increases. The reasons explain that the modulation of the particles on the turbulent thermal field with the small Prandtl number is more obvious than that for the large Prandtl number.
