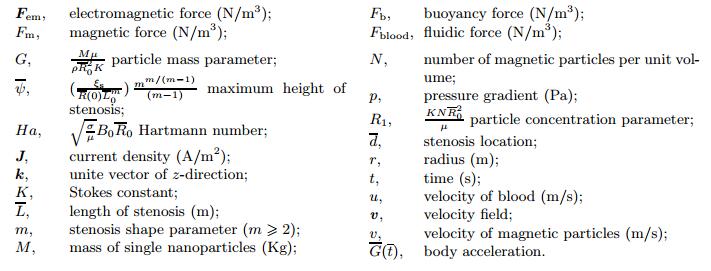

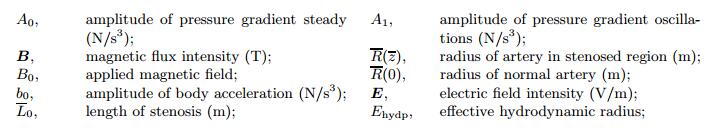

Nomenclature

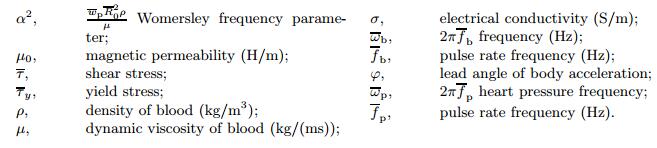

Greek letters

1 Introduction

Arterial stenosis is a serious medical problem as an obstruction in the blood artery that disturbs the normal blood circulation^[1-2]. Several authors have studied the blood flow through artery with stenosis using Newtonian or non-Newtonian fluid models^[3-6]. Nagarani and Sarojamma^[7] have analyzed the pulsatile flow of the blood through a stenosed artery under the effect of body acceleration using the Casson fluid model. They found that the yield stress of fluid and the body acceleration strongly influence the flow rate in a stenosed artery. The effects of stenosis length on resistance to flow of the blood considered as a Bingham fluid, through an artery with multiple stenoses have been studied by Yadav and Kumar^[8]. They obtained that the flow resistance decreases if the shape parameter increases and the flow resistance increases if increasing the height/length of stenosis. Srikanth and Tedesse^[9] have studied the pulsatile blood flow in a multiple stenotic artery using the micropolar fluid model and the couple-stress fluid model. Siddiqui et al.^[10] have considered the blood flow through a stenosed artery with body acceleration and oscillating pressure gradient, using the Bingham plastic fluid model. They obtained analytic solution to the blood velocity, flow rate, shear stress, and effective blood viscosity. The study reveals that the blood velocity and the flow rate increase with the body acceleration, while the effective blood viscosity and shear stress decrease. Applications to the targeting of a magnetic drug are an important subject of research in medical treatment methods for the effective targeting and delivery of drugs to a specific target area^[11-13]. Furlani and Ng^[14] have studied a mathematical model for transport of the therapeutic magnetic nanoparticles in the human microvasculature. Furlani and Furlani^[15], Sharma et al.^[16] have studied the motion of magnetic nanoparticles in blood vessels under the influence of magnetic field. Based on the magneto-hydrodynamic approach, Sharma et al.^[17] analyzed the flow of blood along with magnetic particles in a cylindrical tube under effects of the magnetic field and pressure waveform. Nehad et al.^[18] extended the work of Sharma^[17] to a model with time-fractional derivatives of Caputo type. Other interesting topics were studied in Refs. ^[19]-^[25].

In the present paper, we consider a blood model along with magnetic particles, starting from the model studied by Siddiqui et al.^[10], in which the blood is considered as a non-Newtonian Bingham plastic fluid. In their paper, Siddiqui and his collaborators have studied the effects of the body acceleration, oscillating pressure gradient along the flow direction and of the slip velocity on the fluid velocity and on the volumetric flow rate. They have not considered the influence of the external magnetic field. Also, they determined only the approximate solution under the assumption of small values of the Womersley parameter, α.

The aim of this paper is to study the blood flow along with magnetic particles through an arterial stenosis under the influence of a magnetic field perpendicular to the flow direction, an oscillating pressure waveform in the axial direction and the body acceleration. We assume that the blood is flowing in the axial direction and the magnetic particles are uniformly distributed throughout the blood. Using suitable non-dimensional variables, we have formulated the dimensionless initial-boundary value problem which governs the flow. Approximate solutions for the axial fluid velocity, particles velocity, and shear stress are obtained for small values of the Womersley parameter. In order to eliminate this restrictive condition, we have determined an analytical solution using the Laplace and finite Hankel transforms. These analytical solutions are new in the literature and can be used to study the fluid flow parameters for any value of the Womersley parameter.

The influence of magnetic field on the blood velocity and the shear stress was numerically analyzed using the MATHCAD software. We found that the flow parameters through the stenotic arteries are significantly disturbed compared to flow through the arteries without stenosis. In the non-stenosed area the blood flows with constant velocity. The blood velocity slightly increases at the inlet of the stenosed area, then increases considerably and reaches its maximum value in the stenosis throat. It is obtained that, the axial velocity has a considerable variation in magnitude when the applied magnetic field is stronger. For the variation of the magnetic field intensity, the magnitude of maximum value of the fluid velocity becomes higher in the case of weak magnetic fields. This behavior is due to the Lorentz's force which opposes the motion of an electrically conducting fluid. The effect of externally magnetic field is to decelerate the flow of blood. The shear stress consistently decreases in the presence of a magnetic field with increasing intensity. The study of the shear stress distribution plays an important role, because, the deterioration of the arterial wall is related to the generation of tension on the arterial walls.

2 Mathematical model formulation

We consider the pulsatile blood flow along with magnetic particles through a stenosed artery with slip velocity at the constricted wall. The blood is considered as a non-Newtonian fluid of Bingham plastic model^{[10, 17, 26-28]}, in the presence of an applied magnetic field, an oscillating pressure gradient in the axial direction, and periodic body acceleration. The magnetic particles are flowing along the axis of the artery and are uniformly distributed throughout in the blood.

2.1 Model equations

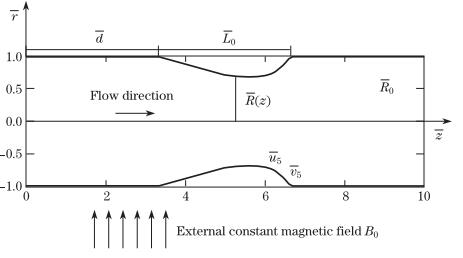

We suppose that the stenosis of the arterial wall (see Fig. 1) is a function of the axial coordinate z, given by the following equation (see Siddiqui et al.^[10]):

(1)

where R(z) is the radius of the artery in the stenosed region, R(0)=R₀ is the radius of the normal artery, L₀ is the length of the stenosis, d is the stenosis location, and is the maximum height of the stenosis at such that .

The model for the blood motion consists of Navier-Stokes equations, the constitutive equations of the Bingham plastic fluid, and the Maxwell equations of the magnetic field is as follows:

(2)

where B is the magnetic flux intensity, μ₀ is the magnetic permeability, E is the electric field intensity, and J is the current density given by

(3)

σ is the electrical conductivity, and v is the velocity field.

The electromagnetic body force F_em is defined as

where k is the unite vector of the z-direction, and v=u(r, t)k is the axial velocity of the blood. The electromagnetic body force F_em is inserted in the momentum equation (5).

Under the assumption that the ratio of the maximum height of the stenosis and the radius of the non-stenotic region, respectively, the ratio of the radius of non-stenotic region and the length of stenosis are much smaller than unity, the governing equation of motion and stress tensor are given by Ref.[23]:

Momentum equation

(5)

The constitutive Bingham plastic model stress tensor τ of the forms^[10]

(6)

(7)

where u is the axial velocity of blood, v is the velocity of particles, t is the time, p is the pressure, τ is the shear stress, G(t) is the body acceleration, B₀ is the externally applied constant magnetic field, τ_y is the yield stress, ρ is the density of blood, μ is the dynamic viscosity of the blood, K is the Stokes constant, N is the number of magnetic particles per unit volume, and is the interaction between motion of blood and magnetic particles. We considered the Reynolds number of the relative velocity is small; therefore the force between blood and magnetic particles is proportional to the relative velocity.

The periodic body acceleration G(t) and pressure gradient for t > 0, which appears in (5), have the expression of the following forms^[10]:

(8)

(9)

where is the frequency, f_b is the pulse rate frequency, φ is the lead angle of the body acceleration with respect to the pressure gradient, is the heart pressure frequency, f_p is the pulse rate frequency, A₀ is the amplitude of the steady state pressure gradient, and A₁ is the amplitude of the oscillating pressure gradient.

The motion of nanoparticles in the vascular system is governed by a number of forces^[16]. In the current investigation, we consider the fluidic force and the unsteady flow analysis are implemented. Therefore, the motion of magnetic single particle is governed by Newton's law for dynamic of particle motion

(10)

where M is the mass of the single nanoparticles and ΣF_ext=F_m + F_b + F_blood represents all the external forces exerted on the particle from which F_m is the magnetic force, F_b is the buoyancy force, and F_blood is the fluidic force.

The fluidic force experienced by a particle, assuming a Reynolds number ℜ≤ 1, is predicted using Stokes's law for viscous drag on a sphere

(11)

where E_{hyd, p} is the effective hydrodynamic radius of the particle, v is the particle velocity, the -sign indicates that the fluidic force acts opposite to the direction of the particles motion. We predict particle motion when only the force on the particle is fluidic and no buoyancy force

(12)

where K=6πμE_{hyd, p} is the Stokes constant.

2.2 Initial and boundary conditions

For the proposed problem, we consider the following initial and boundary condition:

(13)

(14)

(15)

where u_s, v_s are the slip velocities at the stenotic walls (see Fig. 1).

The dimensionless forms of the governing equations are obtained by considering the following dimensionless variables:

(16)

(5), (12), (6), and (7) become

(17)

(18)

(19)

(20)

The dimensionless initial and boundary conditions are

(21)

(22)

(23)

where , α is the Womersley frequency parameter, is the Hartmann number, is the particle concentration parameter, is the particle mass parameter, and ,

It is important to point out that, if the particle concentration parameter is zero (R₁=0) and no magnetic field effect (Ha=0), then (17) represents the classical model which was given by Ref.[10].

3 Solution technique

Let the blood velocity u, the magnetic particles velocity v, and the shear stress τ be expressed in the forms

(24)

(25)

(26)

Substituting u, v, and τ from (24)-(26) into (17)-(19) and equating the coefficients of α⁰ and α², respectively, we obtain

(27)

(28)

(29)

and

(30)

(31)

(32)

Substituting (28) and (29) into (27), we obtain

(33)

Making the change of function

(34)

(33) becomes

(35)

We seek the solution of (35) in the form of power series as

(36)

It follows that, the general terms for C_2n+1 and C_2n+2 can be immediately obtained, respectively as:

(37)

(38)

The function F₀(r, z, t) is expressed as follows:

(39)

which can be written in the simpler form

(40)

The solution u₀ can be expressed as

(41)

Using the boundary condition u₀=u_s at r=R(z), we obtain

(42)

with and I₀ is the modified Bessel function of order zero.

The solution of v₀ and τ₀ can be readily expressed as

(43)

(44)

Following the same procedure for obtaining u₀, v₀, and τ₀, u₁, v₁, and τ₁ can be achieved similarly.

Substituting (31) and (32) into (30), we obtain

(45)

where

(46)

The solution of the problem (45), (46) with the boundary condition u₁(R(z), z, t)=0 is

(47)

The solutions of v₁ and τ₁ are immediately as follows:

(48)

The above obtained solution represents an approximate solution, and it was determined under assumption that the Womersley number α has small values. This is a very restrictive condition. In order to have a more general solution, we have determined an analytical solution by means of the integral transform method (Laplace and finite Hankel transforms).

Applying the Laplace transform, with respect to the time variable t, to (17), (18), then applying the finite Hankel transform of order zero, with respect to the radial variable r and applying the inverse transforms we have the velocity u(z, r, t) in the following form:

(49)

where

(50)

(51)

(52)

(53)

(54)

and r_n(z) are the positive roots of the transcendental equation J₀(R(z)r_n)=0.

4 Results and discussion

In this paper, we have investigated the mathematical model that represents non-Newtonian flow of the blood through a stenosed artery, in the presence of an external magnetic field perpendicular to the flow direction. Periodic body acceleration and an oscillating pressure gradient along the flow direction are considered by the function f(t), periodic in time (see Fig. 2). Under assumption of small values of the Womersley number, the approximate solutions to the axial velocity of fluid and suspended particles as well as to the shear stress were determined. In order to obtain information regarding the flow parameters, we carried out numerical calculations using the software MATHCAD. The computed results are exhibited through Figs. 3-5, in order to have their quantitative estimates. The profiles of axial fluid velocity and of the shear stress were plotted versus axial z-coordinate, for different values of the radial coordinate r (few coaxial fluid layers) and for different values of the time t or, of the Hartmann number Ha. For numerical simulations we used the following values for the system parameters^{[8, 10]}:

Function f(t) has the expression

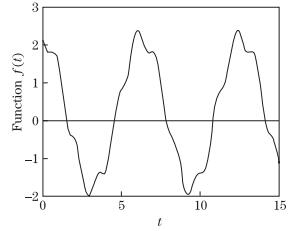

The diagram of the pulsating function f(t) is sketched in Fig. 2. In the numerical calculation, we used for the time t values t=1 and t=4. The first value corresponds to the descending branch of the diagram, respectively; the second value corresponds to the ascending branch of the diagram plotted in Fig. 2.

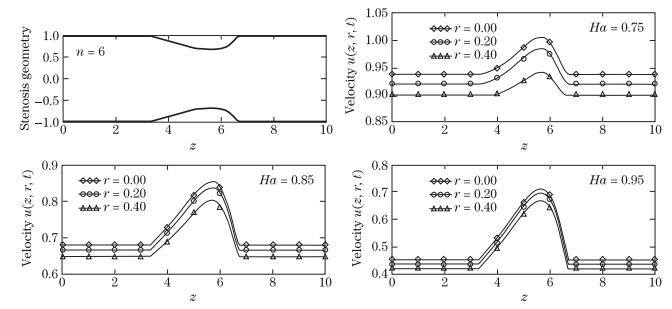

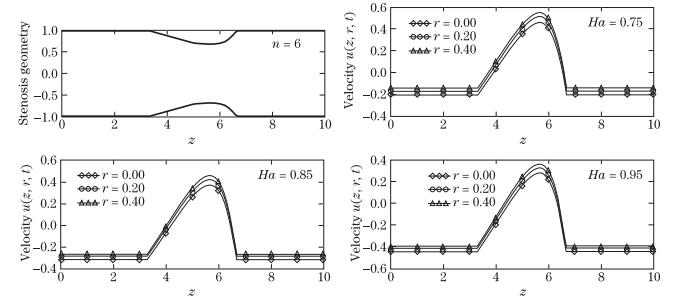

Figures 3 and 4 show the variation of dimensionless axial velocity with the axial coordinate z, for different values of the Hartman number and time t. As we expected, in the absence of stenosis, the axial blood velocity is constant at each instant t and in each circular fluid layer. In the stenosed area of the circular tube, the fluid velocity has a strong variation, namely, the axial fluid velocity increases. The stenosis height affects the flow velocity. The fluid velocity increases slightly in the stenotic area but, increases considerable and reaches its maximum there where the stenosis height is maximum, i.e., in the area where the orifice of flowing has the smallest diameter. One may, also, observe from these figures that when the Hartman number increases (the applied magnetic field is stronger), the axial velocity has a considerable variation in magnitude. For the variation of the magnetic field intensity, the magnitude of the maximum value of the fluid velocity becomes higher in the case of lower values of the Hartman number. Therefore, in the case of weak magnetic fields. This behavior is due to the Lorentz's force which opposes the motion of an electrically conducting fluid. The effect of externally applied transverse magnetic field is to decelerate the flow of blood.

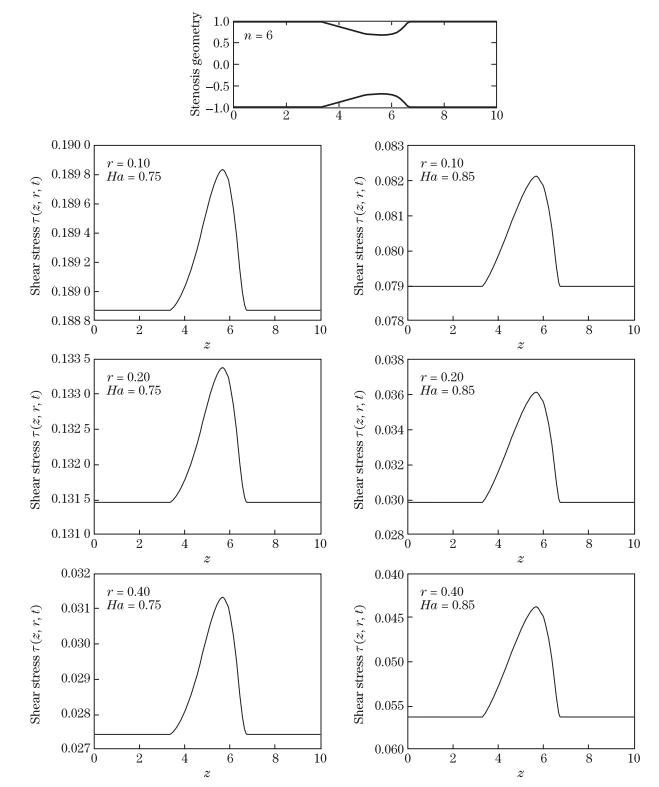

Figure 5 exhibits how the shear stress is perturbed at the different Hartman numbers Ha, different radial positions and also, at different axial positions of the stenosed artery. It is observed from Fig. 5 that, the shear stress consistently decreases in the presence of a magnetic field with increasing intensity. The peak stress occurs at the throat of the stenosis. The shear stress distribution plays an important role, because, the deterioration of the arterial wall is related to the generation of tension on the arterial walls.

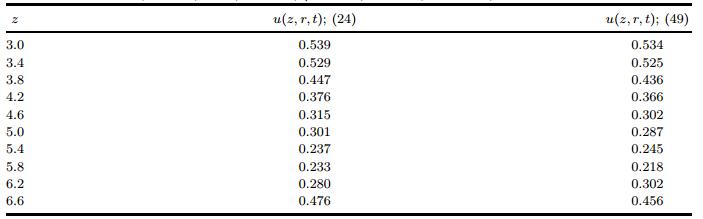

Obviously, (24) is an approximate solution to fluid velocity and it can be used only for small values of the Womersley number α. The solution given by (49) is true for all values of the parameter α, and therefore it is more suitable for proposed problem. However, from Table 1 it is observed that an acceptable agreement was found between numerical results to both solutions.

5 Conclusions

In this research, we formulated a mathematical model describing pulsating blood flow along with magnetic particles through stenosed artery with applied magnetic field, oscillating pressure gradient, external body acceleration, and slip velocity. The governing coupled flow equations for both blood and magnetic particles are solved analytically and simulated on MATHCAD software. The main results of the current study are summarized as follows:

(ⅰ) The blood velocity and magnetic particles velocity can be controlled by adjusting the magnetic parameter.

(ⅱ) The blood flow is constant with respect to the axial coordinate z, in the absence of stenosis.

(ⅲ) In the stenosed area of the artery the blood velocity has a strong variation.

(ⅳ) The shear stress has variation from a constant in the area without stenosis and much higher in the layers located close to the longitudinal axis of the artery

(ⅴ) The peak velocity and peak shear stress occur at the throat of the stenosis.

Acknowledgements Authors are grateful to reviewers for their observations and suggestions that led to the paper improvement. The first author is grateful to Abdus Salam School of Mathematical Sciences, Lahore for support in the scientific research.
