Dynamic and electrical responses of a curved sandwich beam with glass reinforced laminate layers and a pliable core in the presence of a piezoelectric layer under low-velocity impact

doi:10.1007/s10483-024-3074-6

摘要/Abstract

Abstract:

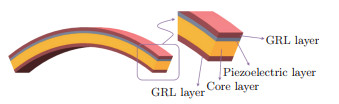

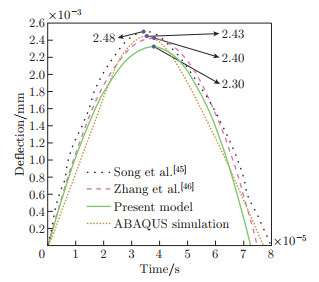

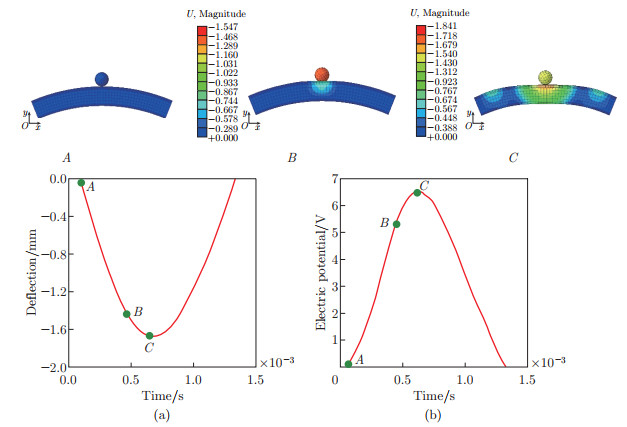

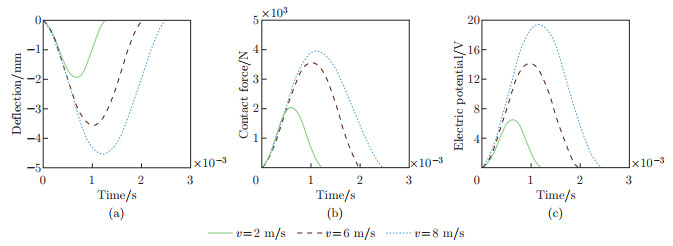

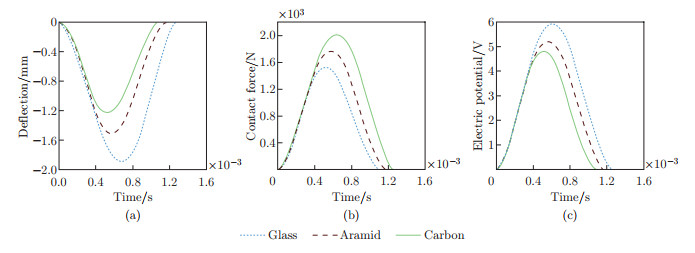

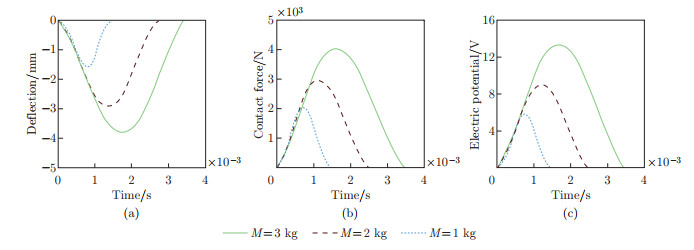

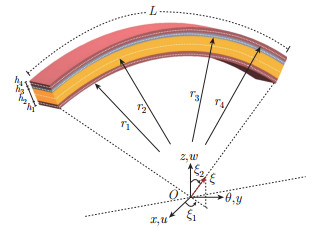

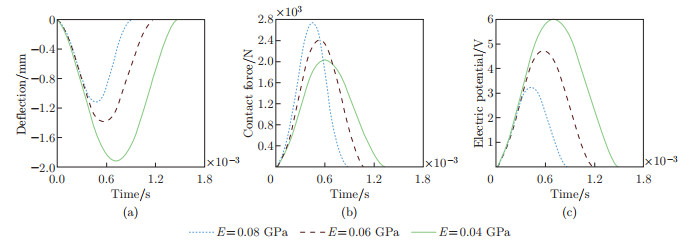

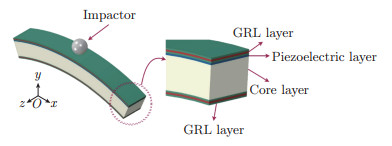

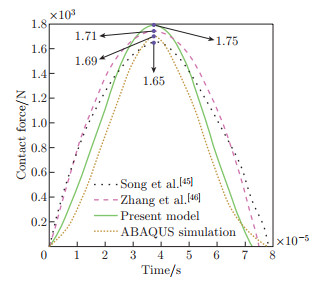

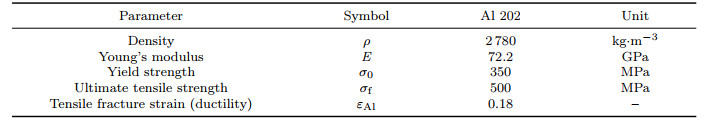

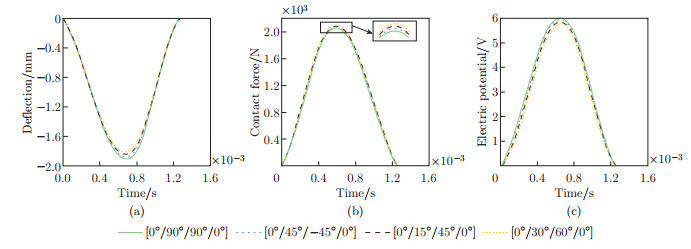

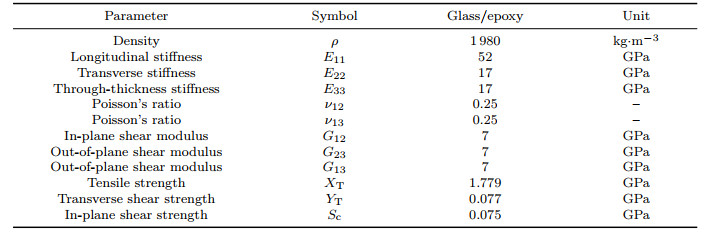

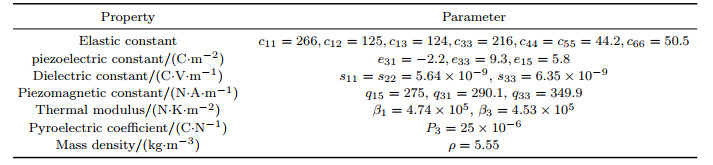

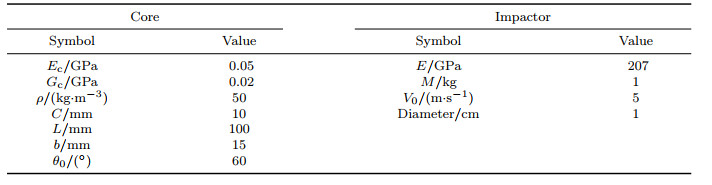

The dynamic responses and generated voltage in a curved sandwich beam with glass reinforced laminate (GRL) layers and a pliable core in the presence of a piezoelectric layer under low-velocity impact (LVI) are investigated. The current study aims to carry out a dynamic analysis on the sandwich beam when the impactor hits the top face sheet with an initial velocity. For the layer analysis, the high-order shear deformation theory (HSDT) and Frostig's second model for the displacement fields of the core layer are used. The classical non-adhesive elastic contact theory and Hunter's principle are used to calculate the dynamic responses in terms of time. In order to validate the analytical method, the outcomes of the current investigation are compared with those gained by the experimental tests carried out by other researchers for a rectangular composite plate subject to the LVI. Finite element (FE) simulations are conducted by means of the ABAQUS software. The effects of the parameters such as foam modulus, layer material, fiber angle, impactor mass, and its velocity on the generated voltage are reviewed.

Key words: analytical model, piezoelectric layer, curved sandwich beam, glass reinforced laminate (GRL), pliable core, low-velocity impact (LVI), classical non-adhesive elastic contact theory

中图分类号:

34A25
74F15

. [J]. Applied Mathematics and Mechanics (English Edition), 2024, 45(1): 155-178.

N. SHAHVEISI, S. FELI. Dynamic and electrical responses of a curved sandwich beam with glass reinforced laminate layers and a pliable core in the presence of a piezoelectric layer under low-velocity impact[J]. Applied Mathematics and Mechanics (English Edition), 2024, 45(1): 155-178.
