Abstract:

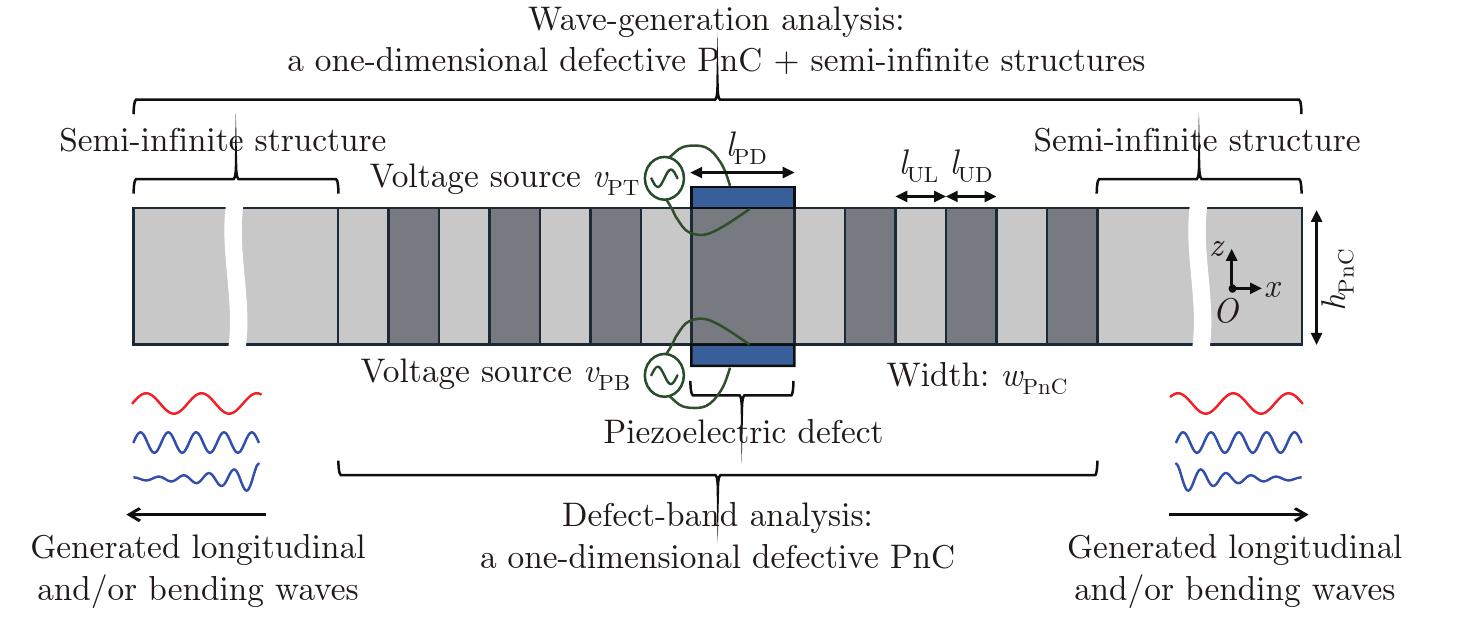

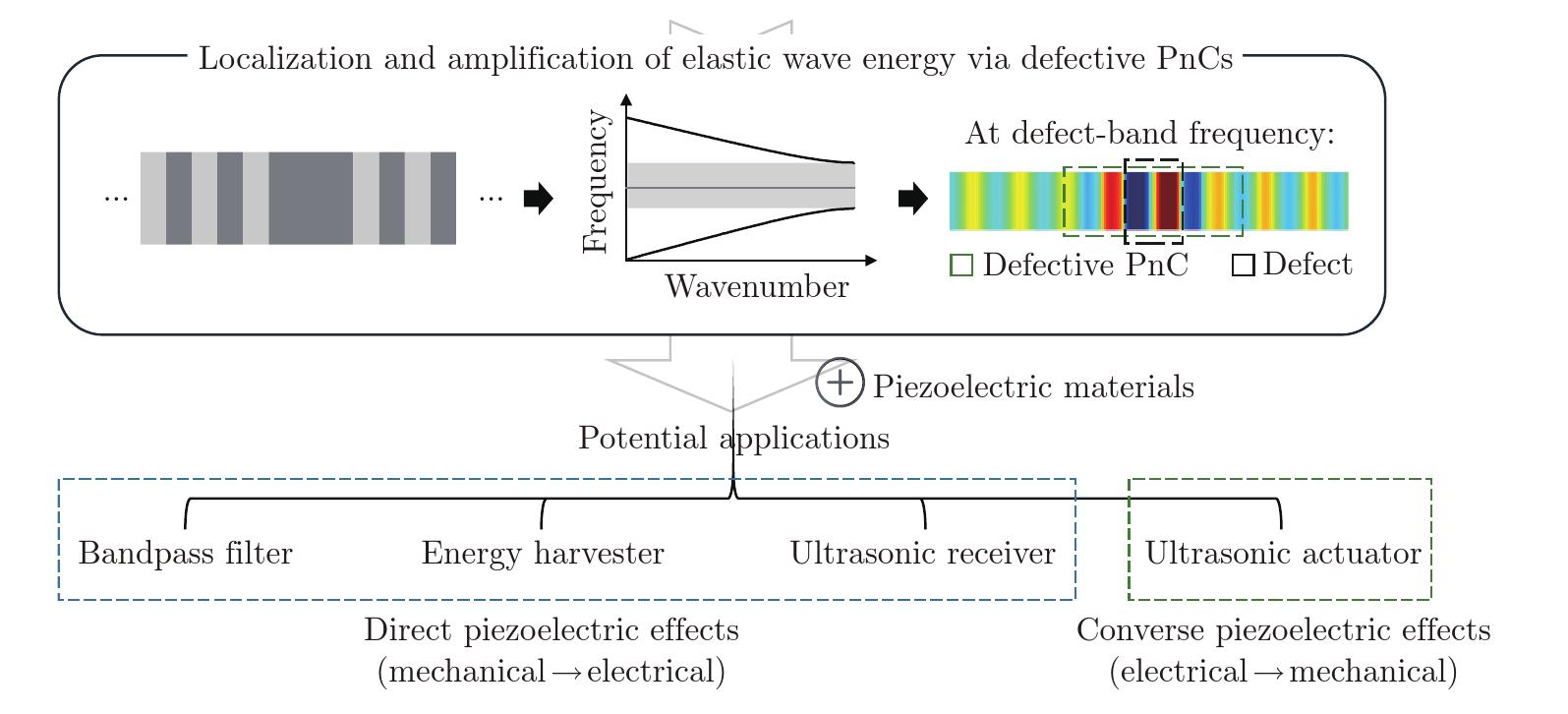

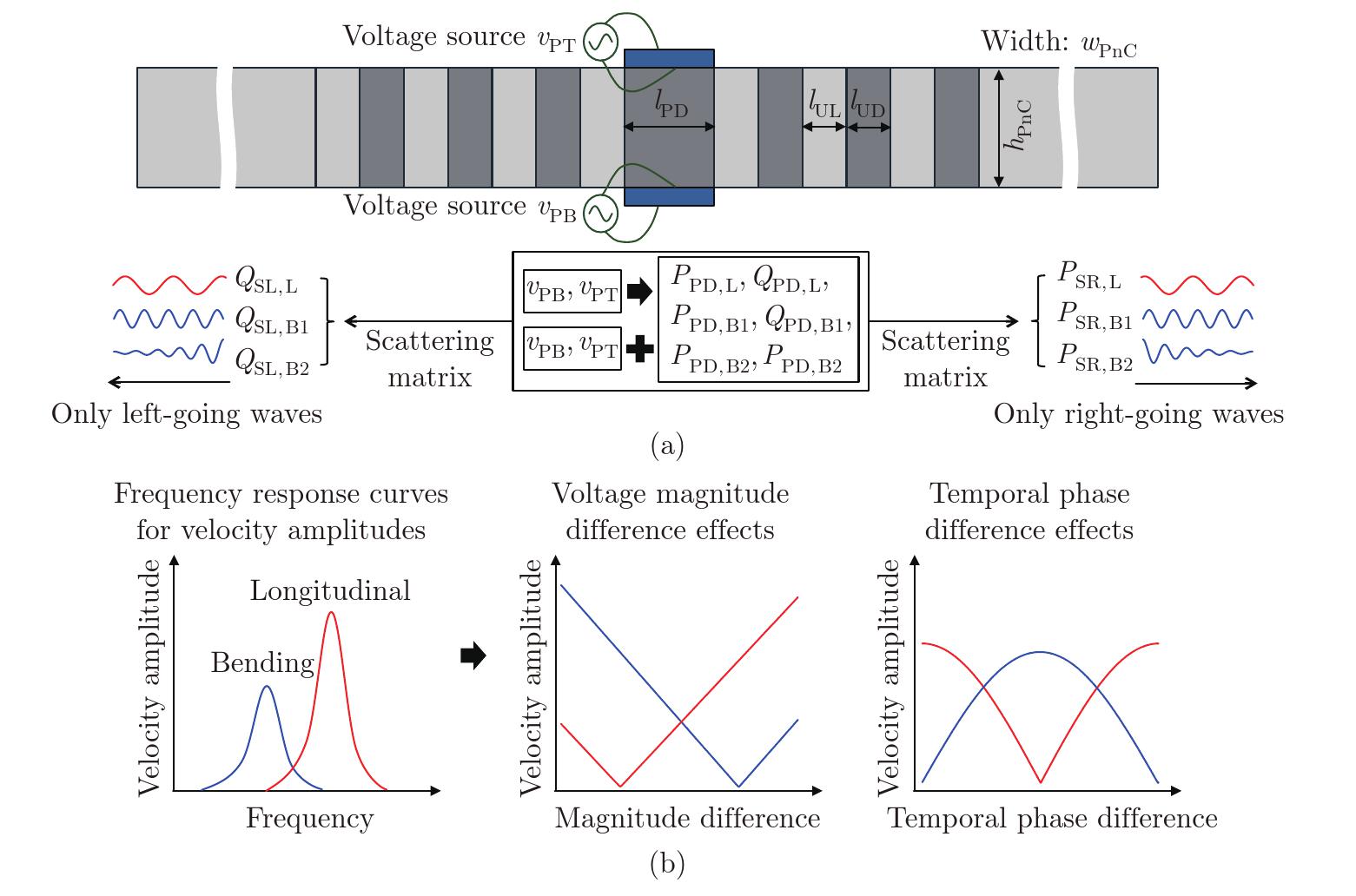

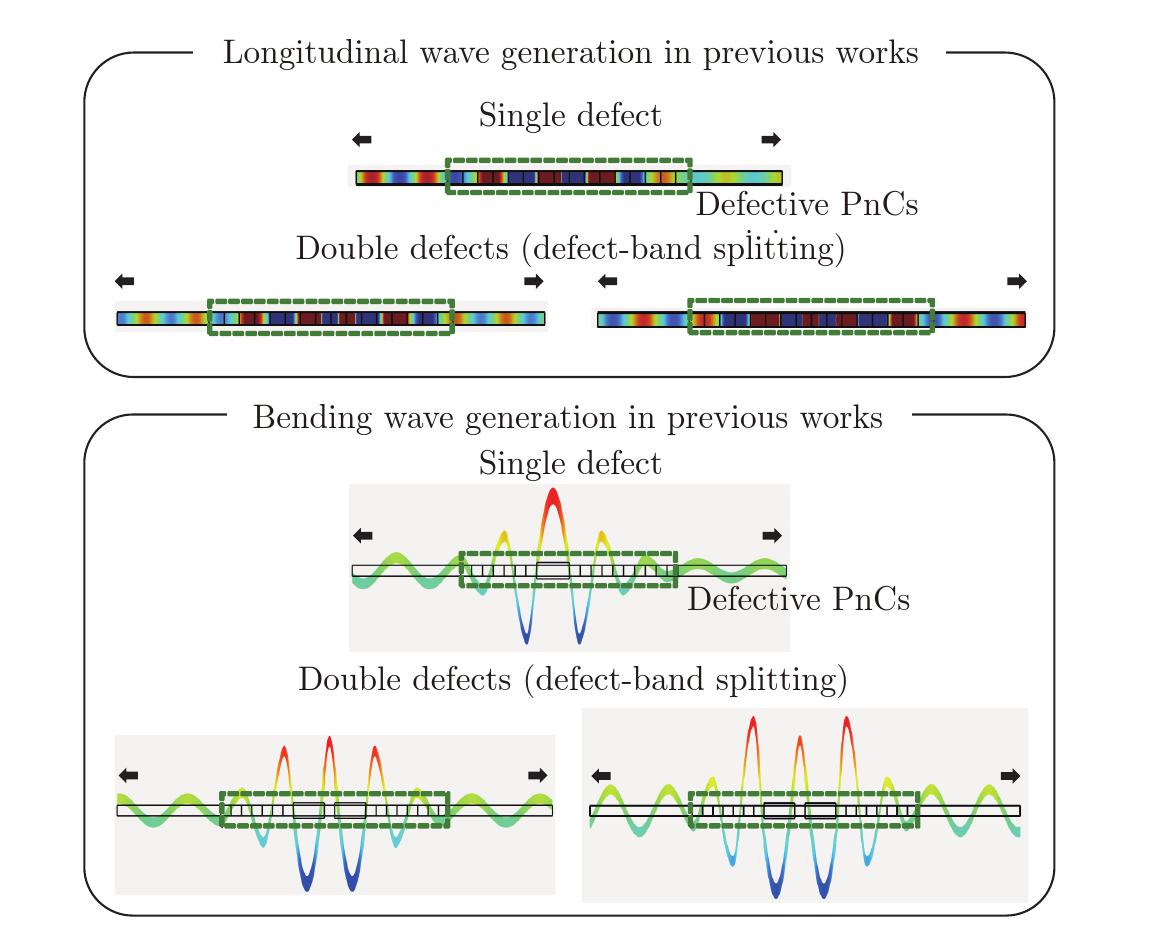

Defective phononic crystals (PnCs) have enabled spatial localization and quantitative amplification of elastic wave energy. Most previous research has focused on applications such as narrow-bandpass filters, ultrasonic sensors, and piezoelectric energy harvesters, typically operating under the assumption of an external elastic wave incidence. Recently, a novel approach that uses defective PnCs as ultrasonic actuators to generate amplified waves has emerged. However, the existing studies are limited to the generation of either longitudinal or bending waves, with no research addressing the concurrent generation of both. Hence, this paper proposes a straightforward methodology for the concurrent generation and amplification of both wave types utilizing defect modes at independent defect-band frequencies. Bimorph piezoelectric elements are attached to the defect, with each element connected to independent external voltage sources. By precisely adjusting the magnitude and temporal phase differences between the voltage sources, concurrently amplified wave generation is achieved. The paper highlights the advantages of the proposed analytical model. This model is both computationally time-efficient and accurate, in comparison with the COMSOL simulation results. For instance, in case studies, the analytical model reduces the computational time from one hour to mere seconds, while maintaining acceptable error rates of 1% in peak frequencies. This concurrent wave-generation methodology opens new avenues for applications in rotating machinery fault diagnosis, structural health monitoring, and medical imaging.

Key words: phononic crystal (PnC), defect, concurrent generation, piezoelectric, ultrasonic actuator
