Anisotropic concurrent coupled atomistic and discrete dislocation for partial dislocations in FCC materials

doi:10.1007/s10483-025-3275-6

摘要/Abstract

Abstract:

Spurious forces are a significant challenge for multi-scale methods, e.g., the coupled atomistic/discrete dislocation (CADD) method. The assumption of isotropic matter in the continuum domain is a critical factor leading to such forces. This study aims to minimize spurious forces, ensuring that atomic dislocations experience more precise forces from the continuum domain. The authors have already implemented this idea using a simplified and unrealistic slipping system. To create a comprehensive and realistic model, this paper considers all possible slip systems in the face center cubic (FCC) lattice structure, and derives the required relationships for the displacement fields. An anisotropic version of the three-dimensional CADD (CADD3D) method is presented, which generates the anisotropic displacement fields for the partial dislocations in all the twelve slip systems of the FCC lattice structure. These displacement fields are tested for the most probable slip systems of aluminum, nickel, and copper with different anisotropic levels. Implementing these anisotropic displacement fields significantly reduces the spurious forces on the slip systems of FCC materials. This improvement is particularly pronounced at greater distances from the interface and in more anisotropic materials. Furthermore, the anisotropic CADD3D method enhances the spurious stress difference between the slip systems, particularly for materials with higher anisotropy.

Key words: multi-scale method, anisotropic coupled atomistic/discrete dislocation (CADD), spurious force, partial dislocation, face center cubic (FCC) material

中图分类号:

O302

. [J]. Applied Mathematics and Mechanics (English Edition), 2025, 46(7): 1365-1382.

S. FORGHANI, N. KHAJI. Anisotropic concurrent coupled atomistic and discrete dislocation for partial dislocations in FCC materials[J]. Applied Mathematics and Mechanics (English Edition), 2025, 46(7): 1365-1382.

图/表 19

Number	Step		MD	DDD	Linear elasticity
1	Predict in MD and update segments in DDD		Predict	Update segments
		Input	$f a k, r a k, v a k, ∀ a ∈ Ω A$	$f d k, ∀ d ∈ Ω C$ $s e k, ∀ e ∈ γ c$
		Output	$r a k + 1, ∀ a ∈ Ω A$ $v a k + 1 / 2, ∀ a ∈ Ω A$ $u n k + 1, ∀ n ∈ ∂ Ω I$	$s e k + 1, ∀ e ∈ γ c$
2	Detect atomic dislocations in MD		Detect atomic dislocations
		Input	$r a k + 1, ∀ a ∈ Ω A$
		Output	$s e k + 1, ∀ a ∈ γ A D$
3	Compute $* ˜$ contributions by DDD			Compute $* ˜$ contributions
		Input		$s e k, ∀ e$ $σ ˜ n k + 1, ∀ n ∈ ∂ Ω t$
		Output		$u ˜ n k + 1, ∀ n ∈ ∂ Ω I ∪ ∂ Ω u$ $u ˜ a k + 1, ∀ a ∈ ∂ Ω P$
4	Compute boundary corrections $*^$				Compute boundary corrections $*^$
		Input			$σ ˜ n k + 1, ∀ n ∈ ∂ Ω t$ $u ˜ n k + 1, u n k + 1, ∀ n ∈ ∂ Ω I ∪ ∂ Ω u$
		Output			$t^n k + 1, ∀ n ∈ ∂ Ω t$ $u^n k + 1, ∀ n ∈ ∂ Ω I ∪ ∂ Ω u$
5	Solve elasticity by linear elasticity				Solve elasticity
		Input			$t^n k + 1, ∀ n ∈ ∂ Ω t$ $u^n k + 1, ∀ n ∈ ∂ Ω I ∪ ∂ Ω u$
		Output			$σ^d k + 1, ∀ d ∈ N DD$ $u^n k + 1, ∀ n ∈ Ω C$ $u^a k + 1, ∀ a ∈ Ω P$
6	Compute forces by MD and DDD		Compute forces	Compute forces
		Input	$r a k + 1, ∀ a ∈ Ω A$ $u^a k + 1, u ˜ a k + 1, ∀ a ∈ Ω P$	$s e k, ∀ e$ $σ^d k + 1, ∀ d ∈ N DD$
		Output	$f a k + 1, ∀ a ∈ Ω A$	$f d k + 1, ∀ d ∈ N DD$
7	Correct by MD		Correct
		Input	$v a k + 1 / 2, f a k + 1, ∀ a ∈ Ω A$
		Output	$v a k + 1, ∀ a ∈ Ω A$

Material	Elastic constant/GPa			References
Material	$c 11$	$c 12$	$c 44$	References
Aluminum	113.0	61.6	32.0	Ercolessi and Adams (1994)^[44]
Nickel	263.0	154.0	127.0	Sheng et al. (2011)^[45]
Copper	175.0	124.0	79.0	Sheng et al. (2011)^[45]

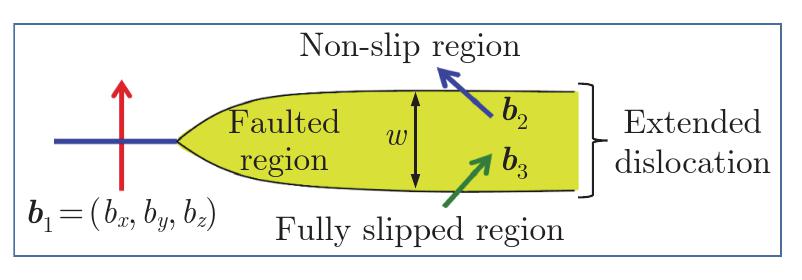

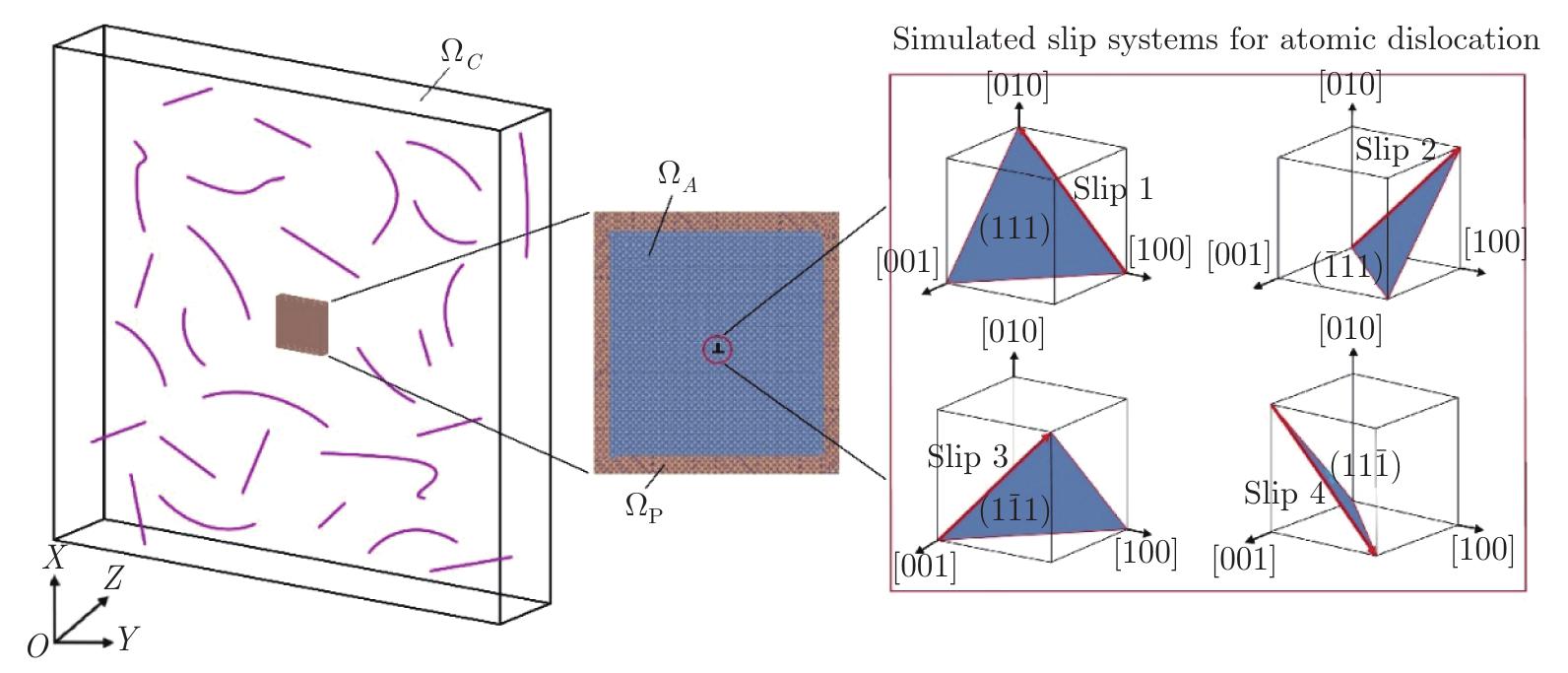

System	Slip plane	Burgers vector $(b)$
1	$(1 1 1)$	$12 [1 1 ¯ 0]$
2	$(1 ¯ 1 1)$	$12 [1 1 0]$
3	$(1 1 ¯ 1)$	$12 [1 1 0]$
4	$(1 1 1 ¯)$	$12 [1 1 ¯ 0]$

参考文献 47

[1]	STEINHAUSER, M. and HIERMAIER, S. A review of computational methods in materials science: examples from shock-wave and polymer physics. International Journal of Molecular Science, 10, 5135–5216 (2009)
[2]	TADMOR, E. B. and MILLER, R. E. Modeling Materials: Continuum, Atomistic and Multiscale Techniques, Cambridge University Press, New York (2011)
[3]	WEINBERGER, C. R. and TUCKER, G. H. Multi-scale Materials Modeling for Nanomechanics, Springer, Switzerland (2016)
[4]	CURTIN, W. A. and MILLER, R. E. Atomistic/continuum coupling in computational materials science. Modelling and Simulation in Materials Science and Engineering, 11, 33–68 (2003)
[5]	ZBIB, H. M. and RUBIA, T. D. A multi-scale model of plasticity. International Journal of Plasticity, 18, 1133–1163 (2002)
[6]	XIA, W., LI, W. K., RAO, J. R., JIANG, Z. Q., JU, J. W. W., and CUI, S. A. The multi-scale damage evolution of nano-modified concrete under the cold region tunnel environment based on micromechanical model. Composite Structures, 351, 118612 (2025)
[7]	NGUYEN, K., ZHANG, M., AMORES, V. J., SANZ, M. A., and MONTÁNS, F. J. Computational modeling of dislocation slip mechanisms in crystal plasticity: a short review. Crystals, 11, 42 (2021)
[8]	FU, P., ZHAO, J., ZHANG, X., MIAO, H., WEN, Z., KANG, G., and KAN, Q. Three-dimensional tractive rolling contact analysis of functionally graded coating-substrate systems with interfacial imperfection and frictional anisotropy. Composite Structures, 307, 116671 (2023)
[9]	TUMMALA, H. 3D Discrete Dislocation Dynamics Simulations of the Role of Interfaces in Confined Materials: Application to Electronic Devices Such as LEDs, Ph. D. dissertation, Université Grenoble Alpes (2016)
[10]	LYU, D. and LI, S. A multiscale dislocation pattern dynamics: towards an atomistic-informed crystal plasticity theory. Journal of the Mechanics and Physics of Solids, 122, 613–632 (2019)
[11]	YUAN, J., HUANG, Y., CHEN, W., PAN, E., and KANG, G. Theory of dislocation loops in multilayered anisotropic solids with magneto-electro-elastic couplings. Journal of the Mechanics and Physics of Solids, 125, 440–471 (2019)
[12]	XU, J. H., ZHANG, Y., ZHANG, Y. Y., SONG, W., XU, H., and ZHAO, Y. S. Meso-FE modelling for homogenization of the nonlinear orthotropic behavior of PTFE-coated fabric based on virtual fiber method. Composite Structures, 338, 118093 (2024)
[13]	PRASTITI, N. G., XU, Y., BALINT, D. S., and DUNNE, F. P. E. Discrete dislocation, crystal plasticity and experimental studies of fatigue crack nucleation in single-crystal nickel. International Journal of Plasticity, 126, 102615 (2020)
[14]	GUO, H., GAO, P., and WANG, X. Integrated multi-scale approach combining global homogenization and local refinement for multifield analysis of high-temperature superconducting composite magnets. Applied Mathematics and Mechanics (English Edition), 45(5), 747–762 (2024) https://doi.org/10.1007/s10483-024-3112-8
[15]	AGARWAL, G. and DONGARE, A. M. Defect and damage evolution during spallation of single crystal Al: comparison between molecular dynamics and quasi-coarse-grained dynamics simulations. Computational Materials Science, 145, 68–79 (2018)
[16]	ANSARI, R., ROUHI, S., and ARYAYI, M. Nanoscale finite element models for vibrations of single-walled carbon nanotubes: atomistic versus continuum. Applied Mathematics and Mechanics (English Edition), 34(10), 1187–1200 (2013) https://doi.org/10.1007/s10483-013-1738-6
[17]	YANG, C., PACHAURY, Y., EL-AZAB, A., and WHARRY, J. Molecular dynamics simulation of vacancy and void effects on strain-induced martensitic transformations in Fe-50 at.% Ni model concentrated solid solution alloy. Scripta Materialia, 209, 114394 (2022)
[18]	ZHU, Y., HU, J., HUANG, S., WANG, J., LUO, G., and SHEN, Q. Molecular dynamics simulation on spallation of [1 1 1] Cu/Ni nano-multilayers: voids evolution under different shock pulse duration. Computational Materials Science, 202, 110923 (2022)
[19]	WU, B., ZHOU, S., and LI, Z. Analytical solution for the stress field of hierarchical defects: multiscale framework and applications. Applied Mathematics and Mechanics (English Edition), 42(2), 183–208 (2021) https://doi.org/10.1007/s10483-021-2673-9
[20]	SILANI, M., TALEBI, H., ZIAEI-RAD, S., KERFRIDEN, P., BORDAS, S. P., and RABCZUK, T. Stochastic modelling of clay/epoxy nanocomposites. Composite Structures, 118, 241–249 (2014)
[21]	KRASNIKOV, V. S., KUKSIN, A. Y., MAYER, A. E., and YANILKIN, A. V. Plastic deformation under high-rate loading: the multiscale approach. Physics of the Solid State, 52, 1386–1396 (2010)
[22]	YANILKIN, A. V., KRASNIKOV, V. S., KUKSIN, A. Y., and MAYER, A. E. Dynamics and kinetics of dislocations in Al and Al-Cu alloy under dynamic loading. International Journal of Plasticity, 55, 94–107 (2014)
[23]	HAN, F., ROTERS, F., and RAABE, D. Microstructure-based multiscale modeling of large strain plastic deformation by coupling a full-field crystal plasticity-spectral solver with an implicit finite element solver. International Journal of Plasticity, 125, 97–117 (2020)
[24]	CHENG, J., HU, X., SUN, X., VIVEK, A., DAEHN, G., and CULLEN, D. Multi-scale characterization and simulation of impact welding between immiscible Mg/steel alloys. Journal of Materials Science and Technology, 59, 149–163 (2020)
[25]	HUANG, M., HUANG, S., LIANG, S., ZHU, Y., and LI, Z. An efficient 2D discrete dislocation dynamics-XFEM coupling framework and its application to polycrystal plasticity. International Journal of Plasticity, 127, 102647 (2020)
[26]	FORGHANI, S. and KHAJI, N. An anisotropic multi-scale method for slipping dislocations. International Journal of Plasticity, 148, 103130 (2022)
[27]	SHILKROT, L. E., MILLER, R. E., and CURTIN, W. A. Multi-scale plasticity modeling: coupled atomistics and discrete dislocation mechanics. Journal of the Mechanics and Physics of Solids, 52, 755–787 (2004)
[28]	DEWALD, M. and CURTIN, W. A. Analysis and minimization of dislocation interactions with atomistic/continuum interfaces. Modelling and Simulation in Materials Science and Engineering, 14, 497–514 (2006)
[29]	TALEBI, H., SILANI, M., and RABCZUK, T. Concurrent multi-scale modeling of three dimensional crack and dislocation propagation. Advances in Engineering Software, 80, 82–92 (2015)
[30]	CURTIN, W. A. and MILLER, R. E. A perspective on atomistic-continuum multiscale modeling. Modelling and Simulation in Materials Science and Engineering, 25, 071004 (2017)
[31]	SHILKROT, L. E., CURTIN, W. A., and MILLER, R. E. A coupled atomistic/continuum model of defects in solids. Journal of the Mechanics and Physics of Solids, 50, 2085–2106 (2002)
[32]	CHO, J., JUNGE, T., MOLINARI, J. F., and ANCIAUX, G. Toward a 3D coupled atomistic and discrete dislocation dynamics simulation: dislocation core structures and Peierls stresses with several character angles in FCC aluminum. Advanced Modeling and Simulation in Engineering Sciences, 2, 1–17 (2015)
[33]	ANCIAUX, G., JUNGE, T., HODAPP, M., CHO, J., MOLINARI, J. F., and CURTIN, W. A. The coupled atomistic/discrete-dislocation method in 3D part I: concept and algorithms. Journal of the Mechanics and Physics of Solids, 118, 152–171 (2018)
[34]	HODAPP, M., ANCIAUX, G., MOLINARI, J. F., and CURTIN, W. A. Coupled atomistic/discrete dislocation method in 3D part II: validation of the method. Journal of the Mechanics and Physics of Solids, 119, 1–19 (2018)
[35]	YIN, J., BARNETT, D. M., and CAI, W. Efficient computation of forces on dislocation segments in anisotropic elasticity. Modelling and Simulation in Materials Science and Engineering, 18, 1–14 (2010)
[36]	PO, G., LAZAR, M., ADMAL, N. C., and GHONIEM, N. M. A non-singular theory of dislocations in anisotropic crystals. International Journal of Plasticity, 103, 1–22 (2017)
[37]	JUNGE, T. Modelling Plasticity in Nanoscale Contact, Ph. D. dissertation, Lausanne, École Polytechnique Fédérale de Lausanne (2014)
[38]	HULL, D. and BACON, D. J. Introduction to Dislocations, Butterworth-Heinemann, Oxford (2011)
[39]	ZHANG, J., ZHANG, H., LI, Q., CHENG, L., YE, H., ZHENG, Y., and LU, J. The physical origin of observed repulsive forces between general dislocations and twin boundaries in FCC metals: an atom-continuum coupling study. Journal of Materials Science and Technology, 109, 221–227 (2022)
[40]	BOLLMANN, W. Crystal Defects and Crystalline Interfaces, Springer-Verlag, Berlin (1970)
[41]	HIRTH, J. P. and LOTHE, J. Theory of Dislocations, Krieger Publishing Company, Florida (1982)
[42]	THOMAS, Y. On the stress-strain relations for cubic crystals. National Academy of Sciences, 55, 235–239 (1966)
[43]	KNOWLES, K. M. and HOWIE, P. R. The directional dependence of elastic stiffness and compliance shear coefficients and shear moduli in cubic materials. Journal of Elasticity, 120, 87–108 (2015)
[44]	ERCOLESSI, F. and ADAMS, J. B. Interatomic potentials from first-principles calculations: the force-matching method. Europhysics Letters, 26, 583–588 (1994)
[45]	SHENG, H. W., KRAMER, M. J., CADIEN, A., FUJITA, T., and CHEN, M. W. Highly optimized embedded-atom-method potentials for fourteen FCC metals. Physical Review B, 83, 134118 (2011)
[46]	KODZHASPIROV, G. E., KITAEVA, D. A., PAZYLOV, S. T., and RUDAEV, Y. I. On anisotropy of mechanical properties of aluminum alloys under high temperature deformation. Materials Physics and Mechanics, 38, 69–75 (2018)
[47]	BLASCHKE, D. N. and SZAJEWSKI, B. A. Line tension of a dislocation moving through an anisotropic crystal. Philosophical Magazine, 98, 2397–2424 (2018)

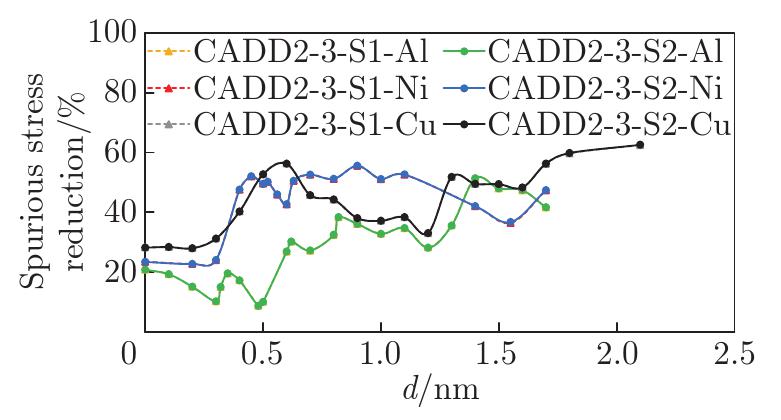

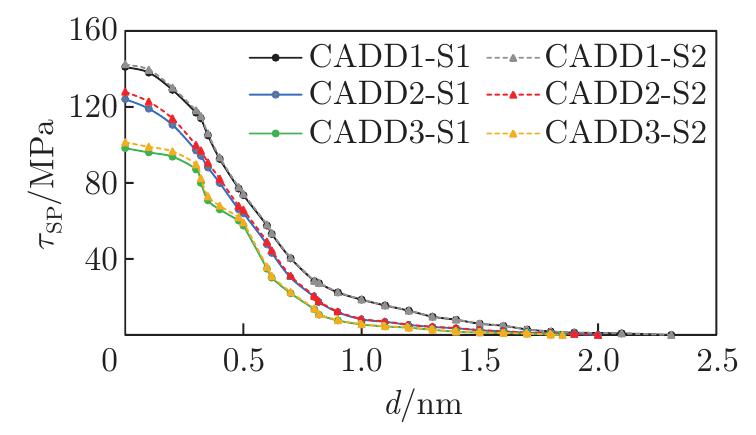

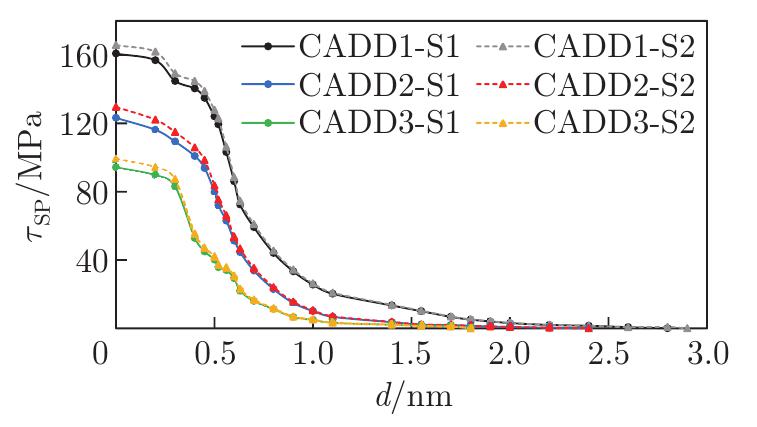

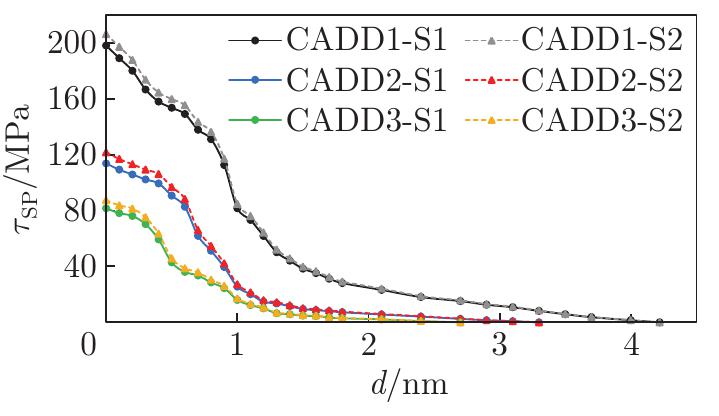

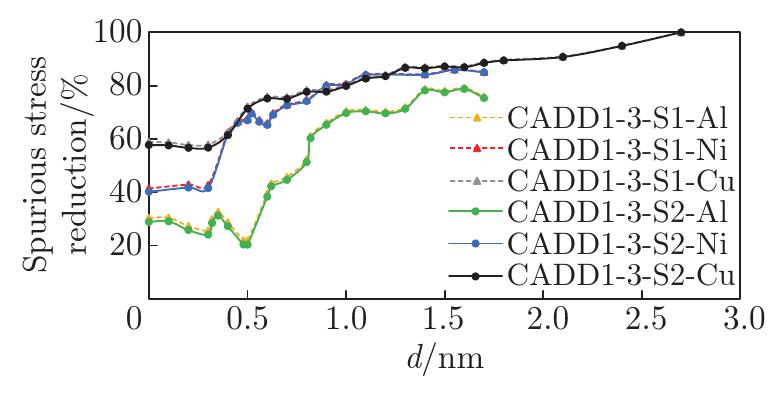

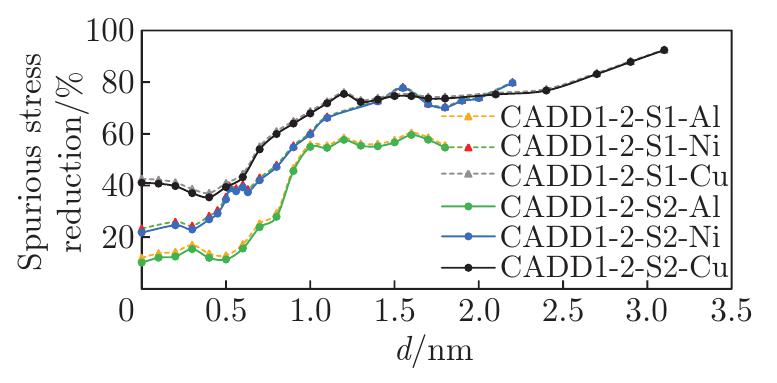

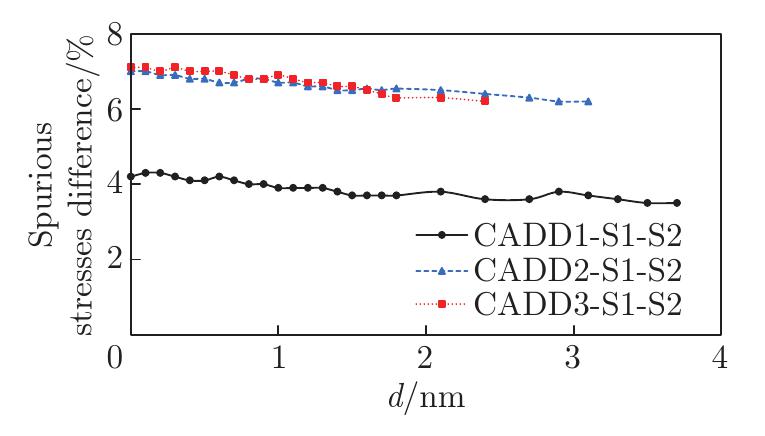

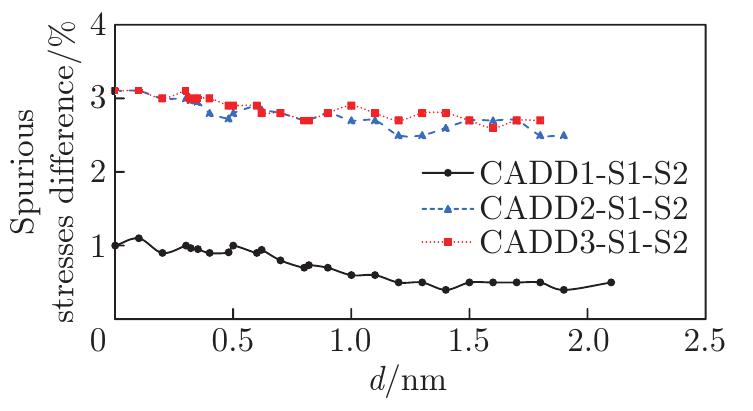

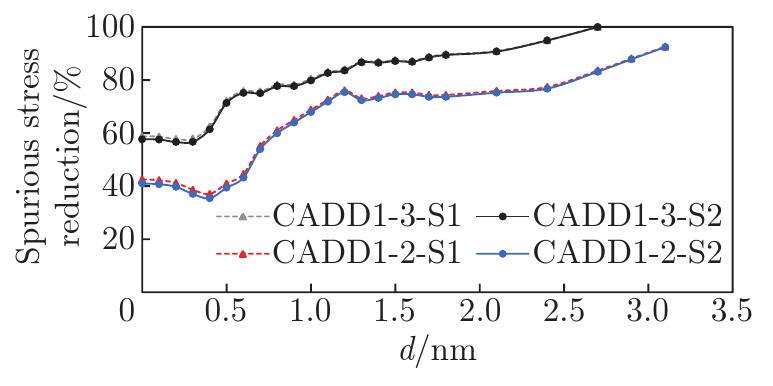

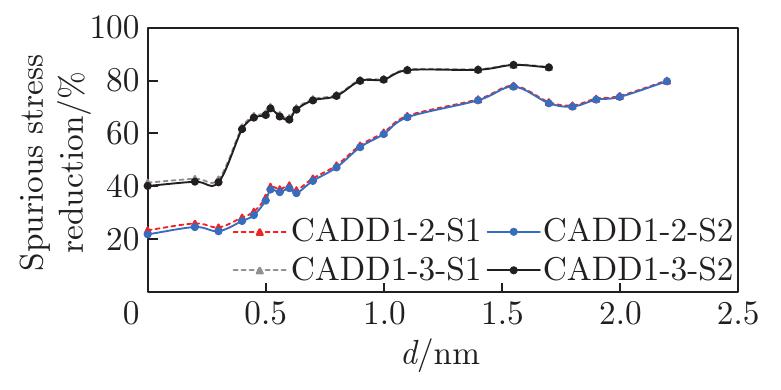

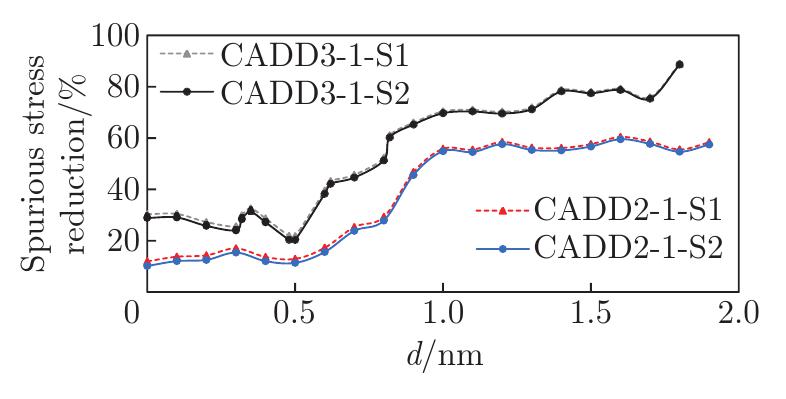

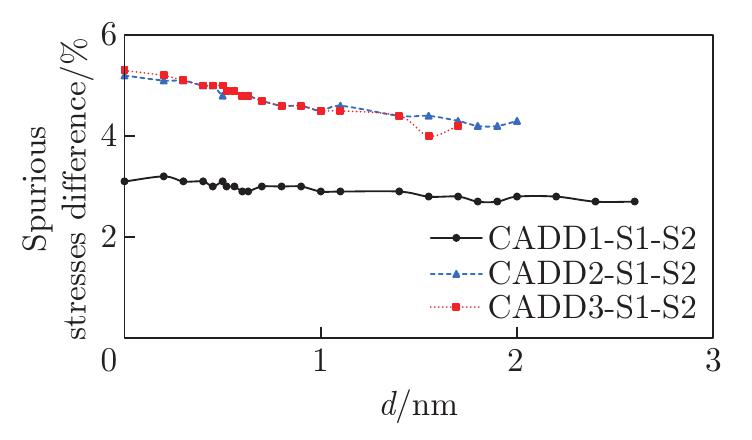

Method	The onset distance of spurious stress/nm
Method	Aluminum	Nickel	Copper
CADD1	2.31	2.80	4.22
CADD2	2.00	2.41	3.31
CADD3	1.85	1.79	2.70

Comparison of methods	The reduction amount of the onset distance
Comparison of methods	Aluminum	Nickel	Copper
CADD2 compared with CADD1	13%	14%	22%
CADD3 compared with CADD1	20%	36%	36%
CADD3 compared with CADD2	7.5%	25%	18%
