Structural optimization for dynamic stability of a plane-grating monochromator

doi:10.1007/s10483-026-3416-6

Applied Mathematics and Mechanics (English Edition) ›› 2026, Vol. 47 ›› Issue (8): 1789-1810.doi: https://doi.org/10.1007/s10483-026-3416-6

收稿日期:2026-02-28 修回日期:2026-05-19 出版日期:2026-07-31 发布日期:2026-07-31

Structural optimization for dynamic stability of a plane-grating monochromator

Guanghui HAN¹, Xinyu LIAN²^,³, Jixia YI¹, Huaxia DENG²^,⁴(), Mengchao MA¹, Xiang ZHONG¹, Xinglong GONG²^,⁵

^1.School of Instrument Science and Opto-electronics Engineering, Hefei University of Technology, Hefei 230009, China
^2.CAS Key Laboratory of Mechanical Behavior and Design of Materials, Department of Modern Mechanics, University of Science and Technology of China, Hefei 230026, China
^3.Anhui Weiwei Rubber Parts Group Co., Ltd., Tongcheng 231460, Anhui Province, China
^4.The State Key Laboratory of Nonlinear Mechanics, Institute of Mechanics, Chinese Academy of Sciences, Beijing 100190, China
^5.State Key Laboratory of Fire Science, University of Science and Technology of China, Hefei 230026, China

Received:2026-02-28 Revised:2026-05-19 Online:2026-07-31 Published:2026-07-31
Contact: Huaxia DENG E-mail:hxdeng@ustc.edu.cn
Supported by:
Project supported by the National Natural Science Foundation of China (Nos. 12372187, 12402228, 12427802, 52321003, and 12132016), the Fundamental Research Funds for the Central Universities of China (Nos. WK2480000010 and WK2090250095), the China Postdoctoral Science Foundation (No. 2024M753103), the Chinese Academy of Sciences (CAS) Talent Introduction Program (No. KJ2090007006), the Anhui Provincial Natural Science Foundation of China (No. 2408085QA014), and the National Synchrotron Radiation Laboratory Joint Foundation of China (Nos. KY2090000901, KY2090000097, and KY2090000124)

摘要/Abstract

Abstract:

A structural optimization framework integrating the receptance method (RM) is developed to enhance the dynamic stability of a plane-grating monochromator (PGM). Three vertical geometric dimensions are selected as physically interpretable design variables. The plane-mirror angular vibration under ambient ground excitation is minimized directly in the geometric design space, so resonance and antiresonance features are modified implicitly, without prescribing modal targets. The meta-model of optimal prognosis (MOP) surrogates, selected using the coefficient of prognosis (CoP), enables global sensitivity analysis (SA) and surrogate-assisted multi-objective evolutionary optimization with a limited number of finite element (FE) evaluations. The SA identifies D₂ as the dominant driver of the mirror angular response, with D₃ providing secondary tuning and D₁ remaining nearly neutral within the investigated range. In the FE simulations, the optimized geometry reduces the peak angular vibration by 19.8% and the root mean square (RMS) angular vibration by 37.5%. Under identical ground microvibration excitations, laser Doppler vibrometer (LDV) measurements show a 22.8% reduction in the RMS. Receptance comparisons further confirm suppressed resonance peaks and a lower high-frequency response envelope after optimization. These results provide a practical and physically transparent method for improving the dynamic stability of complex optical systems.

Key words: receptance method (RM), microvibration, plane-grating monochromator (PGM), multi-objective evolutionary optimization, global sensitivity analysis (SA)

中图分类号:

TH113.1

. [J]. Applied Mathematics and Mechanics (English Edition), 2026, 47(8): 1789-1810.

Guanghui HAN, Xinyu LIAN, Jixia YI, Huaxia DENG, Mengchao MA, Xiang ZHONG, Xinglong GONG. Structural optimization for dynamic stability of a plane-grating monochromator[J]. Applied Mathematics and Mechanics (English Edition), 2026, 47(8): 1789-1810.

图/表 9

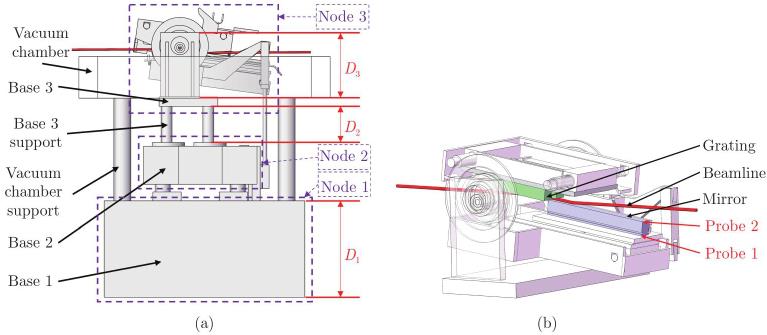

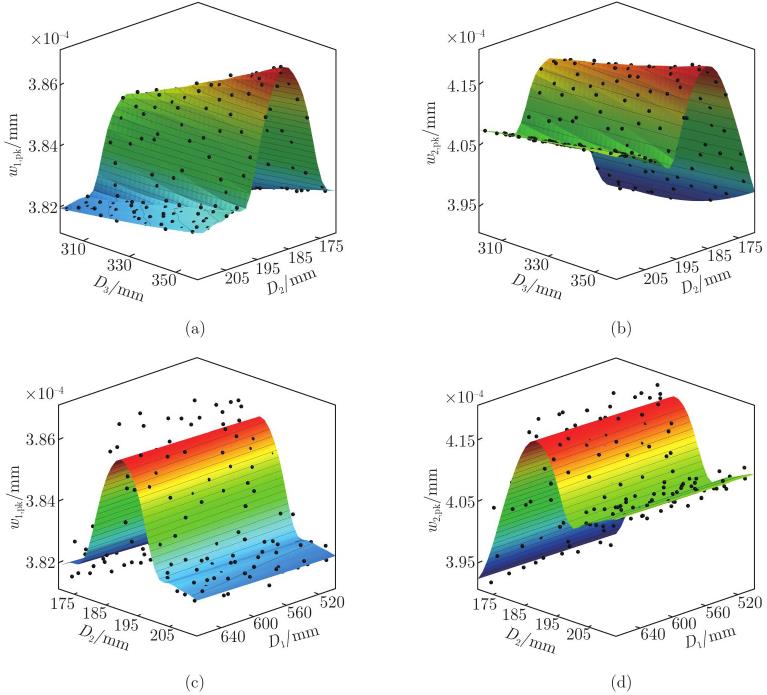

Peak displacement response	$C CoP (D 1)$	$C CoP (D 2)$	$C CoP (D 3)$	Total $C CoP$
$w 1, pk$	0.1%	91.3%	21.0%	99.8%
$w 2, pk$	0.1%	91.8%	16.1%	99.9%

Parameter	IS/mm	VS/mm	Relative change/%
D₁	510	665	$+ 30.39$
D₂	192	172	$− 10.42$
D₃	340	300	$− 11.76$

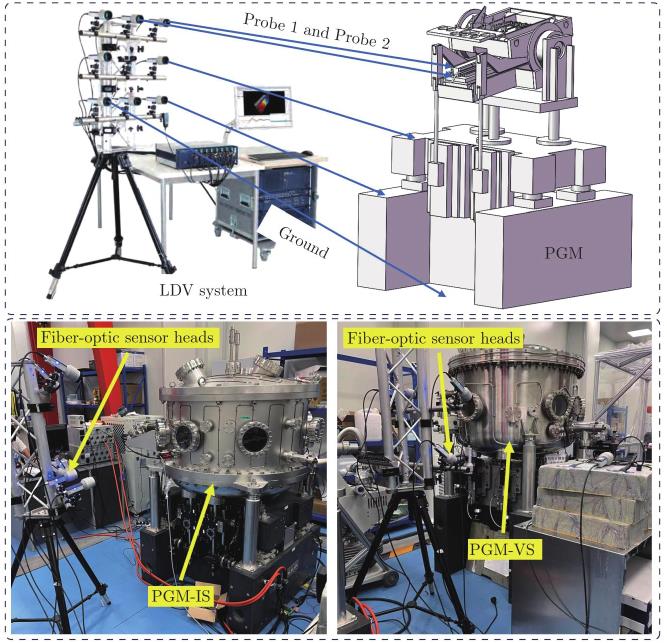

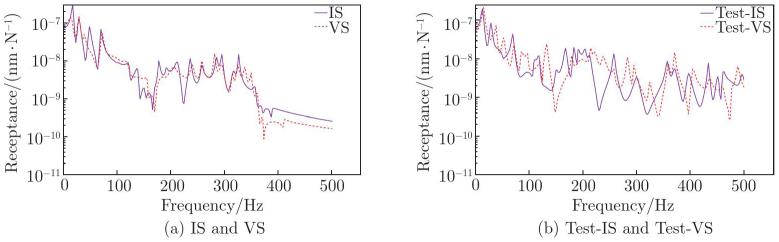

Metrics	Simulation			Experiment
Metrics	Sim-IS	Sim-VS	$R ed$ /%	Test-IS	Test-VS	$R ed$ /%
$w 1,pk$ /nm	368.34	363.96	1.2	416.36	173.33	58.4
$w 2,pk$ /nm	399.91	374.54	6.3	466.63	204.79	56.1

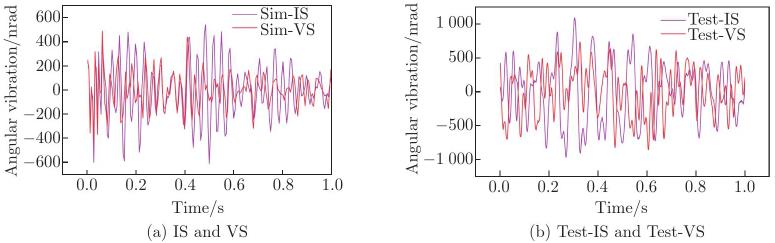

Angle peak/nrad	605.41	485.77	19.8	1 083.79	849.25	21.6
$w 1$ RMS/nm	134.68	134.35	0.2	148.94	71.79	51.8
$w 2$ RMS/nm	139.90	138.29	1.2	158.23	81.82	48.3
Angle RMS/nrad	226.29	141.49	37.5	429.23	331.46	22.8
Here, $R ed$ denotes the percentage reduction of the VS results relative to the IS

[1]	WANG, Z. M., DU, X. W., HU, J., WANG, Q. P., WANG, P., and TANG, Y. G. A wavelength calibration method for variable-included-angle plane grating monochromators with sine drives. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 997, 165150 (2021)
[2]	SUN, Z. H., FENG, G. Y., and LIU, X. S. Construction of Hefei advanced light facility begins. The Innovation, 4(6), 100514 (2023)
[3]	SUN, Z., SHEN, D. W., LUO, Z. L., and YAN, W. S. Hefei Advanced Light Facility: empowering research of correlated electron systems. Acta Physica Sinica, 73(19), 190703 (2024)
[4]	XU, Z. M., YANG, C., and ZHANG, W. Q. Thermal management of the monochromator premirror in beamline FEL-1 at S³FEL. International Communications in Heat and Mass Transfer, 153, 107371 (2024)
[5]	KHAN, A., SHARMA, S., and SMALUK, V. Review of alignment and stability tolerances for advanced light sources. Journal of Physics: Conference Series, 2420, 012055 (2023)
[6]	HE, S. J., YUAN, H. R., WU, T. Y., CHEN, N., ZHANG, X. Y., WANG, Z. Z., LIU, X. R., and LIU, F. Vibrational stability improvement of a mirror system using active mass damping. Journal of Synchrotron Radiation, 31, 1126–1133 (2024)
[7]	XU, Z. L., WANG, Z. M., PENG, Y., CHEN, J., WEI, S., WANG, Q. P., and DU, X. W. Research and development of a high-stability double-crystal monochromator at the Hefei Advanced Light Facility. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 1076, 170457 (2025)
[8]	LAN, L., WANG, N., ZHU, W. Q., JIN, L. M., ZHANG, L., and XUE, S. Research on vibration stability of a mirror bender system for synchrotron radiation. Review of Scientific Instruments, 95, 013101 (2024)
[9]	XU, Z. L., CHEN, J., DU, X. W., PENG, Y., and WANG, Q. P. The design of high stability double crystal monochromator for HALF. Proceedings of the 12th International Conference on Mechanical Engineering Design of Synchrotron Radiation Equipment and Instrumentation, Vol. MEDSI2023, Beijing, 76–78 (2024)
[10]	ZHANG, F., SHAO, S. B., TIAN, Z., XU, M. L., and XIE, S. L. Active-passive hybrid vibration isolation with magnetic negative stiffness isolator based on Maxwell normal stress. Mechanical Systems and Signal Processing, 123, 244–263 (2019)
[11]	JING, Z., KANG, Q., LIU, W., and SUN, J. L. Hybrid active-passive vibration isolation based on the superconducting magnetic levitation: modelling, simulation and validation. Mechanical Systems and Signal Processing, 226, 112358 (2025)
[12]	XU, A. P., XU, Z. B., ZHANG, H., WANG, L. T., and HE, S. An adaptive feed-forward active vibration isolation algorithm for input disturbance unbalanced MIMO systems. Signal Processing, 217, 109346 (2024)
[13]	TU, Q., MA, R. Q., WANG, Q., HUANG, Y. M., SHI, J. L., YUAN, L. Z., LI, J. Y., YANG, K. Y., LI, Y., and TANG, W. Vibration rejection of phased array telescope systems via disturbance-propagation-characteristics-based feedforward control. Applied Optics, 62, 5696–5706 (2023)
[14]	XU, H., LI, X., LI, M., REN, Z., ZHANG, Y., LIU, P., DONG, Y. H., and ZHOU, L. Development of a vibration mode propagation method to perform wave-optics simulation of beamline vibration. Applied Optics, 65, 259–267 (2026)
[15]	XU, Z. L., PENG, Y., WANG, Z. M., WEI, S., DU, X. W., and WANG, Q. P. Vibration stability of an ultra-high-resolution plane grating monochromator at HALF. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 1068, 169780 (2024)
[16]	ZHONG, X., YI, J. X., LIAN, X. Y., DENG, H. X., HAN, G. H., MA, M. C., PENG, Y., WEI, S., and GONG, X. L. Angular vibration analysis of a plane grating monochromator at the Hefei Advanced Light Facility. Theoretical and Applied Mechanics Letters, 15, 100612 (2025)
[17]	WANG, P. Y., BAZAN DA SILVA, M., HAND, M., WANG, H. C., CHANG, P., BEILSTEN-EDMANDS, V., KIM, T. K., LEE, T. L., SAWHNEY, K., and WALTERS, A. C. PGMweb: an online tool for visualizing the X-ray beam path through plane grating monochromators. Journal of Synchrotron Radiation, 32, 261–268 (2025)
[18]	OUYANG, H. J., WEI, X. J., and MOTTERSHEAD, J. E. Structural modification and active vibration control by the receptance method: review and tutorial. Mechanical Systems and Signal Processing, 241, 113532 (2025)
[19]	KYPRIANOU, A., MOTTERSHEAD, J. E., and OUYANG, H. J. Structural modification, part 2: assignment of natural frequencies and antiresonances by an added beam. Journal of Sound and Vibration, 284, 267–281 (2005)
[20]	OUYANG, H. J., RICHIEDEI, D., TREVISANI, A., and ZANARDO, G. Eigenstructure assignment in undamped vibrating systems: a convex-constrained modification method based on receptances. Mechanical Systems and Signal Processing, 27, 397–409 (2012)
[21]	MOKRANI, B., BATOU, A., FICHERA, S., ADAMSON, L. J., ALALUF, D., and MOTTERSHEAD, J. E. The minimum norm multi-input multi-output receptance method for partial pole placement. Mechanical Systems and Signal Processing, 129, 437–448 (2019)
[22]	WEI, X. J., XIA, R., MOTTERSHEAD, J. E., and HE, X. H. H₂-optimal vibration control using receptance-based regional eigenvalue assignment. Mechanical Systems and Signal Processing, 167, 108591 (2022)
[23]	SHI, Y. S., LI, H., GUO, Y. Q., and LI, S. A receptance method for assigning frequencies using multiple connecting springs. Ocean Engineering, 320, 120324 (2025)
[24]	MAO, H. P. and DU, Y. L. Partial eigenstructure assignment of the vibration system based on multi-input PID active control. Journal of Vibration and Control, 32, 797–809 (2024)
[25]	MAO, H. P. and DU, Y. L. Vibration PID control design by receptance-based partial eigenstructure assignment. Applied Mathematical Modelling, 140, 115902 (2025)
[26]	ZHANG, S. K. and OUYANG, H. J. Frequency assignment of an assembled structure through links of its substructures. Journal of Sound and Vibration, 580, 118389 (2024)
[27]	TSAI, S. H., OUYANG, H. J., and CHANG, J. Y. A receptance-based method for frequency assignment via coupling of subsystems. Archive of Applied Mechanics, 90, 449–465 (2020)
[28]	ZHANG, L., ZHANG, T., OUYANG, H. J., LI, T. Y., and ZHANG, S. K. Receptance-based natural frequency assignment of a real fluid-conveying pipeline system with interval uncertainty. Mechanical Systems and Signal Processing, 179, 109321 (2022)
[29]	ZHANG, L., ZHANG, T., OUYANG, H. J., and LI, T. Y. Receptance-based antiresonant frequency assignment of an uncertain dynamic system using interval multiobjective optimization method. Journal of Sound and Vibration, 529, 116944 (2022)
[30]	JIN, Y. C. Surrogate-assisted evolutionary computation: recent advances and future challenges. Swarm and Evolutionary Computation, 1, 61–70 (2011)
[31]	MOST, T. and WILL, J. Metamodel of optimal prognosis: an automatic approach for variable reduction and optimal meta-model selection. Proceedings of Weimar Optimization and Stochastic Days 5.0, Vol. WOST2008, 1–22 (2008)
[32]	SOBOLÁ, I. Global sensitivity indices for nonlinear mathematical models and their Monte Carlo estimates. Mathematics and Computers in Simulation, 55, 271–280 (2001)
[33]	SALTELLI, A., ANNONI, P., AZZINI, I., CAMPOLONGO, F., RATTO, M., and TARANTOLA, S. Variance based sensitivity analysis of model output: design and estimator for the total sensitivity index. Computer Physics Communications, 181, 259–270 (2010)
[34]	MCCULLOCH, A. Sensitivity analysis in practice: a guide to assessing scientific models. Journal of the Royal Statistical Society Series A: Statistics in Society, 168, 466 (2005)
[35]	DEB, K., PRATAP, A., AGARWAL, S., and MEYARIVAN, T. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Transactions on Evolutionary Computation, 6, 182–197 (2002)
[36]	ZHOU, G., WANG, J. Z., LEI, W. Z., DONG, X. H., and WANG, J. Stitching interferometry for long X-ray mirrors with lateral multi-shift-based absolute calibration. Applied Optics, 63, 2086–2094 (2024)
[37]	ZHANG, S. K. and OUYANG, H. J. Receptance-based partial eigenstructure assignment by state feedback control. Mechanical Systems and Signal Processing, 168, 108728 (2022)
[38]	BRINCKER, R., ZHANG, L. M., and ANDERSEN, P. Modal identification of output-only systems using frequency domain decomposition. Smart Materials and Structures, 10, 441 (2001)
[39]	NESTOROVIĆ, T., TRAJKOV, M., and PATALONG, M. Identification of modal parameters for complex structures by experimental modal analysis approach. Advances in Mechanical Engineering, 2016, 1–16 (2016)
[40]	FU, S. H. and WU, J. Review of structural modal tracking in operational modal analysis: methods and applications. Applied Sciences, 15, 7201 (2025)

Structural optimization for dynamic stability of a plane-grating monochromator

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

相关文章 2

编辑推荐

Metrics

本文评价

[1]	黎明安;王忠民;郭志勇. A SEMI-ANALYSIS METHOD OF DIFFERENTIAL EQUATIONS WITH VARIABLE COEFFICIENTS UNDER COMPLICATED BOUNDARY CONDITIONS[J]. Applied Mathematics and Mechanics (English Edition), 2003, 24(2): 241-246.
[2]	刘济科;徐伟华;蔡承武. A UNIVERSAL MATRIX PERTURBATION TECHNIQUE FOR COMPLEX MODES[J]. Applied Mathematics and Mechanics (English Edition), 2001, 22(3): 361-367.

Parameter	Initial value/mm	Lower bound/mm	Upper bound/mm
D₁	510	500	670
D₂	192	170	214
D₃	340	300	360
