Swimming velocity of spherical squirmers in a square tube at finite fluid inertia

doi:10.1007/s10483-024-3146-9

Abstract

Abstract:

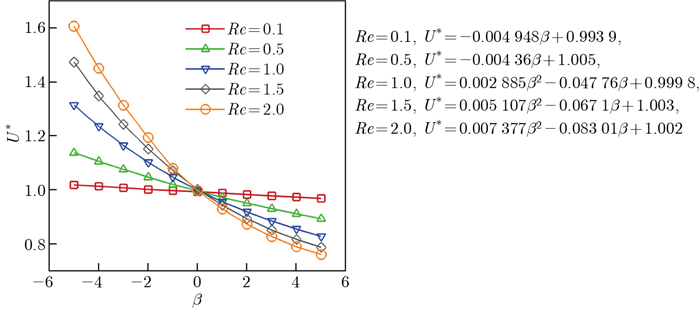

The three-dimensional lattice Boltzmann method (LBM) is used to simulate the motion of a spherical squirmer in a square tube, and the steady motion velocity of a squirmer with different Reynolds numbers (Re, ranging from 0.1 to 2) and swimming types is investigated and analyzed to better understand the swimming characteristics of microorganisms in different environments. First, as the Reynolds number increases, the effect of the inertial forces becomes significant, disrupting the squirmer's ability to maintain its theoretical velocity. Specifically, as the Reynolds number increases, the structure of the flow field around the squirmer changes, affecting its velocity of motion. Notably, the swimming velocity of the squirmer exhibits a quadratic relationship with the type of swimming and the Reynolds number. Second, the narrow tube exerts a significant inhibitory effect on the squirmer motion. In addition, although chirality does not directly affect the swimming velocity of the squirmer, it can indirectly affect the velocity by changing its motion mode.

Key words: spherical squirmer, swimming characteristics, swimming velocity, flow structure

2010 MSC Number:

70B05

Tongxiao JIANG, Deming NIE, Jianzhong LIN. Swimming velocity of spherical squirmers in a square tube at finite fluid inertia. Applied Mathematics and Mechanics (English Edition), 2024, 45(9): 1481-1498.

TrendMD

Figures/Tables 20

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 18

Fig. 19

Fig. 20

References 39

1	ZHAO, G., SANCHEZ, S., SCHMIDT, O. G., and PUMERA, M. Poisoning of bubble propelled catalytic micromotors: the chemical environment matters. Nanoscale, 5 (7), 2909- 2914 (2013)
2	GAO, W., and WANG, J. The environmental impact of micro/nanomachines: a review. ACS Nano, 8 (4), 3170- 3180 (2014)
3	MOO, J. G. S., and PUMERA, M. Chemical energy powered nano/micro/macromotors and the environment. Chemistry-A European Journal, 21 (1), 58- 72 (2015)
4	DI LEONARDO, R., ANGELANI, L., DELL'ARCIPRETE, D., RUOCCO, G., LEBBA, V., SCHIPPA, S., CONTE, M. P., MECARINI, F., DE ANGELIS, F., and DI FABRIZIO, E. Bacterial ratchet motors. Proceedings of the National Academy of Sciences, 107 (21), 9541- 9545 (2010)
5	GUIX, M., WEIZ, S. M., SCHMIDT, O. G., and MEDINA-SÁNCHEZ, M. Self-propelled micro/nanoparticle motors. Particle & Particle Systems Characterization, 35 (2), 1700382 (2018)
6	MHANNA, R., QIU, F., ZHANG, L., DING, Y., SUGIHARA, K., ZENOBI-WONG, M., and NELSON, B. J. Artificial bacterial flagella for remote-controlled targeted single-cell drug delivery. Small, 10 (10), 1953- 1957 (2014)
7	WU, Z., LIN, X., SI, T., and HE, Q. Recent progress on bioinspired self-propelled micro/nanomotors via controlled molecular self-assembly. Small, 12 (23), 3080- 3093 (2016)
8	LUSHI, E., WIOLAND, H., and GOLDSTEIN, R. E. Fluid flows created by swimming bacteria drive self-organization in confined suspensions. Proceedings of the National Academy of Sciences, 111 (27), 9733- 9738 (2014)
9	DRESCHER, K., LEPTOS, K. C., TUVAL, I., ISHIKAWA, T., PEDLEY, T. J., and GOLDSTEIN, R. E. Dancing volvox: hydrodynamic bound states of swimming algae. Physical Review Letters, 102 (16), 168101 (2009)
10	SANCHEZ, T., CHEN, D. T. N., DECAMP, S. J., HEYMANN, M., and DOGIC, Z. Spontaneous motion in hierarchically assembled active matter. nature, 491 (7424), 431- 434 (2012)
11	WILLIAMS, B. J., ANAND, S. V., RAJAGOPALAN, J., and SAIF, M. T. A. A self-propelled biohybrid swimmer at low Reynolds number. Nature Communications, 5 (1), 3081 (2014)
12	CELI, N., GONG, D., and CAI, J. Artificial flexible sperm-like nanorobot based on self-assembly and its bidirectional propulsion in precessing magnetic fields. Scientific Reports, 11 (1), 21728 (2021)
13	WANG, Y., CHEN, H., LAW, J., DU, X., and YU, J. Ultrafast miniature robotic swimmers with upstream motility. Cyborg and Bionic Systems, 4, 0015 (2023)
14	SONNTAG, L., SIMMCHEN, J., and MAGDANZ, V. Nano- and micromotors designed for cancer therapy. Molecules, 24 (18), 3410 (2019)
15	LI, J., ESTEBAN-FERNÁNDEZ, D. Á. B., GAO, W., ZHANG, L., and WANG, J. Micro/nanorobots for biomedicine: delivery, surgery, sensing, and detoxification. Science Robotics, 2 (4), eaam6431 (2017)
16	WANG, T., JOO, H. J., SONG, S., HU, W., KEPLINGER, C., and SITTI, M. A versatile jellyfish-like robotic platform for effective underwater propulsion and manipulation. Science Advances, 9 (15), eadg0292 (2023)
17	LIGHTHILL, M. J. On the squirming motion of nearly spherical deformable bodies through liquids at very small Reynolds numbers. Communications on Pure and Applied Mathematics, 5 (2), 109- 118 (1952)
18	BLAKE, J. R. A spherical envelope approach to ciliary propulsion. Journal of Fluid Mechanics, 46 (1), 199- 208 (1971)
19	BLAKE, J. R. Self propulsion due to oscillations on the surface of a cylinder at low Reynolds number. Bulletin of the Australian Mathematical Society, 5 (2), 255- 264 (1971)
20	ZÖTTL, A., and STARK, H. Periodic and quasiperiodic motion of an elongated microswimmer in Poiseuille flow. The European Physical Journal E, 36, 1- 10 (2013)
21	QI, T. T., LIN, J. Z., OUYANG, Z. Y., and ZHU, J. Settling mode of a bottom-heavy squirmer in a narrow vessel. Soft Matter, 19 (4), 652- 669 (2023)
22	LI, S., YING, Y., and NIE, D. Simulation of flow past a squirmer confined in a tube at low Reynolds numbers. Fluid Dynamics Research, 55 (5), 055504 (2023)
23	LI, G. J., and ARDEKANI, A. M. Hydrodynamic interaction of microswimmers near a wall. Physical Review E, 90 (1), 013010 (2014)
24	KYOYA, K., MATSUNAGA, D., IMAI, Y., OMORI, T., and ISHIKAWA, T. Shape matters: near-field fluid mechanics dominate the collective motions of ellipsoidal squirmers. Physical Review E, 92 (6), 063027 (2015)
25	KUHR, J. T., BLASCHKE, J., RÜHLE, F., and STARK, H. Collective sedimentation of squirmers under gravity. Soft Matter, 13 (41), 7548- 7555 (2017)
26	RÜHLE, F., and STARK, H. Emergent collective dynamics of bottom-heavy squirmers under gravity. The European Physical Journal E, 43, 1- 17 (2020)
27	HAMEL, A., FISCH, C., COMBETTES, L., DUPUIS-WILLIAMS, P., and BAROUD, C. N. Transitions between three swimming gaits in Paramecium escape. Proceedings of the National Academy of Sciences, 108 (18), 7290- 7295 (2011)
28	WANG, S., and ARDEKANI, A. Inertial squirmer. Physics of Fluids, 24 (10), 101902 (2012)
29	OUYANG, Z., and LIN, J. The hydrodynamics of an inertial squirmer rod. Physics of Fluids, 33 (7), 073302 (2021)
30	OUYANG, Z., and PHAN-THIEN, N. Inertial swimming in a tube filled with a power-law fluid. Physics of Fluids, 33 (11), 113312 (2021)
31	OUYANG, Z., LIN, Z., YU, Z., LIN, J., and PHAN-THIEN, N. Hydrodynamics of an inertial squirmer and squirmer dumbbell in a tube. Journal of Fluid Mechanics, 939, A32 (2022)
32	CHISHOLM, N. G., LEGENDRE, D., LAUGA, E., and KHAIR, A. S. A squirmer across Reynolds numbers. Journal of Fluid Mechanics, 796, 233- 256 (2016)
33	MORE, R. V., and ARDEKANI, A. M. Motion of an inertial squirmer in a density stratified fluid. Journal of Fluid Mechanics, 905, A9 (2020)
34	LI, G., OSTACE, A., and ARDEKANI, A. M. Hydrodynamic interaction of swimming organisms in an inertial regime. Physical Review E, 94 (5), 053104 (2016)
35	KHAIR, A. S., and CHISHOLM, N. G. Expansions at small Reynolds numbers for the locomotion of a spherical squirmer. Physics of Fluids, 26 (1), 011902 (2014)
36	LIN, Z., and GAO, T. Direct-forcing fictitious domain method for simulating non-Brownian active particles. Physical Review E, 100 (1), 013304 (2019)
37	QIAN, Y. H., D'HUMIÈRES, D., and LALLEMAND, P. Lattice BGK models for Navier-Stokes equation. Europhysics Letters, 17 (6), 479 (1992)
38	LALLEMAND, P., and LUO, L. S. Lattice Boltzmann method for moving boundaries. Journal of Computational Physics, 184 (2), 406- 421 (2003)
39	GLOWINSKI, R., PAN, T. W., HESLA, T. I., JOESEPH, D. D., and PÉRIAUX, J. A fictitious domain approach to the direct numerical simulation of incompressible viscous flow past moving rigid bodies: application to particulate flow. Journal of Computational Physics, 169 (2), 363- 426 (2001)
