Fatigue correlation reliability evaluation of heavy-haul railway bridges

doi:10.1007/s10483-025-3269-8

摘要/Abstract

Abstract:

The fatigue of heavy-haul railway bridges is considered a key concern due to high stress levels and cyclic loading. The evaluation of fatigue reliability is required to include factor correlations. A major challenge is presented by the construction of the cumulative distribution function (CDF) and the description of correlations between random variables. In this study, the copula function is used to analyze the fatigue failure probability of the Shuohuang heavy-haul railway bridge. A C-vine copula (CVC)-based joint probability density function (JPDF) is derived with eight correlated parameters. To enhance efficiency in small failure probability calculations, the subset simulation and most probable point (MPP) Monte Carlo importance sampling are introduced based on the Rosenblatt transform and C-vine model. Comparisons with traditional Monte Carlo methods confirm that high accuracy and efficiency are achieved. The results show that when parameter correlations are ignored, failure probability is underestimated, increasing safety risks in bridge assessments.

Key words: heavy-haul railway bridge, fatigue correlation reliability, correlated random variable, C-vine copula (CVC), subset simulation method, Monte Carlo important sampling

中图分类号:

O346.2

. [J]. Applied Mathematics and Mechanics (English Edition), 2025, 46(7): 1295-1314.

Mingyang ZHANG, Mengcheng CHEN, Wei FANG, Kaicheng XU, Hong HUANG. Fatigue correlation reliability evaluation of heavy-haul railway bridges[J]. Applied Mathematics and Mechanics (English Edition), 2025, 46(7): 1295-1314.

图/表 16

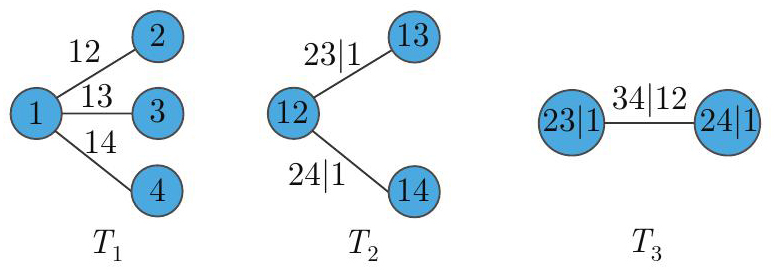

Copula function family	Name	$C θ (u 1, u 2, u 3, ⋯, u n)$	$θ$	$τ$
Elliptical family	Gaussian	$Φ θ (Φ 1 − 1 (u 1), Φ 2 − 1 (u 2), Φ 3 − 1 (u 3), ⋯, Φ n − 1 (u n))$	$(− 1, 1)$	$2 π arcsin θ$
Elliptical family	$t$	$Φ θ (T m − 1 (u 1), T m − 1 (u 2), T m − 1 (u 3), ⋯, T m − 1 (u n))$	$(− 1, 1)$	$2 π arcsin θ$
Archimedean family	Gumbel	$exp (− (∑ i = 1 n (− ln (u i)) θ) 1 / θ)$	$θ ⩾ 0$	$(θ − 1) / θ$
	Clayton	$max ((∑ i = 1 n u i − θ − n + 1) − 1 / θ, 0)$	$[− 1, ∞) − {0}$	$θ / (θ + 2)$
	Frank	$− 1 θ ln (1 + ∏ i = 1 n (e − θ u i − 1) (e − θ − 1) n − 1)$	$(− ∞, ∞) − {0}$	$1 − 4 θ (1 − D 1 (θ))$

Copula function	Dependence parameter $θ^$	AIC value
Gaussian	$− 0.405 9$	$− 94.321 1$
Clayton	$1.45 × 10 − 6$	2.000 4
Gumbel	1	2.008 0
Frank	$− 4.252 4$	$− 43.294 7$

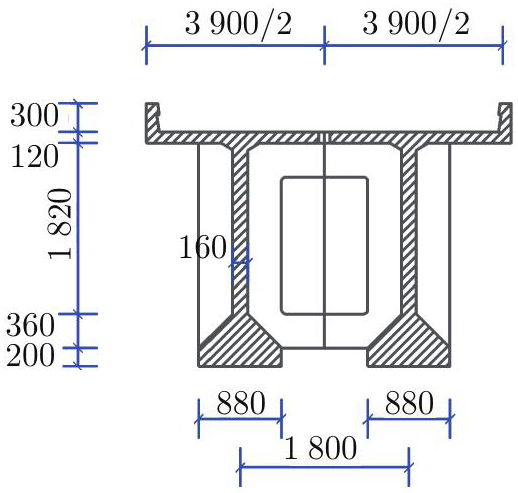

Variable	Mean	Standard deviation	Distribution function
$D c$	1	0.3	Lognormal
$C$	$1.46 × 1015$	$6.58 × 1014$	Lognormal
$m$	4.382 7	0	Deterministic
$S re1$	10.136	3.179	Gamma
$S re2$	11.474	3.551	Normal
$S re3$	11.501	3.572	Normal
$N 1$	441	57	Weibull
$N 2$	732	101	Weibull
$N 3$	1 355	220	Normal

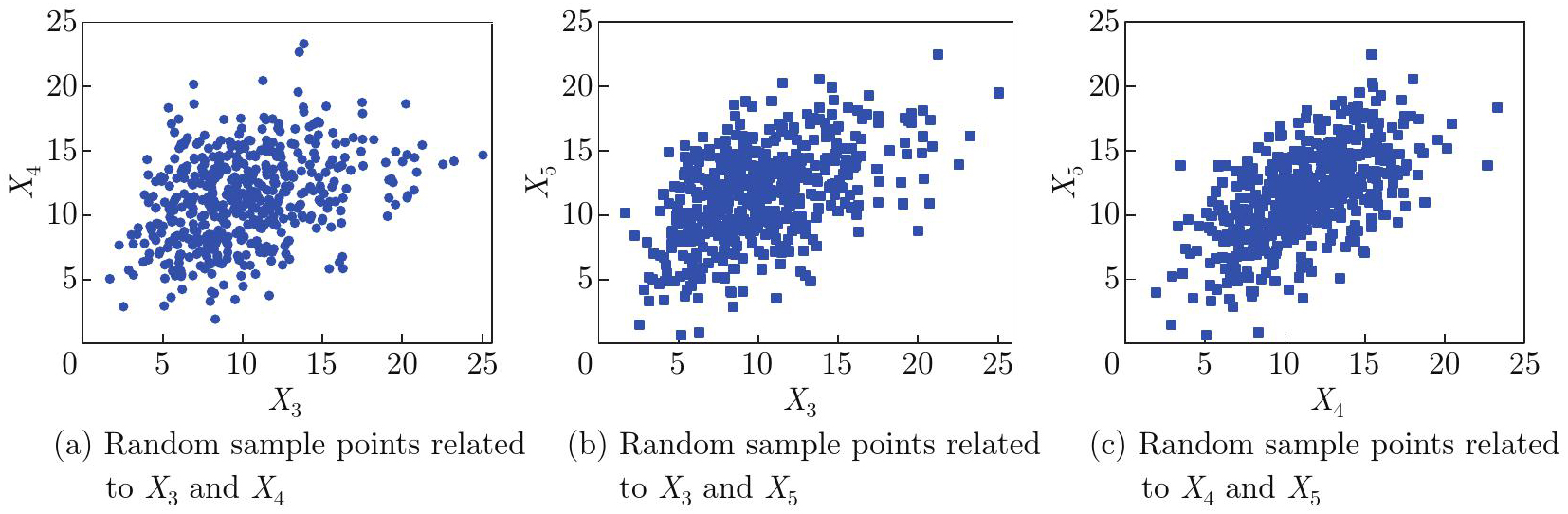

Variable	$S re1$	$S re2$	$S re3$
$S re1$	1	0.2	0.3
$S re2$	0.2	1	0.4
$S re3$	0.3	0.4	1

Copula function	Dependence parameter $θ^$	AIC value
Gaussian	0.309 0	-47.471 5
Clayton	0.500 0	-30.986 4
Gumbel	1.250 0	-38.008 5
Frank	1.860 9	-43.294 7

Copula function	Dependence parameter $θ^$	AIC value
Gaussian	0.587 8	-93.281 9
Clayton	1.333 0	-2.231 1
Gumbel	1.666 7	-68.234 8
Frank	4.161 1	-86.862 9

Copula function	Dependence parameter $θ^$	AIC value
Gaussian	0.277 5	-14.754 7
Clayton	0.307 5	-9.383 8
Gumbel	1.152 8	-11.071 0
Frank	1.683 9	-13.232 3

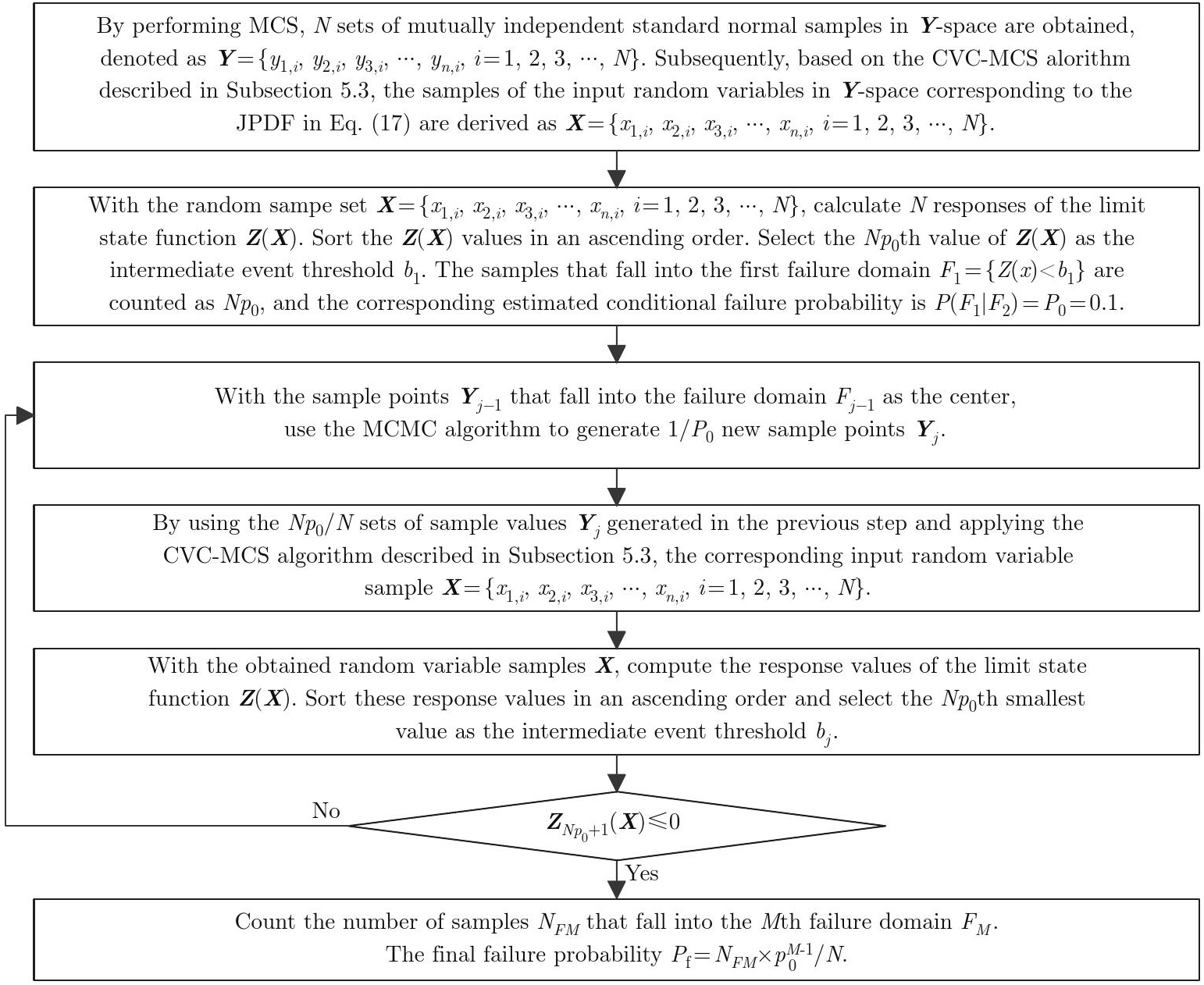

Calculation method	$P f$	Sample number
MCS	$2.060 0 × 10 − 5$	$1 × 107$
CVC for function subset simulation method	$2.190 0 × 10 − 5$	$6 × 103$
MPP Monte Carlo importance sampling method	$2.074 8 × 10 − 5$	$1 × 104$

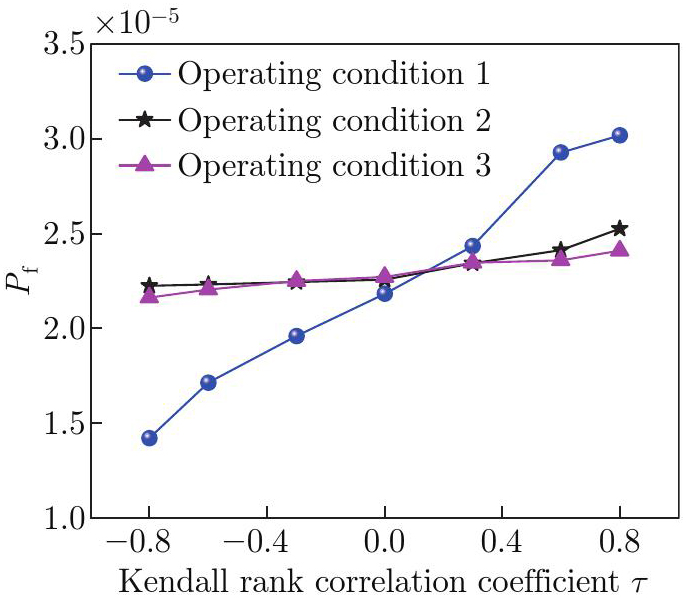

Calculation method	$P f$	Sample number
MCS	$2.460 0 × 10 − 5$	$1 × 107$
CVC for function subset simulation method	$2.659 0 × 10 − 5$	$6 × 103$
MPP Monte Carlo importance sampling method	$2.540 7 × 10 − 5$	$1 × 104$

参考文献 47

[1]	LAZORENKO, G., KASPRZHITSKII, A., KHAKIEV, Z., and YAVNA, V. Dynamic behavior and stability of soil foundation in heavy haul railway tracks: a review. Construction and Building Materials, 205, 111–136 (2019)
[2]	FENG, Q., ZHU, Z., TONG, Q., YU, Y., and ZHENG, W. Dynamic responses and fatigue assessment of OSD in heavy-haul railway bridges. Journal of Constructional Steel Research, 204, 107873 (2023)
[3]	SHI, J., SONG, L., CUI, C., and YU, Z. Fatigue reliability assessment of RC beams in heavy-haul railways based on point estimate method. Materials, 16(22), 7098 (2023)
[4]	YE, X. W., SU, Y. H., and HAN, J. P. A state-of-the-art review on fatigue life assessment of steel bridges. Mathematical Problems in Engineering, 2014, 956473 (2014)
[5]	LU, Z. H., ZHANG, S. W., ZHANG, X. Y., LI, C. Q., LIU, L., and ZHAN, J. W. Time-dependent fatigue reliability analysis of heavy-haul railway steel bridges. Engineering Structures, 305, 117737 (2024)
[6]	ZHANG, Q. A general method dealing with correlations in uncertainty propagation in fault trees. Reliability Engineering & System Safety, 26(3), 231–247 (1989)
[7]	CHEN, Z. Q., ZHENG, S. X., ZHANG, J., and JIA, H. Seismic reliability analysis of high-pier railway bridges with correlated random parameters via an improved maximum entropy method. Structures, 33, 4538–4555 (2021)
[8]	WANG, C. Estimation of time-dependent reliability of aging structures under correlated load and autocorrelation in resistance deterioration. Applied Mathematical Modelling, 94, 272–284 (2021)
[9]	LIU, J. M., YU, B., and YANG, L. F. An analysis of the influence of Orthogonal and Nataf transformations on computational accuracy by the FORM method (in Chinese). Chinese Journal of Applied Mechanics, 305, 117737 (2015)
[10]	LEBRUN, R. and DUTFOY, A. Do Rosenblatt and Nataf isoprobabilistic transformations really differ? Probabilistic Engineering Mechanics, 24, 577–584 (2009)
[11]	LEBRUN, R. and DUTFOY, A. An innovating analysis of the Nataf transformation from the copula viewpoint. Probabilistic Engineering Mechanics, 24, 312–320 (2009)
[12]	CHOI, K. K., NOH, Y., and DU, L. Reliability based design optimization with correlated input variables. SAE Technical Paper, SAE International, 2007-01-0551 (2007)
[13]	ALLEN, D. E., ASHRAF, M. A., MCALEER, M., POWELL, R. J., and SINGH, A. K. Financial dependence analysis: applications of vine copulas. Statistica Neerlandica, 67(4), 403–435 (2013)
[14]	DITLEVSEN, O. and MADSEN, H. O. Structural Reliability Methods, John Wiley & Sons, New York (1996)
[15]	MELCHERS, R. E. and BECK, A. T. Structural Reliability Analysis and Prediction, John Wiley & Sons, New York (2018)
[16]	WU, S. B., LI, D. Q., and ZHOU, C. B. Comparison among three transformation methods for structural reliability analysis with correlated variables (in Chinese). Engineering Mechanic, 28(5), 41–48 (2011)
[17]	EVKAYA, O., GÜR, I., KÜLEKCI, B. Y., and POYRAZ, G. Vine copula approach to understand the financial dependence of the istanbul stock exchange index. Computational Economics, 64(5), 2935–2980 (2024)
[18]	DE MICHELE, C. and SALVADORI, G. Multivariate extreme value models in hydrology: a copula approach. EGU General Assembly Conference Abstracts, 12, EGU2010-9486 (2010)
[19]	MAITY, R. Theory of copula in hydrology and hydroclimatology. Statistical Methods in Hydrology and Hydroclimatology, Springer, Singapore, 373–416 (2022)
[20]	PAPAEFTHYMIOU, G. and KUROWICKA, D. Using copulas for modeling stochastic dependence in power system uncertainty analysis. IEEE Transactions on Power Systems, 24(1), 40–49 (2009)
[21]	XU, J., WU, W., WANG, K., and LI, G. C-vine pair copula based wind power correlation modelling in probabilistic small signal stability analysis. IEEE/CAA Journal of Automatica Sinica, 7(4), 1154–1160 (2020)
[22]	JIANG, C., ZHANG, W., WANG, B., and HAN, X. Structural reliability analysis using a copula-function-based evidence theory model. Computers & Structures, 143, 19–31 (2014)
[23]	XU, H. W., QIN, W., HU, J. H., SUN, Y. N., LV, Y. L., and ZHANG, J. A copula network deconvolution-based direct correlation disentangling framework for explainable fault detection in semiconductor wafer fabrication. Advanced Engineering Informatics, 59, 102272 (2024)
[24]	TANG, X. S., LI, D. Q., RONG, G., PHOON, K. K., and ZHOU, C. B. Impact of copula selection on geotechnical reliability under incomplete probability information. Computers and Geotechnics, 49, 264–278 (2013)
[25]	TANG, X. S., WANG, M. X., and LI, D. Q. Modeling multivariate cross-correlated geotechnical random fields using vine copulas for slope reliability analysis. Computers and Geotechnics, 127, 103784 (2020)
[26]	XU, X., LI, J., GONG, J., DENG, H., and WAN, L. Copula-based slope reliability analysis using the failure domain defined by the g-line. Mathematical Problems in Engineering, 2016, 6141838 (2016)
[27]	JIANG, C., ZHANG, W., HAN, X., NI, B. Y., and SONG, L. J. A vine-copula-based reliability analysis method for structures with multidimensional correlation. Journal of Mechanical Design, 137(6), 061405 (2015)
[28]	FANG, G., PAN, R., and HONG, Y. Copula-based reliability analysis of degrading systems with dependent failures. Reliability Engineering & System Safety, 193, 106618 (2020)
[29]	XIAO, Q., LIU, Y., ZHOU, L., LIU, Z., JIANG, Z., and TANG, L. Reliability analysis of bridge girders based on regular vine Gaussian copula model and monitored data. Structures, 39, 1063–1073 (2022)
[30]	BARROS, B., CONDE, B., RIVEIRO, B., and MORALES-NÁPOLES, O. Gaussian copula-based Bayesian network approach for characterizing spatial variability in aging steel bridges. Structural Safety, 106, 102403 (2024)
[31]	WANG, Z. W., ZHANG, W. M., TIAN, G. M., and LIU, Z. Joint values determination of wind and temperature actions on long-span bridges: copula-based analysis using long-term meteorological data. Engineering Structures, 219, 110866 (2020)
[32]	SONG, S., LIU, J., QIAN, Y., ZHANG, F., and WU, G. Dependence analysis on the seismic demands of typical components of a concrete continuous girder bridge with the copula technique. Advances in Structural Engineering, 21(12), 1826–1839 (2018)
[33]	NOVAK, L. and NOVAK, D. Surrogate modelling in the stochastic analysis of concrete girders failing in shear. Proceedings of the Fib's Symposium 2019: Concrete-Innovations in Materials, Design and Structures, The International Federation for Structural Concrete, 1741–1747 (2019)
[34]	LI, Q. and ZHANG, T. Research on the reliability of bridge structure construction process system based on copula theory. Applied Sciences, 12(16), 8137 (2022)
[35]	LI, Y., DONG, Y., and GUO, H. Copula-based multivariate renewal model for life-cycle analysis of civil infrastructure considering multiple dependent deterioration processes. Reliability Engineering & System Safety, 231, 108992 (2023)
[36]	CHEN, J. B., TAO, J. J., REN, X. D., and LI, J. Research on the dependence between parameters of complete stress-strain constitutive curve of concrete based on copula theory (in Chinese). China Civ. Eng. J, 53(7), 52–63 (2020)
[37]	SONG, L. and YU, Z. W. Fatigue damage experiments of heavy haul railway prestressed concrete beams using fiber Bragg grating sensing technology (in Chinese). Journal of Building Structures, 40, 58–66 (2019)
[38]	LU, Z. H., MA, Y. F., SONG, L., and YU, Z. W. Experimental study on fatigue behavior of 8 m low-height reinforced concrete plate-girder of heavy-haul railway (in Chinese). Journal of Central South University (Science and Technology), 48(9), 2550–2558 (2017)
[39]	SONG, L., CUI, C., LIU, J., YU, Z., and JIANG, L. Corrosion-fatigue life assessment of RC plate girder in heavy-haul railway under combined carbonation and train loads. International Journal of Fatigue, 151, 106368 (2021)
[40]	MINER, M. A. Cumulative fatigue damage. Journal of Applied Mechanics, 12, A195–A164 (1945)
[41]	LI, H., FRANGOPOL, D. M., SOLIMAN, M., and XIA, H. Fatigue reliability assessment of railway bridges based on probabilistic dynamic analysis of a coupled train-bridge system. Journal of Structural Engineering, 142(3), 04015158 (2016)
[42]	CHERUBINI, U., LUCIANO, E., and VECCHIATO, W. Copula Methods in Finance, John Wiley & Sons, New York (2004)
[43]	LI, S., WANG, X., and WANG, D. Comparison of Archimedean copula function parameter estimation methods (in Chinese). Statistics & Decision, 18, 75–77 (2016)
[44]	BRECHMANN, E. C. and SCHEPSMEIER, U. Modeling dependence with C- and D-vine copulas: the R package CDVine. Journal of Statistical Software, 52(3), 1–27 (2013)
[45]	AU, S. K. and BECK, J. L. Estimation of small failure probabilities in high dimensions by subset simulation. Probabilistic Engineering Mechanics, 16(4), 263–277 (2001)
[46]	HOHENBICHLER, M. and RACKWITZ, R. Non-normal dependent vectors in structural safety. Journal of the Engineering Mechanics Division, 107(6), 1227–1238 (1981)
[47]	REN, X. Z. Fatigue Analysis and Reliability Study of Heavy Railway Bridges Based on Vehicle-Bridge Coupling Vibration (in Chinese), M. Sc. dissertation, Beijing Jiaotong University (2021)

Year	Regular train	10 000-ton train	20 000-ton train	Year	Regular train	10 000-ton train	20 000-ton train
2018	21 870	15 877	9 010	2008	24 269	–	–
2017	26 535	15 612	5 774	2007	23 945	–	–
2016	30 081	14 987	1 532	2006	20 233	–	–
2015	19 830	13 753	–	2005	16 760	–	–
2014	34 026	11 592	–	2004	13 384	–	–
2013	34 053	11 261	–	2003	9 181	–	–
2012	27 573	11 151	–	2002	5 514	–	–
2011	22 882	4 838	–	2001	2 821	–	–
2010	22 568	2 450	–	2000	956	–	–
2009	26 878	–	–
