Thermodynamic constitutive modeling for analyzing the consistencies and differences of intelligent responses induced by thermo-elastic-viscoplastic couplings

doi:10.1007/s10483-026-3409-7

Abstract

Abstract:

Through appropriate thermo-mechanical stimulation, shape memory polymers (SMPs) can exhibit autonomous shape-morphing capabilities, which are referred to as entropic elastic (EE) or reversible plastic (RP) intelligent responses. Currently, few studies in the literature address unified constitutive modeling for these two types of intelligent responses, and thermodynamic consistency is lacking. Here, we develop a unified thermodynamically consistent constitutive model that captures hyperelastic-viscoelastic and elasto-viscoplastic couplings, thereby reproducing both the EE and RP intelligent responses. Through verification against experimental data and results from subsequent mechanistic and parametric studies, the constitutive model can not only integrate the theoretical representations of these two phenomena into a mathematical framework, but also reveal the consistencies and differences between the two types of intelligent responses.

Key words: intelligent response, hyperelasticity-viscoelasticity, elasto-viscoplasticity, thermodynamic constitutive modeling

2010 MSC Number:

O345

Hao DUAN, W. M. HUANG, Hao ZENG, Jianping GU, Huiyu SUN. Thermodynamic constitutive modeling for analyzing the consistencies and differences of intelligent responses induced by thermo-elastic-viscoplastic couplings. Applied Mathematics and Mechanics (English Edition), 2026, 47(7): 1533-1548.

TrendMD

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: https://www.amm.shu.edu.cn/EN/10.1007/s10483-026-3409-7

https://www.amm.shu.edu.cn/EN/Y2026/V47/I7/1533

Figures/Tables 11

Table 1

Table 2

Model parameters from Refs. [28], [50], and [51]"

Parameter	Value	Parameter	Value
$T g$	42.1 °C	$T ref$	27 °C
$μ eq$	2.53 MPa	$τ s0$	0.5 s
Q	2 325.79 K	$K B$	$1.380 69 × 10 − 23$ J/K
$α g$	$6.0 × 10 − 5 (∘ C) − 1$	$τ R0$	0.5 s
$B R$	15 900 J/m³	$η ref$	6 J·m^-3·K
C	50 J·m^-3·K	$s s$	13.9 MPa
$C s$	1	$E g$	453 MPa
$Δ G$	$0.28 × 10 − 19$ J	A	3.7
$T r$	42.1 °C	h₀	499 MPa
s₀	16.7 MPa

Table 2

Table 3

Model parameters from Ref. [52]"

Parameter	Value	Parameter	Value
$T g$	59 °C	$E g$	1 450 MPa
$μ eq$	2.93 MPa	$τ s0$	$4.0 × 10 − 2$ s
$T 1, T 2, T 3$	299.15 K, 312.15 K, 353.15 K	$T ref$	35 °C
$Q / s y$	101 K/MPa	$K B$	$1.380 69 × 10 − 23$ J/K
$α r$	$1.45 × 10 − 4 (∘ C) − 1$	$Δ G$	$3.3 × 10 − 20$ J
$C s$	1	$α 1, α 2, α 3$	41, 55, 99
$α g$	$1.1 × 10 − 4 (∘ C) − 1$	$τ R0$	$3.5 × 10 − 1$ s
$B R$	25 000 J/m³	$η ref$	12 J·m^-3·K
C	65 J·m^-3·K	$E 1, E 2, E 3$	824.7 MPa, 911.95 MPa, 33.05 MPa

Table 3

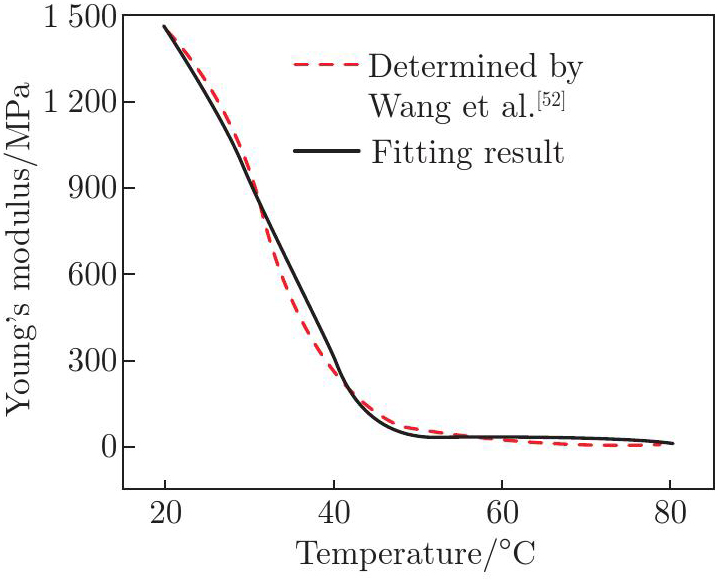

Fig. 1

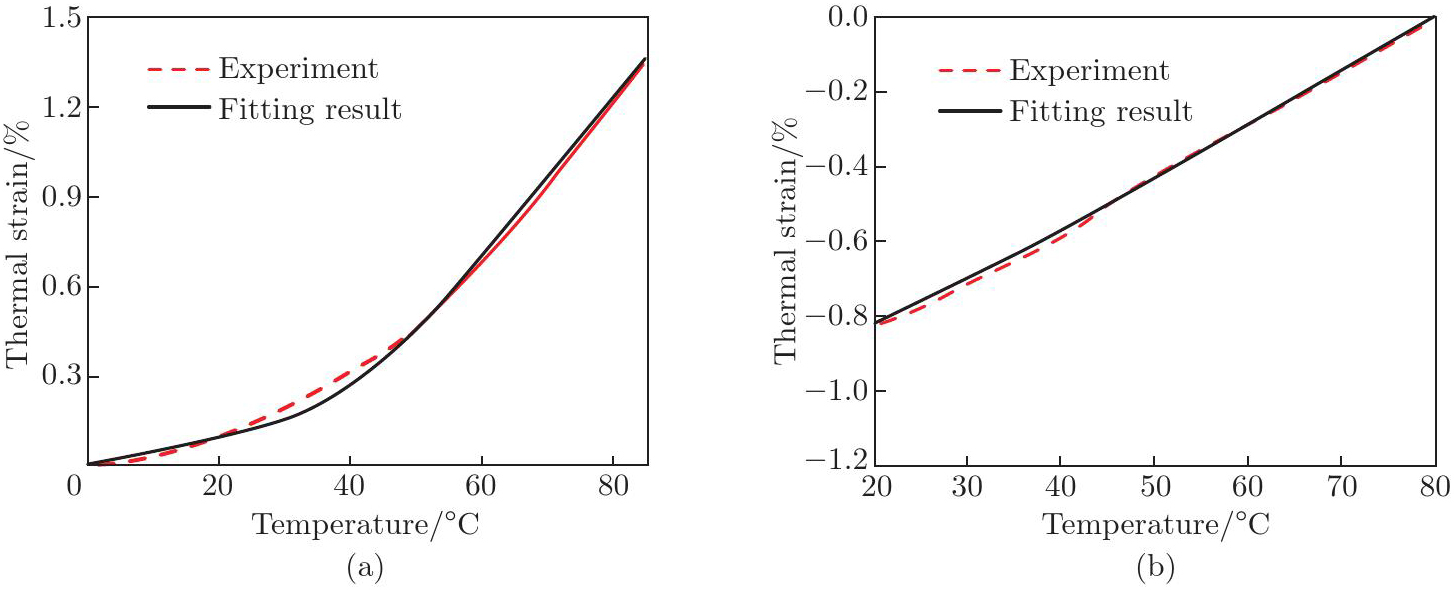

Fig. 2

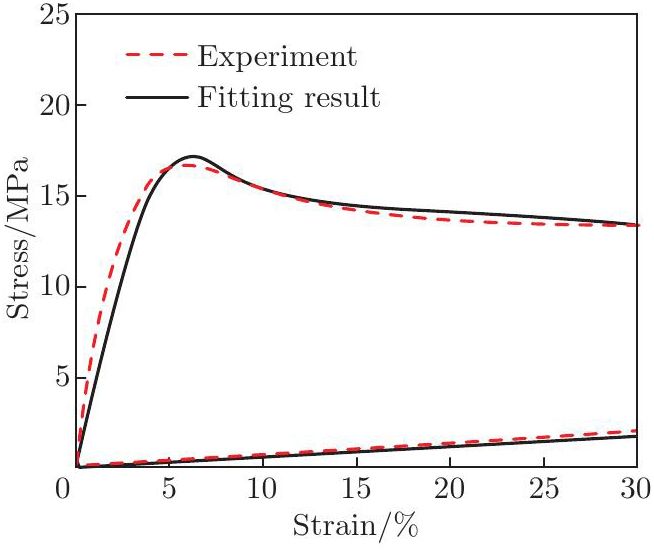

Fig. 3

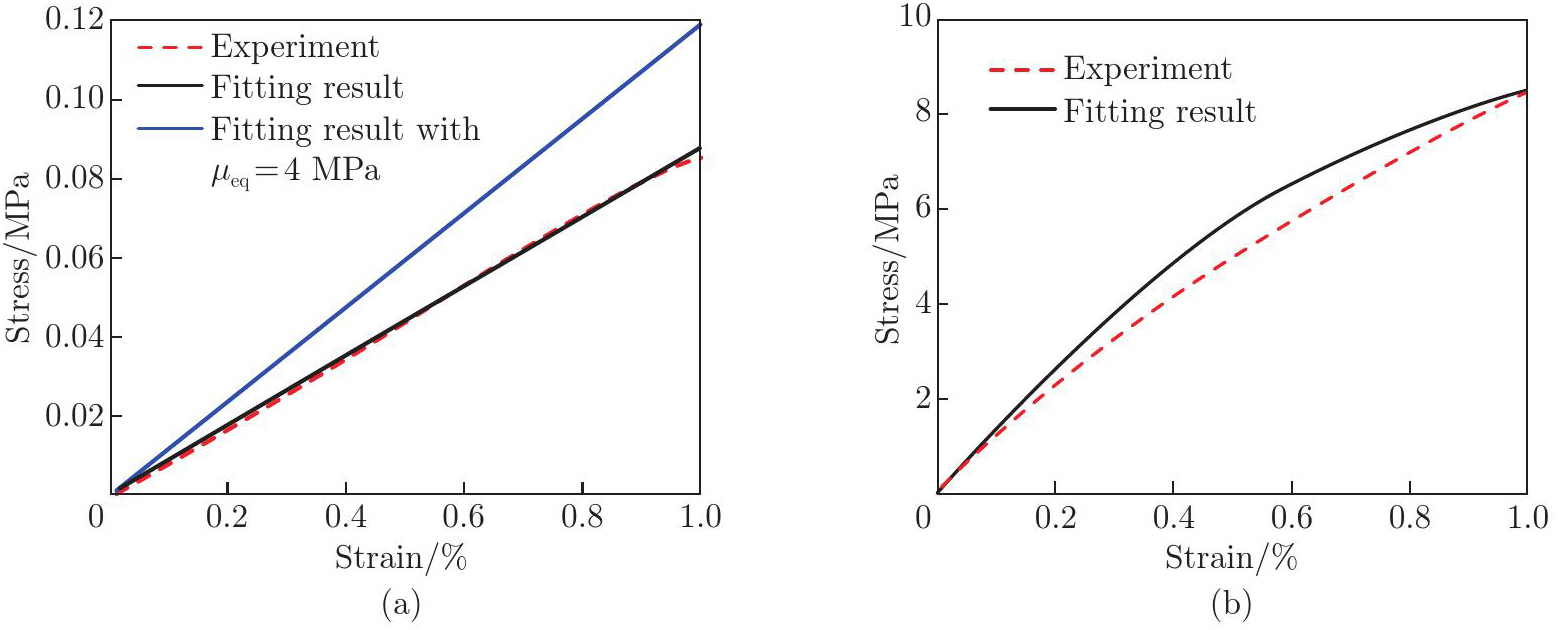

Fig. 4

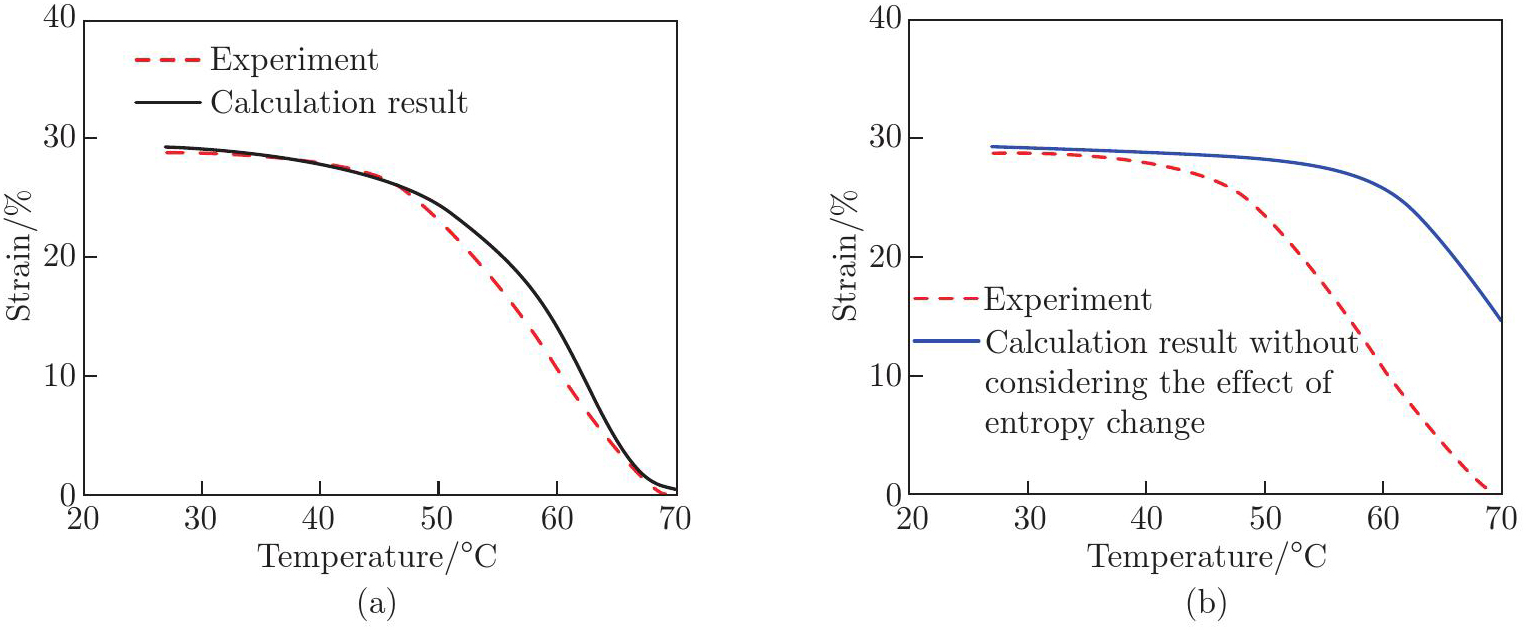

Fig. 5

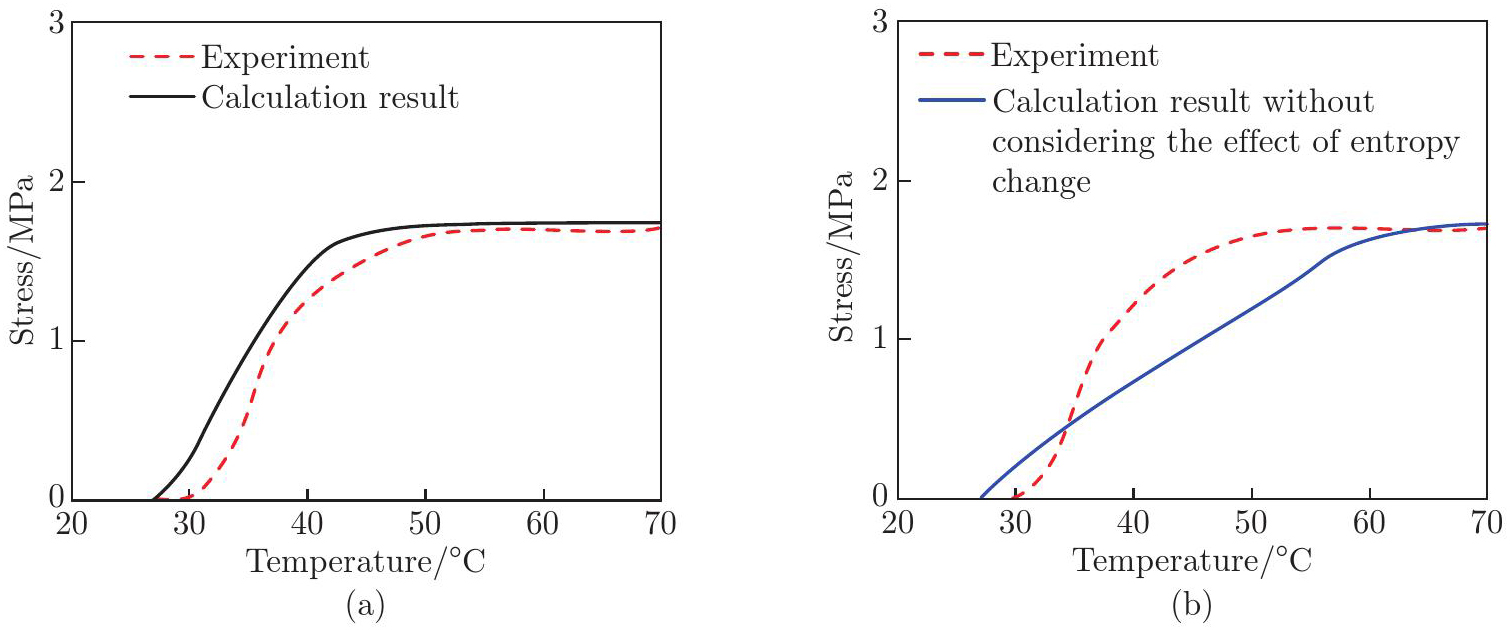

Fig. 6

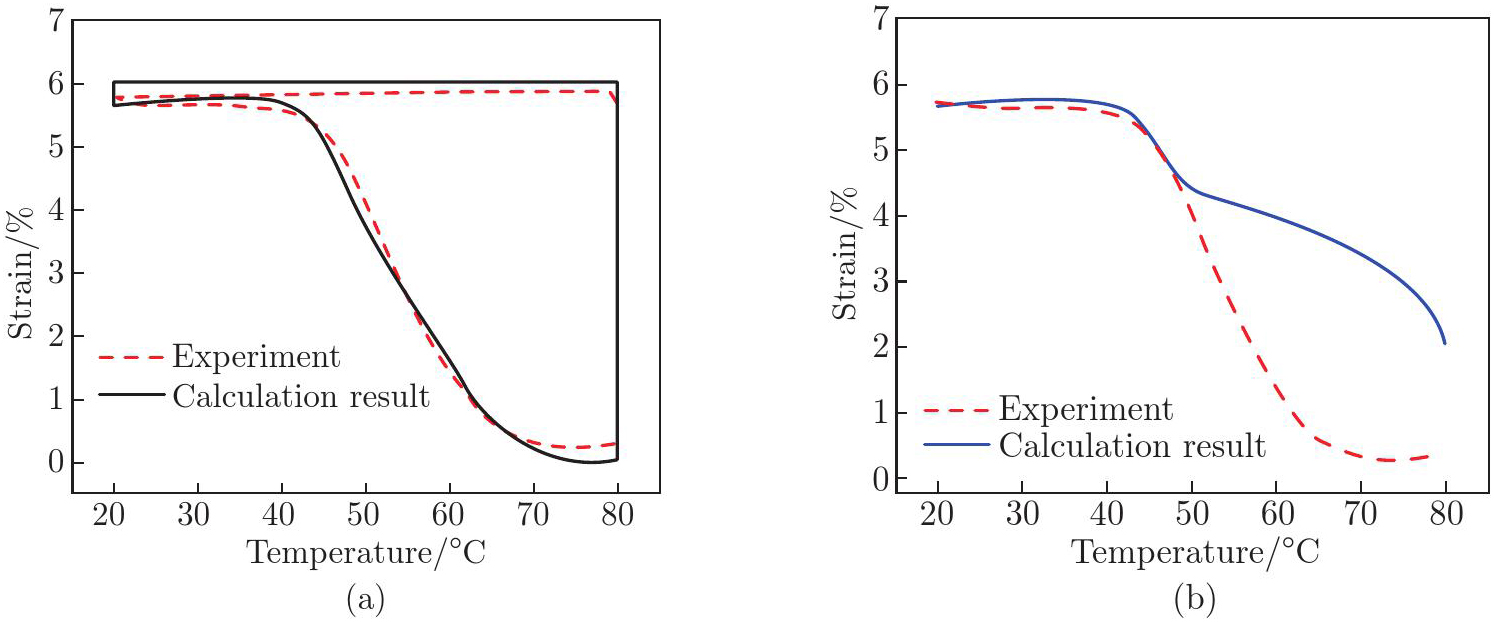

Fig. 7

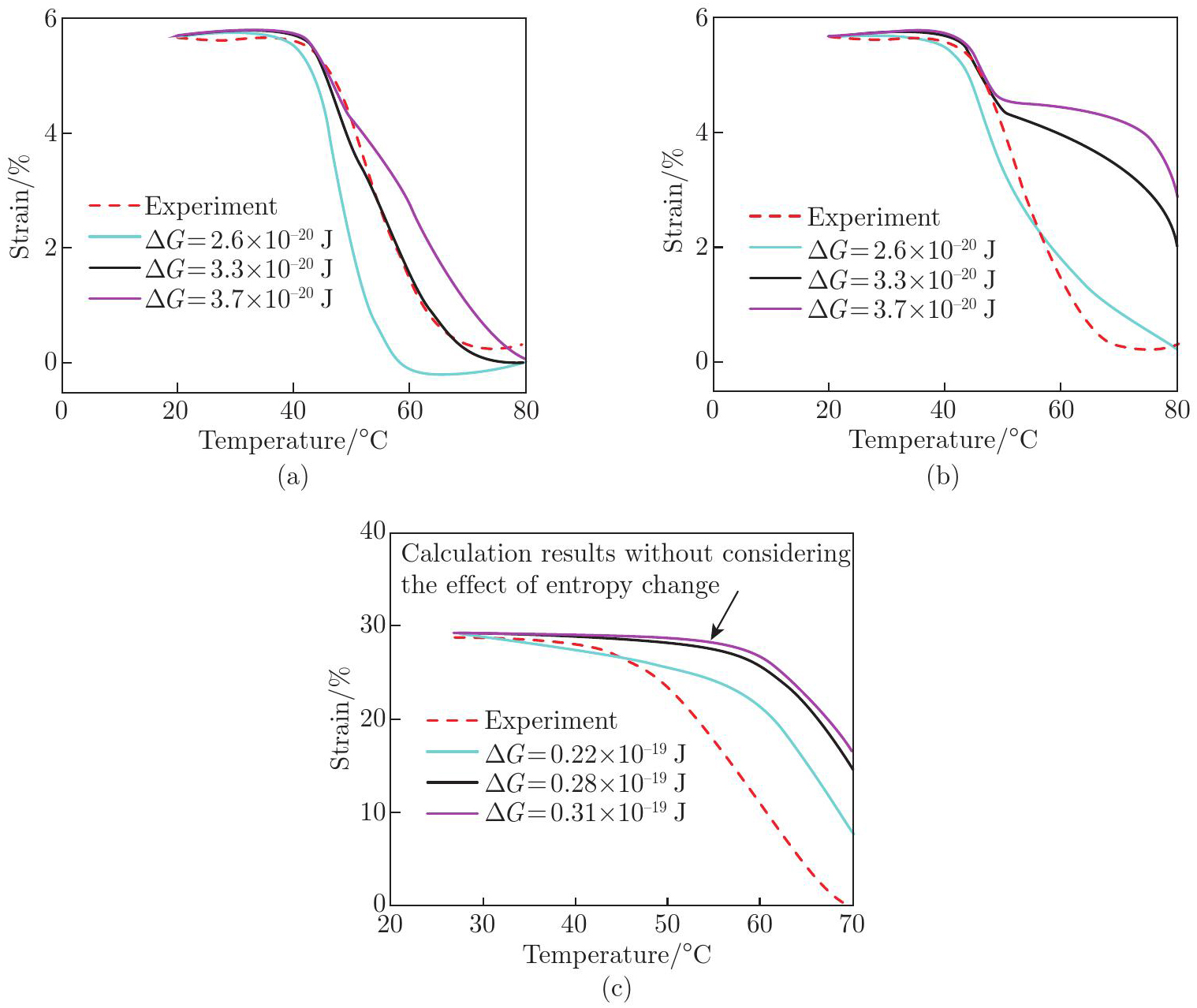

Fig. 8

References 56

[1]	YUE, L., SUN, X. H., YU, L. X., LI, M. Z., MONTGOMERY, S. M., SONG, Y. Y., NOMURA, T., TANAKA, M., and QI, H. J. Cold-programmed shape-morphing structures based on grayscale digital light processing 4D printing. Nature Communications, 14, 5519 (2023)
[2]	DONG, K., WANG, Y. H., WANG, Z. H., QIU, W. L., ZHENG, P., and XIONG, Y. Reusability and energy absorption behavior of 4D printed continuous fiber-reinforced auxetic composite structures. Composites Part A: Applied Science and Manufacturing, 169, 107529 (2023)
[3]	YANG, Q., LIU, R. Y., LI, Z. Y., GU, B. H., SUN, B. Z., and ZHANG, W. Axial and radial reversibility and energy absorption behaviors of braided shape memory composite thin-walled tubes. Thin-Walled Structures, 196, 111524 (2024)
[4]	NAMVAR, N., ZOLFAGHARIAN, A., VAKILI-TAHAMI, F., and BODAGHI, M. Reversible energy absorption of elasto-plastic auxetic, hexagonal, and AuxHex structures fabricated by FDM 4D printing. Smart Materials and Structures, 31(5), 055021 (2022)
[5]	MEHRPOUYA, M., EDELIJN, T., IBRAHIM, M., MOHEBSHAHEDIN, A., GISARIO, A., and BARLETTA, M. Functional behavior and energy absorption characteristics of additively manufactured smart sandwich structures. Advanced Engineering Materials, 24(9), 2200677 (2022)
[6]	ZHAO, W., LI, N., LIU, L. W., LENG, J. S., and LIU, Y. J. Mechanical behaviors and applications of shape memory polymer and its composites. Applied Physics Reviews, 10, 011306 (2023)
[7]	LAN, X., LIU, L. W., ZHANG, F. H., LIU, Z. X., WANG, L. L., LI, Q. F., PENG, F., HAO, S. D., DAI, W. X., WAN, X., TANG, Y., WANG, M., HAO, Y. Y., YANG, Y., YANG, C., LIU, Y. J., and LENG, J. S. World’s first spaceflight on-orbit demonstration of a flexible solar array system based on shape memory polymer composites. Science China Technological Sciences, 63(8), 1436–1451 (2020)
[8]	ZHANG, D., LIU, L. W., XU, P. F., ZHAO, Y. Z., LI, Q. F., LAN, X., ZOU, X., LI, Y., HE, Y. C., LIU, Y. J., and LENG, J. S. Ancient papyrus scroll-inspired self-deployable mechanism based on shape memory polymer composites for Mars explorations. Composite Structures, 304, 116391 (2023)
[9]	MING, G. Q., LIU, L. W., LIU, Y. J., and LENG, J. S. Space deployable parabolic reflector based on shape memory polymer composites. Composite Structures, 304, 116327 (2023)
[10]	ZENG, C. J., LIU, L. W., DU, Y., YU, M., XIN, X. Z., XU, P. L., LI, F. F., WANG, L. L., ZHANG, F. H., LIU, Y. J., and LENG, J. S. Space-deployable device based on shape memory cyanate ester composites. Composites Communications, 42, 101690 (2023)
[11]	XIN, X. Z., LIN, C., LI, B. X., ZENG, C. J., LIU, L. W., LIU, Y. J., and LENG, J. S. Self-driven intelligent curved hinge based on shape-morphing composites. Composite Structures, 345, 118329 (2024)
[12]	ZHAO, W., LIU, L. W., LAN, X., LENG, J. S., and LIU, Y. J. Thermomechanical constitutive models of shape memory polymers and their composites. Applied Mechanics Reviews, 75(2), 020802 (2023)
[13]	LI, G. Q. and WANG, A. Q. Cold, warm, and hot programming of shape memory polymers. Journal of Polymer Science Part B: Polymer Physics, 54(14), 1319–1339 (2016)
[14]	SHAHI, K., BOOMURUGAN, R., and VELMURUGAN, R. Cold programming of epoxy-based shape memory polymer. Structures, 29, 2082–2093 (2021)
[15]	SOLEYMAN, E., RAHMATABADI, D., SOLTANMOHAMMADI, K., ABEROUMAND, M., GHASEMI, I., ABRINIA, K., BANIASSADI, M., WANG, K., and BAGHANI, M. Shape memory performance of PETG 4D printed parts under compression in cold, warm, and hot programming. Smart Materials and Structures, 31(8), 085002 (2022)
[16]	ABEROUMAND, M., SOLTANMOHAMMADI, K., RAHMATABADI, D., SOLEYMAN, E., GHASEMI, I., BANIASSADI, M., ABRINIA, K., BODAGHI, M., and BAGHANI, M. 4D printing of polyvinyl chloride (PVC): a detailed analysis of microstructure, programming, and shape memory performance. Macromolecular Materials and Engineering, 308(7), 2200677 (2023)
[17]	RAHMATABADI, D., ABEROUMAND, M., SOLTANMOHAMMADI, K., SOLEYMAN, E., GHASEMI, I., BANIASSADI, M., ABRINIA, K., BODAGHI, M., and BAGHANI, M. Toughening PVC with biocompatible PCL softeners for supreme mechanical properties, morphology, shape memory effects, and FFF printability. Macromolecular Materials and Engineering, 308(10), 2300114 (2023)
[18]	RAHMATABADI, D., GHASEMI, I., BANIASSADI, M., ABRINIA, K., and BAGHANI, M. 4D printing of PLA-TPU blends: effect of PLA concentration, loading mode, and programming temperature on the shape memory effect. Journal of Materials Science, 58(16), 7227–7243 (2023)
[19]	HONARI, P., RAHMATABADI, D., BAYATI, A., RASSI, E., GHASEMI, I., BANIASSADI, M., BODAGHI, M., and BAGHANI, M. Simultaneous 4D printing and In-Situ foaming for tailoring shape memory behaviors in polylactic acid foams. Manufacturing Letters, 43, 33–36 (2025)
[20]	RAHMATABADI, D., SOLTANMOHAMMADI, K., ABEROUMAND, M., SOLEYMAN, E., GHASEMI, I., BANIASSADI, M., ABRINIA, K., BODAGHI, M., and BAGHANI, M. 4D printing of porous PLA-TPU structures: effect of applied deformation, loading mode and infill pattern on the shape memory performance. Physica Scripta, 99(2), 025013 (2024)
[21]	ABEROUMAND, M., RAHMATABADI, D., SOLTANMOHAMMADI, K., SOLEYMAN, E., GHASEMI, I., BANIASSADI, M., ABRINIA, K., BODAGHI, M., and BAGHANI, M. Stress recovery and stress relaxation behaviors of PVC 4D printed by FDM technology for high-performance actuation applications. Sensors and Actuators A: Physical, 361, 114572 (2023)
[22]	FALLAH, A., ASIF, S., GOKCER, G., and KOC, B. 4D printing of continuous fiber-reinforced electroactive smart composites by coaxial additive manufacturing. Composite Structures, 316, 117034 (2023)
[23]	DEZAKI, M. L. and BODAGHI, M. 4D printing and programming of continuous fibre-reinforced shape memory polymer composites. European Polymer Journal, 210, 112988 (2024)
[24]	NGUYEN, T. D, QI, H. J., CASTRO, F., and LONG, K. N. A thermoviscoelastic model for amorphous shape memory polymers: incorporating structural and stress relaxation. Journal of the Mechanics and Physics of Solids, 56(9), 2792–2814 (2008)
[25]	NGUYEN, T. D., YAKACKI, C. M., BRAHMBHATT, P. D., and CHAMBERS, M. L. modeling the relaxation mechanisms of amorphous shape memory polymers. Advanced Materials, 23(25), 2778 (2011)
[26]	LI, G. Q. and XU, W. Thermomechanical behavior of thermoset shape memory polymer programmed by cold-compression: testing and constitutive modeling. Journal of the Mechanics and Physics of Solids, 59(6), 1231–1250 (2011)
[27]	WANG, Y. Y., WANG, J. C., and PENG, X. Q. Refinement of a 3D finite strain viscoelastic constitutive model for thermally induced shape memory polymers. Polymer Testing, 96, 107139 (2021)
[28]	ABISHERA, R., VELMURUGAN, R., and GOPAL, K. V. N. Reversible plasticity shape memory effect in epoxy/CNT nanocomposites — a theoretical study. Composites Science and Technology, 141, 145–153 (2017)
[29]	GU, J. P., LENG, J. S., and SUN, H. Y. A constitutive model for amorphous shape memory polymers based on thermodynamics with internal state variables. Mechanics of Materials, 111, 1–14 (2017)
[30]	ZENG, H., LENG, J. S., GU, J. P., and SUN, H. Y. A thermoviscoelastic model incorporated with uncoupled structural and stress relaxation mechanisms for amorphous shape memory polymers. Mechanics of Materials, 124, 18–25 (2018)
[31]	DAI, L., TIAN, C. S., and XIAO, R. Modeling the thermo-mechanical behavior and constrained recovery performance of cold-programmed amorphous shape-memory polymers. International Journal of Plasticity, 127, 102654 (2020)
[32]	WANG, Y. Y., ZHU, F. L., RAO, Q., and PENG, X. Q. A 3D finite strain viscoelastic model with uncoupled structural and stress relaxations for shape memory polymers. Polymer Testing, 103, 107373 (2021)
[33]	LU, L., WU, S., and ZHAO, R. R. Mechanics of magnetic-shape memory polymers. Journal of the Mechanics and Physics of Solids, 190, 105742 (2024)
[34]	SU, X. B. and PENG, X. Q. A 3D finite strain viscoelastic constitutive model for thermally induced shape memory polymers based on energy decomposition. International Journal of Plasticity, 110, 166–182 (2018)
[35]	ZHAO, W., LIU, L. W., LENG, J. S., and LIU, Y. J. Thermo-mechanical behavior prediction of particulate reinforced shape memory polymer composite. Composites Part B: Engineering, 179, 107455 (2019)
[36]	ZHAO, W., LIU, L. W., LENG, J. S., and LIU, Y. J. Thermo-mechanical behavior prediction of shape memory polymer based on the multiplicative decomposition of the deformation gradient. Mechanics of Materials, 143, 103263 (2020)
[37]	BOATTI, E., SCALET, G., and AURICCHIO, F. A three-dimensional finite-strain phenomenological model for shape-memory polymers: formulation, numerical simulations, and comparison with experimental data. International Journal of Plasticity, 83, 153–177 (2016)
[38]	SU, X. B., WANG, Y. Y., and PENG, X. Q. An anisotropic visco-hyperelastic model for thermally-actuated shape memory polymer-based woven fabric-reinforced composites. International Journal of Plasticity, 129, 102697 (2020)
[39]	XIAO, R., SUN, H. G., and CHEN, W. A finite deformation fractional viscoplastic model for the glass transition behavior of amorphous polymers. International Journal of Non-Linear Mechanics, 93, 7–14 (2017)
[40]	GUO, Z. Y., PENG, X. Q., and MORAN, B. Mechanical response of neo-Hookean fiber reinforced incompressible nonlinearly elastic solids. International Journal of Solids and Structures, 44(6), 1949–1969 (2007)
[41]	PELLICIARI, M., SIROTTI, S., ALOISIO, A., and TARANTINO, A. M. Hyperelastic model for nonlinear elastic deformations of graphene-based polymer nanocomposites. International Journal of Solids and Structures, 308, 113144 (2025)
[42]	PELLICIARI, M., SIROTTI, S., and TARANTINO, A. M. A microstructure-informed hyperelastic model for CNT-based polymer nanocomposites under large deformations. International Journal of Solids and Structures, 326, 113779 (2026)
[43]	BERGSTRÖM, J. S. and BOYCE, M. C. Large strain time-dependent behavior of filled elastomers. Mechanics of Materials, 32(11), 627644 (2000)
[44]	REESE, S., BÖL, M., and CHRIST, D. Finite element-based multi-phase modelling of shape memory polymer stents. Computer Methods in Applied Mechanics and Engineering, 199(21-22), 1276–1286 (2010)
[45]	TOOL, A. Q. Relation between inelastic deformability and thermal expansion of glass in its annealing range. Journal of the American Ceramic Society, 29(9), 240–253 (1946)
[46]	ADAM, G. and GIBBS, J. H. On the temperature dependence of cooperative relaxation properties in glass-forming liquids. The Journal of Chemical Physics, 43(1), 139–146 (1965)
[47]	BOYCE, M. C., WEBER, G. G., and PARKS, D. M. On the kinematics of finite strain plasticity. Journal of the Mechanics and Physics of Solids, 37(5), 647–665 (1989)
[48]	QI, H. J., NGUYEN, T. D., CASTRO, F., YAKACKI, C. M., and SHANDAS, R. Finite deformation thermo-mechanical behavior of thermally induced shape memory polymers. Journal of the Mechanics and Physics of Solids, 56(5), 1730–1751 (2008)
[49]	ABISHERA, R., VELMURUGAN, R., and GOPAL, K. V. N. Free, partial, and fully constrained recovery analysis of cold-programmed shape memory epoxy/carbon nanotube nanocomposites: experiments and predictions. Journal of Intelligent Material Systems and Structures, 29(10), 2164–2176 (2018)
[50]	SHAHI, K. and RAMACHANDRAN, V. Theoretical and experimental investigation of shape memory polymers programmed below glass transition temperature. Polymers, 14(13), 2753 (2022)
[51]	ABISHERA, R., VELMURUGAN, R., and GOPAL, K. V. N. Reversible plasticity shape memory effect in carbon nanotubes reinforced epoxy nanocomposites. Composites Science and Technology, 137, 148–158 (2016)
[52]	WANG, F. F., YUAN, C., WANG, D., ROSEN, D. W., and GE, Q. A phase evolution based constitutive model for shape memory polymer and its application in 4D printing. Smart Materials and Structures, 29(5), 055016 (2020)
[53]	CHEN, J. J, ZHOU, X. Q., DU, C., WANG, Q. H., and PENG, X. Q. A constitutive model for carbon fabric-reinforced shape memory polymer composites based on Eshelby’s inclusion theorem. Composites Science and Technology, 261, 111042 (2025)
[54]	CHEN, J. J., OUYANG, J. W., ZHOU, X. Q., LIAO, H., DU, C., ZHANG, T., WANG, Q. H., and PENG, X. Q. Experiments and simulations on the anisotropic behavior of carbon woven fabric-reinforced shape memory polymer composites. Composites Part B: Engineering, 306, 112752 (2025)
[55]	MAHIEUX, C. A. and REIFSNIDER, K. L. Property modeling across transition temperatures in polymers: a robust stiffness-temperature model. Polymer, 42(7), 3281–3291 (2001)
[56]	WESTBROOK, K. K., KAO, P. H., CASTRO, F., DING, Y. F., and QI, H. J. A 3D finite deformation constitutive model for amorphous shape memory polymers: a multi-branch modeling approach for nonequilibrium relaxation processes. Mechanics of Materials, 43(12), 853–869 (2011)

Physical quantity	Significance
η; C	Entropy per unit reference volume; heat capacity
T; T_ref	Temperature; thermodynamic reference temperature
λ_L; λ_eff	Number of Kuhn segments; effective stretch
μ_neq; μ_ne	Neo-Hookean characteristic stiffness; rubbery shear modulus
q; k	Heat flux vector; heat conduction coefficient
α_r and α_g	Coefficients of thermal expansion (CTE) in the rubbery and glassy states
τ_R	Structure relaxation time
τ_s	Stress relaxation time
η_ref	Reference entropy at the thermodynamic reference temperature
ΔG; s_y	Activation parameter of stress relaxation; yield strength
Q; K_B	Activation parameter; Boltzmann’s constant
B_R; C_s	Activation parameter of structure relaxation; coupling factor
