Nonlinear forced vibration in a subcritical regime of a porous functionally graded pipe conveying fluid with a retaining clip

doi:10.1007/s10483-025-3206-9

Abstract

Abstract:

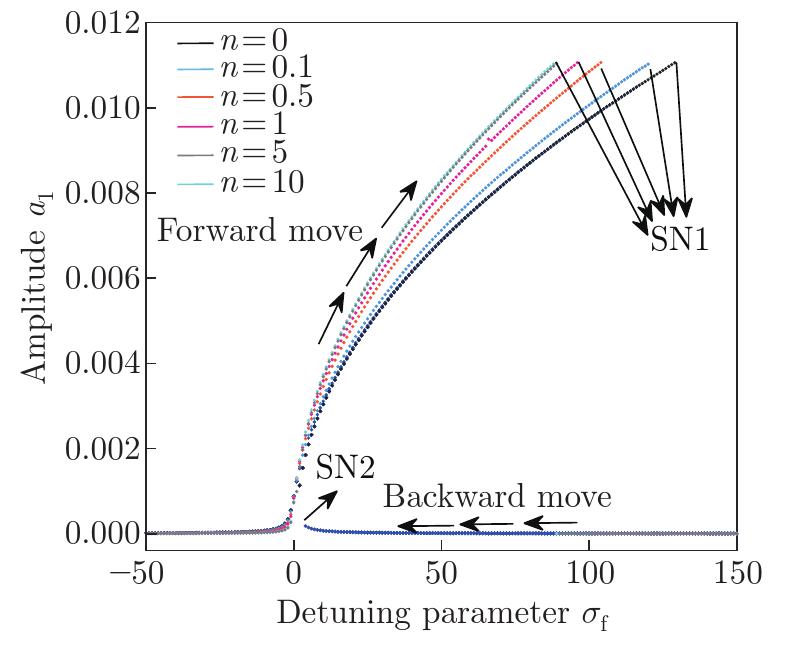

This study examines the nonlinear behaviors of a clamped-clamped porous pipe made of a functionally graded material (FGM) that conveys fluids and is equipped with a retaining clip, focusing on primary resonance and subcritical dynamics. The nonlinear governing equations for the FGM pipe are derived by the extended Hamilton's principle, and subsequently discretized through the application of the Galerkin method. The direct method of multi-scales is then used to solve the derived equations. A thorough analysis of various parameters, including the clip stiffness, the power-law index, the porosity, and the clip location, is conducted to gain a comprehensive understanding of the system's nonlinear dynamics. Through the analysis of the first natural frequency, the study highlights the influence of the flow velocity and the clip stiffness, while the comparisons with metallic pipes emphasize the role of FGM composition. The examination of the forced response curves reveals saddle-node bifurcations and their dependence on parameters such as the detuning parameter and the power-law index, offering valuable insights into the system's nonlinear resonant behavior. Furthermore, the frequency-response curves illustrate the hardening nonlinearities influenced by factors such as the porosity and the clip stiffness, revealing nuanced effects on the system response and resonance characteristics. This comprehensive analysis enhances the understanding of nonlinear behaviors in FGM porous pipes with a retaining clip, providing key insights for practical engineering applications in system design and optimization.

Key words: functionally graded material (FGM) pipe conveying fluid, retaining clip, porosity, primary resonance, subcritical regime

2010 MSC Number:

O175.2

M. GHOLAMI, M. EFTEKHARI. Nonlinear forced vibration in a subcritical regime of a porous functionally graded pipe conveying fluid with a retaining clip. Applied Mathematics and Mechanics (English Edition), 2025, 46(1): 101-122.

TrendMD

Figures/Tables 19

Fig. 1

Table 1

Material properties of the FGM pipe"

Item	Description	Value
$L$ /m	Pipe length	1
$D o$ /mm	Outer diameter	8
$D i$ /mm	Inner diameter	6.4
$E c$ /GPa	Young's modulus of ceramic	348.43
$E m$ /GPa	Young's modulus of metal	201.04
$ρ c$ / $(kg ⋅ m − 3)$	Ceramic density	2 370
$ρ m$ / $(kg ⋅ m − 3)$	Metal density	8 166
$ρ f$ / $(kg ⋅ m − 3)$	Fluid density	872
$p$ /MPa	Fluid pressure	28

Table 1

Fig. 2

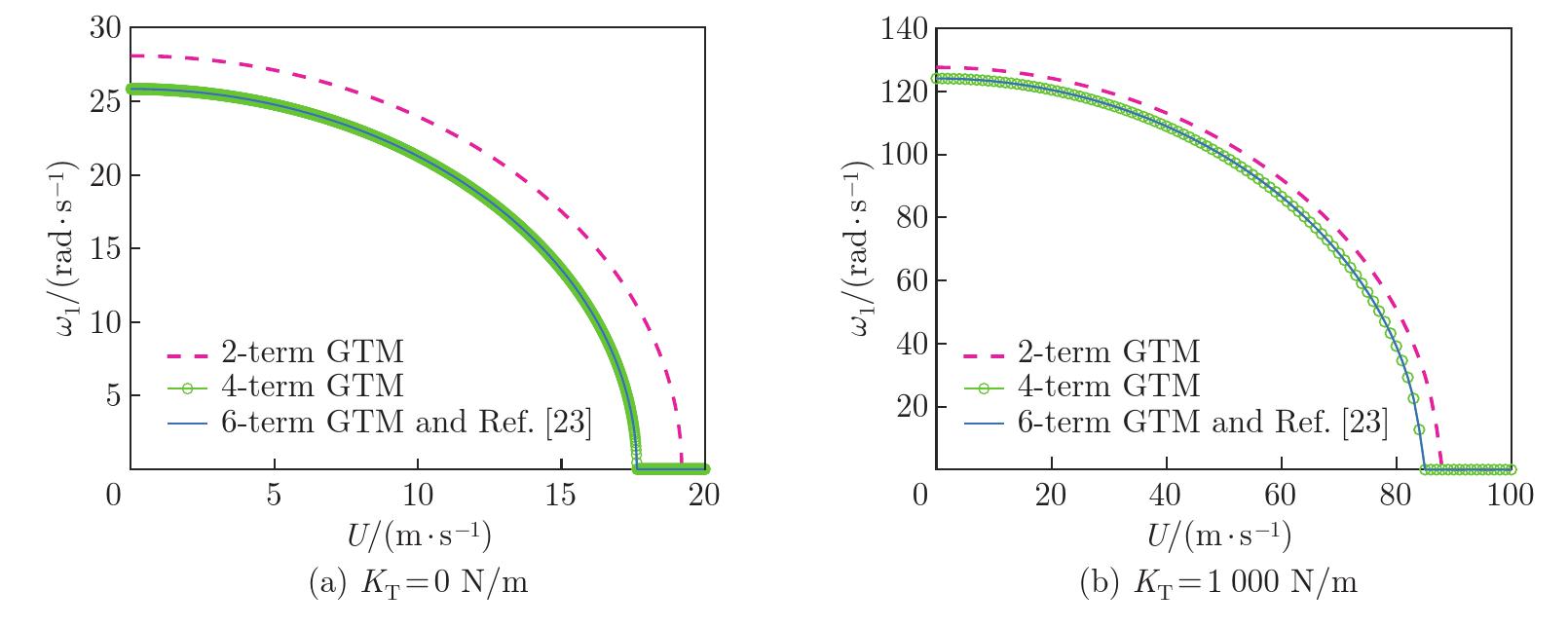

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

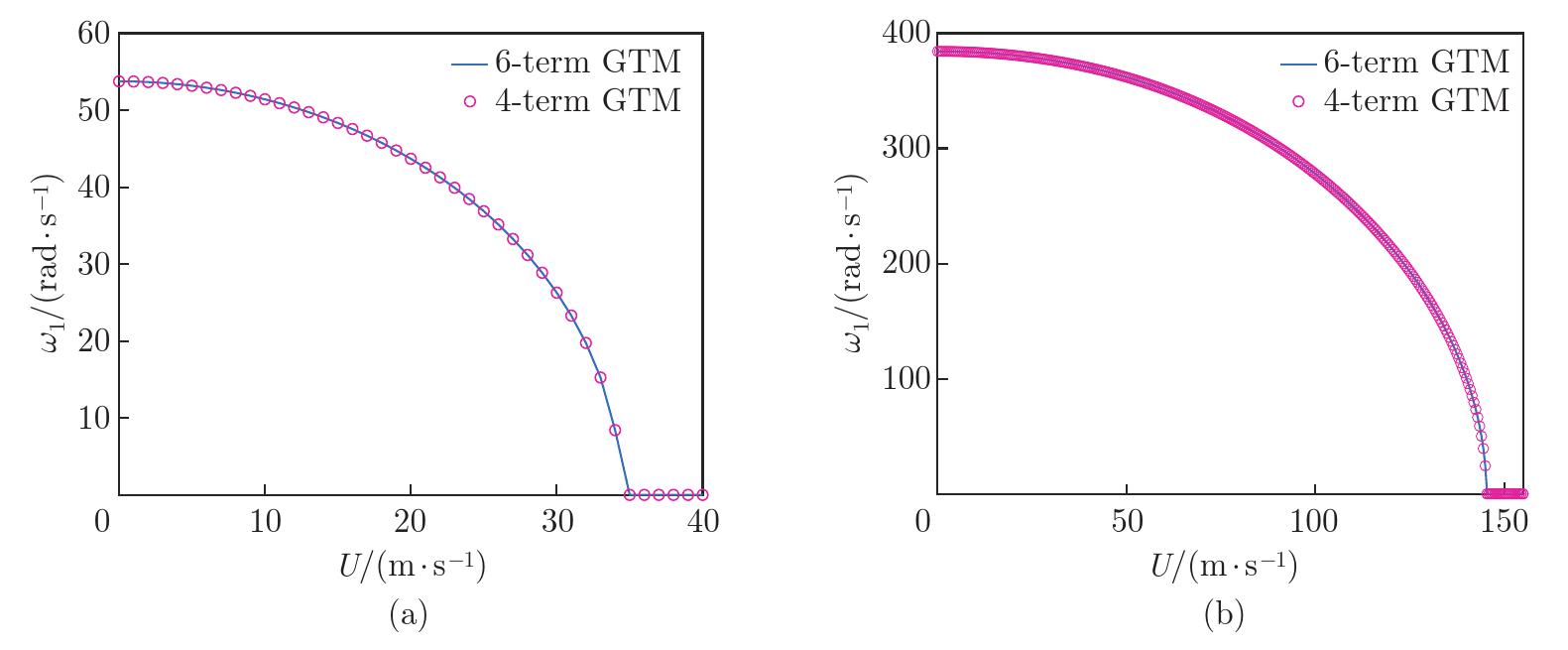

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 18

References 36

[1]	PAÏDOUSSIS, M. P. Pipes conveying fluid: a fertile dynamics problem. Journal of Fluids and Structures, 114, 103664 (2022)
[2]	IBRAHIM, R. A. Overview of mechanics of pipes conveying fluids — part I: fundamental studies. Journal of Pressure Vessel Technology, 132(3), 034001 (2010)
[3]	IBRAHIM, R. A. Mechanics of pipes conveying fluids — part II: applications and fluid elastic problems. Journal of Pressure Vessel Technology, 133(2), 4001270 (2011)
[4]	CHAI, Q., ZENG, J., MA, H., LI, K., and HAN, Q. A dynamic modeling approach for nonlinear vibration analysis of the L-type pipeline system with clamps. Chinese Journal of Aeronautics, 33(12), 3253–3265 (2020)
[5]	LIN, J., ZHAO, Y., ZHU, Q., HAN, S., MA, H., and HAN, Q. Nonlinear characteristic of clamp loosing in aero-engine pipeline system. IEEE Access, 9, 64076–64084 (2021)
[6]	ZHOU, J., CHANG, X., XIONG, Z., and LI, Y. Stability and nonlinear vibration analysis of fluid-conveying composite pipes with elastic boundary conditions. Thin-Walled Structures, 179, 109597 (2022)
[7]	LI, Q., LIU, W., LU, K., and YUE, Z. Nonlinear parametric vibration of a fluid-conveying pipe flexibly restrained at the ends. Acta Mechanica Solida Sinica, 33(3), 327–346 (2020)
[8]	MA, Y., YOU, Y., CHEN, K., and FENG, A. Analysis of vibration stability of fluid conveying pipe on the two-parameter foundation with elastic support boundary conditions. Journal of Ocean Engineering and Science, 9(6), 616–629 (2022)
[9]	ASKARIAN, A. R., PERMOON, M. R., ZAHEDI, M., and SHAKOURI, M. Stability analysis of viscoelastic pipes conveying fluid with different boundary conditions described by fractional Zener model. Applied Mathematical Modeling, 103, 750–763 (2022)
[10]	MAO, X. Y., SHU, S., FAN, X., DING, H., and CHEN, L. Q. An approximate method for pipes conveying fluid with strong boundaries. Journal of Sound and Vibration, 505, 116157 (2021)
[11]	WEI, S., YAN, X. FAN, X., MAO, X. Y., DING, H., and CHEN, L. Q. Vibration of fluid-conveying pipe with nonlinear supports at both ends. Applied Mathematics and Mechanics (English Edition), 43(6), 845–862 (2022) https://doi.org/10.1007/s10483-022-2857-6
[12]	OYELADE, A. O., EHIGIE, J. O., OROLU, K., and OYEDIRAN, A. O. Dynamics of horizontal pipes conveying two phase flow with nonlinear boundary conditions. Mechanical Systems and Signal Processing, 217, 111520 (2024)
[13]	ZHANG, T., OUYANG, H., ZHANG, Y. O., and LV, B. L. Nonlinear dynamics of straight fluid-conveying pipes with general boundary conditions and additional springs and masses. Applied Mathematical Modeling, 40(17-18), 7880–7900 (2016)
[14]	GAO, P. X., ZHAI, J. Y., YAN, Y. Y., HAN, Q. K., QU, F. Z., and CHEN, X. H. A model reduction approach for the vibration analysis of hydraulic pipeline system in aircraft. Aerospace Science and Technology, 49, 144–153 (2016)
[15]	GAO, P., ZHANG, Y., LIU, X., YU, T., and WANG, J. Vibration analysis of aero parallel-pipeline systems based on a novel reduced order modeling method. Journal of Mechanical Science and Technology, 34(8), 3137–3146 (2020)
[16]	CHEN, W., CAO, Y., CHEN, S., GUO, X., MA, H., and WEN, B. Semi-analytical dynamic modeling of parallel pipeline considering soft nonlinearity of clamp: a simulation and experimental study. Mechanical Systems and Signal Processing, 201, 110648 (2023)
[17]	CAO, Y., CHEN, W., MA, H., LI, H., WANG, B., and HAN, Q. Dynamic modeling and experimental verification of clamp-pipeline system with soft nonlinearity. Nonlinear Dynamics, 111(19), 17725–17748 (2023)
[18]	ZHANG, L., ZHANG, T., OUYANG, H., LI, T., and ZHANG, S. Receptance-based natural frequency assignment of a real fluid-conveying pipeline system with interval uncertainty. Mechanical Systems and Signal Processing, 179, 109321 (2022)
[19]	ZHANG, L., ZHANG, T., OUYANG, H., LI, T., and YOU, M. Natural frequency assignment of a pipeline through structural modification in layout optimization of elastic supports. Journal of Sound and Vibration, 561, 117702 (2023)
[20]	ZHANG, Y., SUN, W., JI, W., and WANG, B. Hoop layouts optimization for vibration reduction of L-shaped pipeline based on substructure-analytical model and genetic algorithm. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 45(5), 243 (2023)
[21]	LI, X., LI, W., SHI, J., LI, Q., and WANG, S. Pipelines vibration analysis and control based on clamps' locations optimization of multi-pump system. Chinese Journal of Aeronautics, 35(6), 352–366 (2022)
[22]	JING, J., SHAO, Z. H., MAO, X. Y., DING, H., and CHEN, L. Q. Forced resonance of a buckled beam flexibly restrained at the inner point. Engineering Structures, 303, 117444 (2024)
[23]	DENG, T. C., DING, H., and CHEN, L. Q. Critical velocity and supercritical natural frequencies of fluid-conveying pipes with retaining clips. International Journal of Mechanical Sciences, 222, 107254 (2022)
[24]	DOU, B., DING, H., MAO, X. Y., WEI, S., and CHEN, L. Q. Dynamic modeling of fluid-conveying pipes restrained by a retaining clip. Applied Mathematics and Mechanics (English Edition), 44(8), 1225–1240 (2023) https://doi.org/10.1007/s10483-023-3016-9
[25]	DOU, B., DING, H., MAO, X. Y., FENG, H. R., and CHEN, L. Q. Modeling and parametric studies of retaining clips on pipes. Mechanical Systems and Signal Processing, 186, 109912 (2023)
[26]	DOU, B., LI, M., and DING, H. A novel retaining clip for vibration reduction of fluid-conveying pipes by piecewise constraints. Mechanical Systems and Signal Processing, 210, 111159 (2024)
[27]	DENG, T. C., DING, H., MAO, X. Y., and CHEN, L. Q. Natural vibration of pipes conveying high-velocity fluids with multiple distributed retaining clips. Nonlinear Dynamics, 111(20), 18819–18836 (2023)
[28]	WATTANASAKULPONG, N. and UNGBHAKORN, V. Linear and nonlinear vibration analysis of elastically restrained ends FGM beams with porosities. Aerospace Science and Technology, 32(1), 111–120 (2014)
[29]	TANG, Y. and YANG, T. Post-buckling behavior and nonlinear vibration analysis of a fluid-conveying pipe composed of functionally graded material. Composite Structures, 185, 393–400 (2018)
[30]	REDDY, R. S., PANDA, S., and GUPTA, A. Nonlinear dynamics of an inclined FG pipe conveying pulsatile hot fluid. International Journal of Non-Linear Mechanics, 118, 103276 (2020)
[31]	ZHU, B., XU, Q., LI, M., and LI, Y. Nonlinear free and forced vibrations of porous functionally graded pipes conveying fluid and resting on nonlinear elastic foundation. Composite Structures, 252, 112672 (2020)
[32]	ZHEN, Y., GONG, Y., and TANG, Y. Nonlinear vibration analysis of a supercritical fluid-conveying pipe made of functionally graded material with initial curvature. Composite Structures, 268, 113980 (2021)
[33]	MAO, X. Y., JING, J., DING, H., and CHEN, L. Q. Dynamics of axially functionally graded pipes conveying fluid. Nonlinear Dynamics, 111(12), 11023–11044 (2023)
[34]	CHEN, L. Q. and TANG, Y. Q. Combination and principal parametric resonances of axially accelerating viscoelastic beams: recognition of longitudinally varying tensions. Journal of Sound and Vibration, 330(23), 5598–5614 (2011)
[35]	TANG, Y. Q., ZHANG, D. B., and GAO, J. M. Parametric and internal resonance of axially accelerating viscoelastic beams with the recognition of longitudinally varying tensions. Nonlinear Dynamics, 83(1-2), 401–418 (2016)
[36]	MAO, X. Y., DING, H., and CHEN, L. Q. Steady-state response of a fluid-conveying pipe with 3:1 internal resonance in supercritical regime. Nonlinear Dynamics, 86(2), 795–809 (2016)
