Bending solutions of Reddy beams based on modified couple stress theory in terms of Euler-Bernoulli beams

doi:10.1007/s10483-026-3382-8

Abstract

Abstract:

The bending behavior of microbeams in micro-nano devices exhibits significant size effects, making accurate prediction of their mechanical behaviors crucial for device reliability. This paper employs the modified couple stress theory (MCST) and derives the governing equations for the Reddy beam theory (RBT) via the principle of virtual work. By considering the load equivalence, the analytical solutions for the bending problem are derived and expressed as the functional relations based on the Euler-Bernoulli beam model. Once the Euler-Bernoulli beam solution is obtained, the exact solution for the corresponding Reddy beam can be directly determined through these functional relations and boundary conditions. Analytical solutions for the doubly simply-supported (S-S), clamped-free (C-F), and clamped-clamped (C-C) boundary conditions are derived and validated through comparison with the results of previous studies. This study clarifies the analytical relationship between the two beam theories at the micro-scale, enabling exact mechanical solutions for higher-order shear deformation beams without solving complex higher-order governing equations.

Key words: Reddy beam theory (RBT), Euler-Bernoulli beam theory (EBT), modified couple stress theory (MCST), bending solution

2010 MSC Number:

O342

Shenao ZHAO, Lei LI, Pengpeng SHI. Bending solutions of Reddy beams based on modified couple stress theory in terms of Euler-Bernoulli beams. Applied Mathematics and Mechanics (English Edition), 2026, 47(5): 1085-1104.

TrendMD

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: https://www.amm.shu.edu.cn/EN/10.1007/s10483-026-3382-8

https://www.amm.shu.edu.cn/EN/Y2026/V47/I5/1085

Figures/Tables 9

Fig. 1

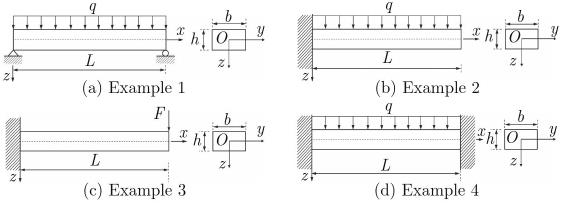

Fig. 2

Table 1

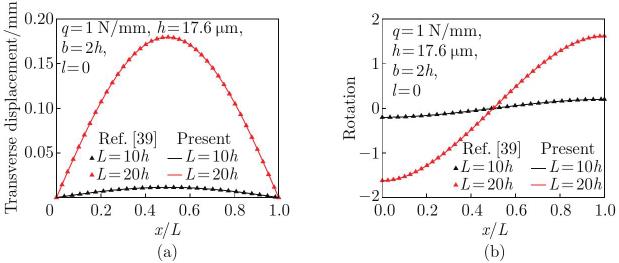

Fig. 3

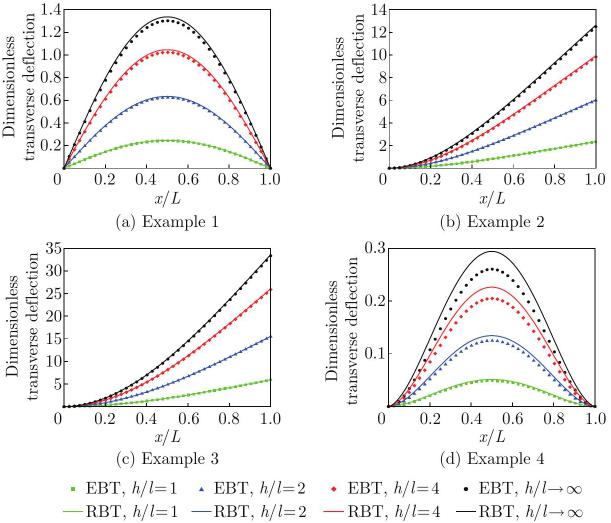

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 43

[1]	LIU, J. S., MENG, S., and NIU, J. G. Examination of the complementary energy principle in modified couple stress theory and its application for analysis of size effects in the internal force field of functionally graded microbeams. Applied Mathematical Modelling, 137, 115662 (2025)
[2]	THAKUR, P. and GULIAL, P. Investigation of non-homogeneous thick-walled cylinder ceramic matrix composites for biochemical and medical innovations. International Journal of Hydromechatronics, 8(4), 468–486 (2025)
[3]	SAE-LONG, W., LIMKATANYU, S., SUKONTASUKKUL, P., DAMRONGWIRIYANUPAP, N., RUNGAMORNRAT, J., and PRACHASAREE, W. Fourth-order strain gradient bar-substrate model with nonlocal and surface effects for the analysis of nanowires embedded in substrate media. Facta Universitatis, Series: Mechanical Engineering, 19(4), 657–680 (2021)
[4]	TOUPIN, R. A. Elastic materials with couple-stresses. Archive for Rational Mechanics and Analysis, 11(1), 385–414 (1962)
[5]	YANG, F., CHONG, A. C. M., LAM, D. C. C., and TONG, P. Couple stress based strain gradient theory for elasticity. International Journal of Solids and Structures, 39(10), 2731–2743 (2002)
[6]	MINDLIN, R. D. and ESHEL, N. N. On first strain-gradient theories in linear elasticity. International Journal of Solids and Structures, 4(1), 109–124 (1968)
[7]	NGUYEN, T. B., REDDY, J. N., RUNGAMORNRAT, J., LAWONGKERD, J., SENJUNTICHAI, T., and LUONG, V. H. Nonlinear analysis for bending, buckling and post-buckling of nano-beams with nonlocal and surface energy effects. International Journal of Structural Stability and Dynamics, 19(11), 1950130 (2019)
[8]	LIMKATANYU, S., SAE-LONG, W., RUNGAMORNRAT, J., BUACHART, C., SUKONTASUKKUL, P., KEAWSAWASVONG, S., and CHINDAPRASIRT, P. Bending, buckling and free vibration analyses of nanobeam-substrate medium systems. Facta Universitatis, Series: Mechanical Engineering, 20(3), 561–587 (2022)
[9]	PARK, S. K. and GAO, X. L. Bernoulli-Euler beam model based on a modified couple stress theory. Journal of Micromechanics and Microengineering, 16(11), 2355–2359 (2006)
[10]	JOČKOVIĆ, M., RADENKOVIĆ, G., NEFOVSKA-DANILOVIĆ, M., and BAITSCH, M. Free vibration analysis of spatial Bernoulli-Euler and Rayleigh curved beams using isogeometric approach. Applied Mathematical Modelling, 71, 152–172 (2019)
[11]	NGUYEN, T. B., HENPRASERT, K., SOPITTANON, T., TRAN, M. T., RUNGAMORNRAT, J., and LUONG, V. H. Influence of nonlocal and surface effects on nonlinear responses of nano-systems and nano-networks. International Journal for Computational Methods in Engineering Science and Mechanics, 26(5), 315–329 (2025)
[12]	WANG, Y. G., LIN, W. H., and LIU, N. Nonlinear bending and post-buckling of extensible microscale beams based on modified couple stress theory. Applied Mathematical Modelling, 39(1), 117–127 (2015)
[13]	ANSARI, R., ASHRAFI, M. A., and ARJANGPAY, A. An exact solution for vibrations of postbuckled microscale beams based on the modified couple stress theory. Applied Mathematical Modelling, 39(10-11), 3050–3062 (2015)
[14]	ZHANG, S. H., FAN, W., and YANG, C. J. Semi-analytical solution to the steady-state periodic dynamic response of an infinite beam carrying a moving vehicle. International Journal of Mechanical Sciences, 226, 107409 (2022)
[15]	SAE-LONG, W., LIMKATANYU, S., RUNGAMORNRAT, J., PRACHASAREE, W., SUKONTASUKKUL, P., and SEDIGHI, H. M. A rational beam-elastic substrate model with incorporation of beam-bulk nonlocality and surface-free energy. The European Physical Journal Plus, 136(1), 80 (2021)
[16]	VO, D., SUTTAKUL, P., RUNGAMORNRAT, J., and NANAKORN, P. Static analysis of planar arbitrarily curved microbeams with the modified couple stress theory and Euler-Bernoulli beam model. Applied Mathematical Modelling, 112, 358–390 (2022)
[17]	ASGHARI, M., RAHAEIFARD, M., KAHROBAIYAN, M. H., and AHMADIAN, M. T. The modified couple stress functionally graded Timoshenko beam formulation. Materials & Design, 32(3), 1435–1443 (2011)
[18]	DOEVA, O., MASJEDI, P. K., and WEAVER, P. M. Static deflection of fully coupled composite Timoshenko beams: an exact analytical solution. European Journal of Mechanics A/Solids, 81, 103975 (2020)
[19]	SHENG, G. G. and WANG, X. Nonlinear forced vibration of functionally graded Timoshenko microbeams with thermal effect and parametric excitation. International Journal of Mechanical Sciences, 155, 405–416 (2019)
[20]	LUO, J., ZHU, S. Y., and ZHAI, W. M. Exact closed-form solution for free vibration of Euler-Bernoulli and Timoshenko beams with intermediate elastic supports. International Journal of Mechanical Sciences, 213, 106842 (2022)
[21]	ŞIMŞEK, M. and YURTCU, H. H. Analytical solutions for bending and buckling of functionally graded nanobeams based on the nonlocal Timoshenko beam theory. Composite Structures, 97, 378–386 (2013)
[22]	VO, D., AUNG, Z. Y., LE, T. M., SUTTAKUL, P., ATROSHCHENKO, E., and RUNGAMORNRAT, J. Analysis of planar arbitrarily curved microbeams with simplified strain gradient theory and Timoshenko-Ehrenfest beam model. Mathematics and Mechanics of Solids, 29(9), 1787–1828 (2024)
[23]	RAKOWSKI, J. The interpretation of the shear locking in beam elements. Computers and Structures, 37(5), 769–776 (1990)
[24]	REDDY, J. N. A simple higher-order theory for laminated composite plates. Journal of Applied Mechanics, 51(4), 745–752 (1984)
[25]	TOURATIER, M. An efficient standard plate theory. International Journal of Engineering Science, 29(8), 901–916 (1991)
[26]	KARAMA, M., AFAQ, K. S., and MISTOU, S. Mechanical behaviour of laminated composite beam by the new multi-layered laminated composite structures model with transverse shear stress continuity. International Journal of Solids and Structures, 40(6), 1525–1546 (2003)
[27]	SOLDATOS, K. P. A transverse shear deformation theory for homogeneous monoclinic plates. Acta Mechanica, 94(3), 195–220 (1992)
[28]	ŞIMŞIK, M. and REDDY, J. N. Bending and vibration of functionally graded microbeams using a new higher order beam theory and the modified couple stress theory. International Journal of Engineering Science, 64, 37–53 (2013)
[29]	ZHANG, B., LI, H., KONG, L. L., SHEN, H. M., and ZHANG, X. Size-dependent static and dynamic analysis of Reddy-type micro-beams by strain gradient differential quadrature finite element method. Thin-Walled Structures, 148, 106496 (2020)
[30]	PRIYANKA, R. and PITCHAIMANI, J. Static stability and free vibration characteristics of a micro laminated beam under varying axial load using modified couple stress theory and Ritz method. Composite Structures, 281, 115028 (2022)
[31]	ARBIND, A., REDDY, J. N., and SRINIVASA, A. R. Modified couple stress-based third-order theory for nonlinear analysis of functionally graded beams. Latin American Journal of Solids and Structures, 11(3), 459–487 (2014)
[32]	DONG, R., WANG, Z. Q., HAN, B. L., SINGH, S. S. K., CHEN, C. X., and TU, T. X. Design of bearings load uniform structure and study on load uniform effect of submersible screw pump. International Journal of Hydromechatronics, 8(4), 387–411 (2025)
[33]	SHI, P. P., XIE, J., LI, H., and LI, X. Symmetric deformation of functionally graded annular structures with arbitrarily varying material properties: operator discrete approximation for variable coefficient ordinary differential equation model. Thin-Walled Structures, 209, 112911 (2025)
[34]	NATEGHI, A., SALAMAT-TALAB, M., REZAPOUR, J., and DANESHIAN, B. Size dependent buckling analysis of functionally graded micro beams based on modified couple stress theory. Applied Mathematical Modelling, 36(10), 4971–4987 (2012)
[35]	LI, S. R., CAO, D. F., and WAN, Z. Q. Bending solutions of FGM Timoshenko beams from those of the homogenous Euler-Bernoulli beams. Applied Mathematical Modelling, 37(10-11), 7077–7085 (2013)
[36]	XIA, Y. M., LI, S. R., and WAN, Z. Q. Bending solutions of FGM Reddy-Bickford beams in terms of those of the homogenous Euler-Bernoulli beams. Acta Mechanica Solida Sinica, 32(4), 499–516 (2019)
[37]	ZHAO, S. N., LI, L., and SHI, P. P. Analytical solutions of functionally graded microbeam models based on the modified couple stress theory: a comparative study of Euler-Bernoulli, Timoshenko and Reddy beams. Thin-Walled Structures, 224, 114648 (2026)
[38]	LIU, J. S. and PENG, Y. J. Phenomenon of sharp change and concise solutions for Timoshenko beam based on modified couple stress theory. Acta Mechanica, 233(7), 2595–2613 (2022)
[39]	RUOCCO, E. and REDDY, J. N. Analytical solutions of Reddy, Timoshenko and Bernoulli beam models: a comparative analysis. European Journal of Mechanics A/Solids, 99, 104953 (2023)
[40]	GROH, R. M. J. and WEAVER, P. M. Static inconsistencies in certain axiomatic higher-order shear deformation theories for beams, plates and shells. Composite Structures, 120, 231–245 (2015)
[41]	REDDY, J. N., RUOCCO, E., LOYA, J. A., and NEVES, A. M. A. Theories and analysis of functionally graded beams. Applied Sciences, 11(15), 7159 (2021)
[42]	XIE, J., LI, H., YE, Y. Q., WANG, W. S., GOU, X. F., and SHI, P. P. Physics-informed neural networks framework for functionally graded cylinder: forward analysis, inverse material identification, and stress-driven optimization. Engineering Structures, 353, 122224 (2026)
[43]	SHARIATI, M., AZIZI, B., HOSSEINI, M., and SHISHESAZ, M. On the calibration of size parameters related to non-classical continuum theories using molecular dynamics simulations. International Journal of Engineering Science, 168, 103544 (2021)

l/h	EBT		RBT
l/h	Ref. [31]	Present	Ref. [31]	Present
0	1.302 1	1.302 0	1.310 8	1.310 7
0.2	1.109 2	1.109 1	1.116 3	1.115 7
0.4	0.767 9	0.767 9	0.772 9	0.771 4
0.6	0.507 6	0.507 6	0.511 3	0.509 5
0.8	0.344 2	0.344 2	0.347 3	0.345 3
1	0.243 5	0.243 5	0.246 1	0.244 2
