Frequency and vibration responses of a magneto-rheological sandwich micro-beam based on modified couple stresstheory and finite difference method

doi:10.1007/s10483-026-3405-7

Abstract

Abstract:

In this study, the frequency and vibration responses of a sandwich micro-beam are derived based on the modified couple stress theory (MCST). The face sheets are made of pure aluminum, and a magneto-rheological (MR) core is used to control vibrations. The displacement fields are assumed based on the classical beam theory (CBT) and modified classical beam theories. Based on Hamilton’s principle, the governing equations of motion are obtained. To solve these temporal equations, the finite difference method (FDM) with an optimal number of nodes is applied. The effects of various parameters, including viscoelastic properties, magnetic fields, aspect ratio, core-to-face-sheet thickness ratio, MR materials, face sheets, and material length-scale parameters, on the frequency and vibrational response are investigated. In the literature, the effects of different parameters on the frequency response function (FRF) or vibration response are considered. The results obtained from the vibration response and FRF using the FDM show that the viscoelastic property of the MR core causes settling time in the vibration response and a decrease in the excitation frequency of the FRF. Increasing the magnetic field has a negligible effect on the excitation frequency in the FRF, but it increases the vibration response and settling time. The piezoelectric face sheets raise the FRF and suppress the vibration response of the MR sandwich micro-beam compared with the aluminum counterpart.

Key words: frequency and vibration responses, sandwich micro-beam, magneto-rheological (MR) core, modified couple stress theory (MCST), finite difference method (FDM)

2010 MSC Number:

O326

M. JAFARI, M. MOHAMMADIMEHR. Frequency and vibration responses of a magneto-rheological sandwich micro-beam based on modified couple stresstheory and finite difference method. Applied Mathematics and Mechanics (English Edition), 2026, 47(7): 1581-1602.

TrendMD

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: https://www.amm.shu.edu.cn/EN/10.1007/s10483-026-3405-7

https://www.amm.shu.edu.cn/EN/Y2026/V47/I7/1581

Figures/Tables 15

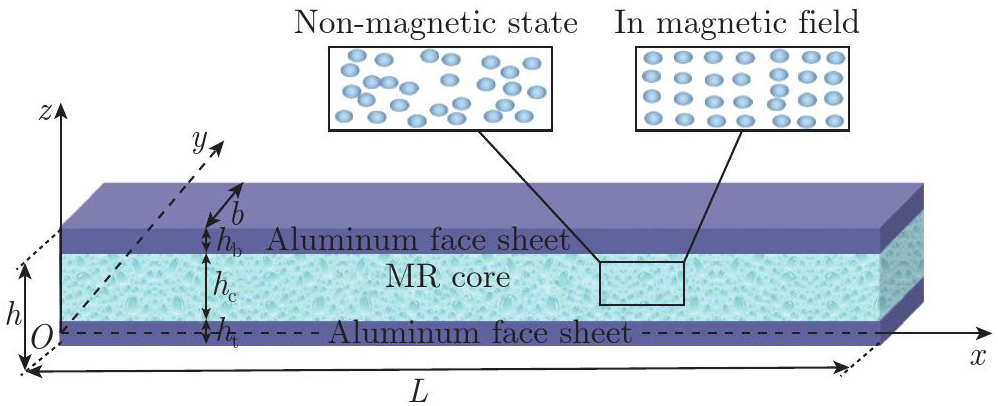

Fig. 1

Table 1

Table 2

Table 3

Table 4

Mechanical properties of the MR core"

Shear modulus/Pa	Density/(kg· m^-3)
Case 1^[48]: the unit of B is Oersted (Oe) $G ∗ = (0.612 5 + i 0.006 737 5) × 106$ without a magnetic field, $G ∗ = (1 250 + i 13.75) B$ with a magnetic field	3 500
Case 2^[49]: the unit of B is Oersted (Oe) $G ′ = 3.3691 B 2 + 4997.5 B + 0.873 × 106,$ $G ″ = − 0.9 B 2 + 812.4 B + 0.185 5 × 106$	3 500
Case 3^[50]: the unit of B is Oersted (Oe) $G ′ = (− 6.939 5 B 6 − 9.107 7 B 5 + 71.797 B 4 − 93.422 B 3 + 38.778 B 2 + 2.43 B + 2.700 6) × 1010,$ $η = 5.348 5 B 6 − 17.787 B 5 + 22.148 B 4 − 12.185 B 3 + 2.352 2 B 2 + 0.152 6 B + 0.228$	3 500

Table 4

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

References 51

[7]	YOUSEFI, A. H., KIANI, F., and ABEDI, E. Active control of sandwich microbeams vibration with FGM and viscoelastic/ER core. International Journal of Advanced Design & Manufacturing Technology, 16(3), 147–162 (2023)
[8]	GHOLAMI, S. and ALIBEIGLOO, A. Vibration analyses of circular sandwich plates with electro-rheological core and carbon nanotubes reinforced face sheets. Journal of Vibration Engineering & Technologies, 13(5), 349 (2025)
[9]	NAGIREDLA, S., JOLADARASHI, S., and KUMAR, H. Influence of magneto-rheological fluid pocket configuration on the dynamic response of the composite sandwich beam. Mechanics Based Design of Structures and Machines, 52(2), 1109–1135 (2024)
[10]	MARAGHI, Z. K., ARANI, A. G., JAMALI, S. A., and MAMNOUN, E. Dynamic analysis of sandwich panels with electrorheological core and nanocomposite viscoelastic face sheets on visco Pasternak-foundation. International Journal of Applied Mechanics, 18, 2550127 (2026)
[11]	VAZQUEZ, C. G., ORTEGA, J. J., GUSTAFSON, C. E., and KAUFFMAN, J. L. Effect of flexural rigidity and magnet location on magnetorheological sandwich beam damping performance. AIAA SCITECH 2024 Forum, AIAA, Orlando, 2024–1331 (2024)
[12]	ZHOU, J., LI, L., and XU, M. L. Aeroelastic stability analysis of a laminated composite sandwich panel with a magnetorheological fluid core under yawed supersonic airflow. International Journal of Aerospace Engineering, 2024, 7780558 (2024)
[13]	LI, M. H., LU, J., JIANG, X. L., WANG, Z. P., and QU, J. Energy absorption & dynamic properties of SMA lattice structures. Journal of Engineering Research, 13(2), 1202–1214 (2025)
[14]	CAO, X. C., FANG, X., and YU, D. L. Stiffness gradient sensitivity analysis method for evaluating the vibration reduction effect of complex variable-stiffness systems. Applied Mathematics and Mechanics (English Edition), 46(11), 2055–2074 (2025) https://doi.org/10.1007/s10483-025-3311-6
[15]	CHEN, J., ZHANG, X. Y., and FAN, M. Y. Dynamic behaviors of graphene platelets-reinforced metal foam piezoelectric beams with velocity feedback control. Applied Mathematics and Mechanics (English Edition), 46(1), 63–80 (2025) https://doi.org/10.1007/s10483-025-3209-8
[16]	WEI, Y. Y., AL-FURJAN, M. S. H., SHAN, L., SHEN, X., KOLAHCHI, R., RABANI BIDGOLI, M., and FARROKHIAN, A. Micro-mass sensor-based vibration response of smart bidirectional functionally graded auxetic microbeams. Archives of Civil and Mechanical Engineering, 24(1), 38 (2024)
[17]	LI, H., GAO, T. Y., WANG, M., and ZHANG, W. L. Approach on the vibration damping and energy absorption through electrorheological/magnetorheological effects. Sustainable Materials and Technologies, 44, e01401 (2025)
[18]	MOSAYYEBI, M., GHASEMI, F. A., and KOLAHCHI, R. Vibration response of small-scaled FG-CNTRC sandwich plates with MR fluid core supported by Kerr elastic substance. Journal of Vibration and Control, 32(5-6), 943–962 (2026)
[19]	PARK, Y. J. and CHOI, S. B. Sensors and sensing devices utilizing electrorheological fluids and magnetorheological materials: a review. Sensors, 24(9), 2842 (2024)
[20]	ARANI, A. H. S., ARANI, A. G., and MARAGHI, Z. K. A comprehensive study on vibration and loss characteristics of MR doubly curved sandwich panels with CNT-reinforced FGP face sheets. Archives of Civil and Mechanical Engineering, 25(3), 120 (2025)
[21]	BICA, I., ANITAS, E. M., SEDLACIK, M., MUNTEANU, A., MUNTEANU, L., and CHIRIGIU, L. M. E. Electrorheological and magnetorheological properties of liquid composites based on polypyrrole nanotubes/magnetite nanoparticles. Smart Materials and Structures, 33(6), 065007 (2024)
[22]	WANG, S. Z., KWON, Y. K., and CHOI, H. J. Pickering emulsion polymerized poly(N-methylaniline)/Fe₃O₄ nanocomposite particles and their dual electrorheological and magnetorheological responses. European Polymer Journal, 232, 113955 (2025)
[23]	FARAJI, M. J. A., ARANI, A. G., MAMNOUN, E., and MARAGHI, Z. K. Vibration analysis of sandwich beams with magnetorheological elastomer core and FGM graphene nanoplatelet-reinforced polymer faces on viscoelastic foundation. Mechanics of Advanced Composite Structures, 12(3), 447–464 (2025)
[24]	WANG, X. C. Application of electrorheological fluid cores to improve the vibration response of sandwich toroidal shell elements covered by functionally graded nanocomposite faces. International Journal of Structural Stability and Dynamics, 26(17), 2650148 (2026)
[25]	SELVARAJ, P. and VEMULURI, R. B. Effect of partial treatment on the free vibration behavior of GFRP composite sandwich plates with a graphene-magnetorheological elastomer core. Advanced Composites and Hybrid Materials, 9(1), 7 (2025)
[26]	LIU, J. H., XUE, Y., GAO, Z. H., KRUSHYNSKA, A. O., and LI, J. Q. Actively tunable sandwich acoustic metamaterials with magnetorheological elastomers. Applied Mathematics and Mechanics (English Edition), 45(11), 1875–1894 (2024) https://doi.org/10.1007/s10483-024-3186-9
[27]	ZHANG, X. A Simulation Study on the Dynamic Behavior of Magnetorheological Elastomer Sandwich Beams Incorporating Viscoelastic Effects, Ph. D. dissertation, University of California (2025)
[28]	MARAGHI, Z. K., AMIR, S., and ARSHID, E. On the natural frequencies of smart circular plates with magnetorheological fluid core embedded between magnetostrictive patches on Kerr elastic substance. Mechanics Based Design of Structures and Machines, 52(3), 1651–1668 (2024)
[29]	LI, P. Y., DONG, X. M., FEI, Z. Y., and LIU, Q. L. Characteristic analysis of a novel magnetorheological fabric composite cored flexible sandwich beam with tunable stiffness. Journal of Intelligent Material Systems and Structures, 35(2), 218–232 (2024)
[1]	ASGARI, M., MOHAMMADIMEHR, M., ARABZADEH-ZIARI, M., and ARABZADEH-ZIARI, E. Static bending, vibration, and buckling responses of a sandwich beam composed of five layers considering honeycomb core and CNTRC with SMA particles and temperature-dependent material properties using SSDT. Mechanics of Advanced Composite Structures, 12(1), 153–168 (2025)
[2]	CHEGINI, H. S., KHEIRIKHAH, M. M., and AHMADI, S. Free vibration analysis of CNT-reinforced annular composite sandwich plates embedded with SMA wires. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 47(2), 92 (2025)
[3]	ALI, M. F., HUI, Q., UMAR, M., LIU, F. L., RAZA, A., ALI, S. B., and YANG, C. L. Rheological, mechanical, and self-recovery performance of 3D-printed ECC reinforced with shape memory alloy fibers. Journal of Building Engineering, 114, 114255 (2025)
[4]	JIANG, S., WEI, Y. H., GUO, Z. K., XIN, X., LI, M., and JIANG, G. Q. Vibration reduction and enhanced vibration energy harvesting of piezoelectric sandwich beams on periodic elastic supports. International Journal of Structural Stability and Dynamics, 9, 2650275 (2025)
[5]	GUO, Z. K., JIANG, S., DU, C. Y., ZHANG, Y., TANG, H., and HU, G. B. Enhanced energy harvesting with a piezoelectric diatomic sandwich beam shunted to an SECE circuit. Journal of Vibration and Acoustics, 148, 011012 (2026)
[6]	ARABZADEH-ZIARI, E., MOHAMMADIMEHR, M., ARABZADEH-ZIARI, M., and ASGARI, M. Vibration, bending, and buckling of a seven-layer sandwich beam with balsa core reinforced by nanocomposite and shape memory alloy face sheets using piezoelectromagnetic layers. Arabian Journal for Science and Engineering, 50(12), 9519–9534 (2025)
[30]	JONNA, N. and SRINIVAS, J. Aeroelastic stability analysis and optimization studies of rotating tapered composite sandwich blade with magnetorheological elastomer core. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 46(12), 713 (2024)
[31]	YIN, S. H., WANG, X. F., BUI, T. Q., LIU, J. G., YU, T. T., and GU, S. T. Postbuckling of functionally graded microbeams: a theoretical study based on a reformulated strain gradient elasticity theory. Acta Mechanica, 235(9), 5529–5544 (2024)
[32]	LIU, J. P., TAN, H., ZHOU, X. Y., MA, W. G., WANG, C. M., TRAN, N. M. A., LU, W. L., CHEN, F., WANG, J. Y., and ZHANG, H. B. Piezoelectric thin films and their applications in MEMS: a review. Journal of Applied Physics, 137(2), 020702 (2025)
[33]	SAURABH, S., SINGH, S. K., CHAUHAN, V. S., and KIRAN, R. On the buckling and vibration behavior of carbon nanotube-reinforced bioinspired composite plates: a combined microstructural and hygrothermal investigation via isogeometric analysis. Applied Mathematics and Mechanics (English Edition), 46(12), 2317–2340 (2025) https://doi.org/10.1007/s10483-025-3321-8
[34]	HUANG, K. and ZHOU, X. W. Analysis of linear free and forced vibrations of microbeams with thermoelastic damping. European Journal of Mechanics-A/Solids, 112, 105672 (2025)
[35]	HAFED, Z. S. and ZENKOUR, A. M. A thermoelastic model with two relaxations for the vibration of a microbeam resting on elastic foundations. Applied Mathematics and Mechanics (English Edition), 46(4), 711–722 (2025) https://doi.org/10.1007/s10483-025-3341-8
[36]	KAVEH, A., BABAEI, H., ZAVARI, S., ARSHID, E., and CIVALEK, Ö. Vibrational response of a sandwich microplate considering the impact of flexoelectricity and based on a novel porous-FGM formulation. Mechanics Based Design of Structures and Machines, 52(11), 9122–9143 (2024)
[37]	SHAN, L. C., XIAO, G. C., LI, A. Q., ZHOU, S. S., WANG, L., SU, W. G., LIU, Y. L., YANG, L., and SONG, X. Y. Nonlinear forced vibration of the FGM piezoelectric microbeam with flexoelectric effect. Alexandria Engineering Journal, 110, 386–399 (2025)
[38]	JAFARI, M. and MOHAMMADIMEHR, M. Active control for higher order micro sandwich beam with various cores integrated by piezoelectric layers based on MSGT on the Pasternak foundation. Journal of Vibration and Control, 31(23-24), 5024–5046 (2025)
[39]	TANG, Y. and QING, H. Analytical and numerical study on size-dependent nonlinear free vibration of FG nonlocal Timoshenko microbeam in thermal environment. Journal of Vibration Engineering & Technologies, 13(8), 635 (2025)
[40]	BARGOZINI, F. and MOHAMMADIMEHR, M. The experimental and numerical results of a spinning/whirling composite thick-beam of glass fibers reinforced with CNR based on SSDT and neutral axis with electric field. International Journal of Lightweight Materials and Manufacture, 8(5), 669–680 (2025)
[41]	JAFRI, M. and MOHAMMADIMEHR, M. Forced vibration control of Timoshenko’s micro sandwich beam with CNT/GPL/CNR reinforced composites integrated by piezoelectric on Kerr’s elastic foundation using MCST. Journal of Computational Applied Mechanics, 56(1), 15–42 (2025)
[42]	FARAHANI, S. M., MEHRABADI, S. J., and MOHAMMADI, S. V. Vibration analysis of a smart viscoelastic porous sandwich micro-shell with magnetorheological fluid core using the modified couple stress theory. Waves in Random and Complex Media, 34, 1–31 (2024)
[43]	AFZALI, M., ARANI, A. G., ESFAHANI, A. S., and MARAGHI, Z. K. Force vibration analysis of a magnetorheological fluid-core sandwich. Composites: Mechanics, Computations, Applications, 17(1), 13–41 (2026)
[44]	MOSAYYEBI, M., GHASEMI, F. A., and KOLAHCHI, R. Modified couple stress theory (MCST) and refined zigzag theory (RZT) for wave propagation of embedded smart sandwich plates with magnetorheological fluid core and viscoelastic FG-CNTRC magnetostrictive face sheets. Journal of Vibration and Control, 30(21-22), 4868–4887 (2024)
[45]	ASGARI, M. and ALI KOUCHAKZADEH, M. Aeroelastic characteristics of magneto-rheological fluid sandwich beams in supersonic airflow. Composite Structures, 143, 93–102 (2016)
[46]	RAJAMOHAN, V., SUNDARARAMAN, V., and GOVINDARAJAN, B. Finite element vibration analysis of a magnetorheological fluid sandwich beam. Procedia Engineering, 64, 603–612 (2013)
[47]	YEH, Z. F. and SHIH, Y. S. Dynamic stability of a sandwich beam with magnetorheological core. Mechanics Based Design of Structures and Machines, 34(2), 181–200 (2006)
[48]	YALCINTAS, M. and DAI, H. M. Magnetorheological and electrorheological materials in adaptive structures and their performance comparison. Smart Materials and Structures, 8(5), 560–573 (1999)
[49]	RAJAMOHAN, V., SEDAGHATI, R., and RAKHEJA, S. Vibration analysis of a multi-layer beam containing magnetorheological fluid. Smart Materials and Structures, 19(1), 015013 (2010)
[50]	CHEN, L., GONG, X. L., JIANG, W. Q., YAO, J. J., DENG, H. X., and LI, W. H. Investigation on magnetorheological elastomers based on natural rubber. Journal of Materials Science, 42(14), 5483–5489 (2007)
[51]	TSAI, Y. H., WU, C. P., and SYU, Y. S. Three-dimensional analysis of doubly curved functionally graded magneto-electro-elastic shells. European Journal of Mechanics-A/Solids, 27(1), 79–105 (2008)

Method	Magnetic field/Oe	Natural frequency mode
Method	Magnetic field/Oe	1	2	3
Present work (ode45)	Without a magnetic field	19.19	53.56	96.88
Present work (FDM)		20.76	64.02	126.80
Ref. [48]		20.98	62.49	124.80
Present work (ode45)	1 000	21.80	65.28	117.24
Present work (FDM)		24.19	77.44	128.63
Ref. [48]		24.30	72.16	138.22
Present work (ode45)	2 000	23.61	77.09	142.32
Present work (FDM)		27.38	87.59	158.35
Ref. [48]		27.11	84.28	158.26

Method	Magnetic field/Oe	Natural frequency mode
Method	Magnetic field/Oe	1	2	3
Present work (ode45)	Without a magnetic field	19.19	53.56	96.88
Present work (FDM)		19.26	51.60	95.33
Ref. [47]		19.16	52.35	98.38
Present work (ode45)	1 000	21.80	65.28	117.24
Present work (FDM)		22.73	59.84	110.33
Ref. [47]		22.75	63.58	114.93
Present work (ode45)	2 000	23.61	77.09	142.32
Present work (FDM)		25.49	71.49	131.83
Ref. [47]		25.73	77.06	138.39

Method	Magnetic field/Oe	Natural frequency mode
Method	Magnetic field/Oe	1	2	3
Present work (ode45)	Without a magnetic field	62.30	256.02	579.11
Present work (FDM)		63.22	253.32	556.05
Ref. [48]		62.72	244.55	546.42
Present work (ode45)	1 000	65.02	263.40	594.01
Present work (FDM)		64.23	258.70	567.71
Ref. [48]		63.91	247.20	549.64
Present work (ode45)	2 000	65.95	265.42	597.78
Present work (FDM)		65.75	262.48	582.80
Ref. [48]		65.03	251.01	555.02
