Analysis of the electromechanical coupling characteristics of piezoelectric semiconductor PN junction shell structures

doi:10.1007/s10483-025-3259-6

Abstract

Abstract:

Based on the nonlinear drift-diffusion (NLDD) model, the coupled behavior between the mechanical and electrical fields in piezoelectric semiconductor (PS) PN junctions under two typical loading conditions is investigated. The governing equations for the general shell structure of the PS PN junction are derived within the framework of virtual work principles and charge continuity conditions. The distributions of the electromechanical coupling field are obtained by the Fourier series expansion and the differential quadrature method (DQM), and the nonlinearity is addressed with the iterative method. Several numerical examples are presented to investigate the effects of mechanical loading on the charge carrier transport characteristics. It is found that the barrier height of the heterojunction can be effectively modulated by mechanical loading. Furthermore, a nonlinearity index is introduced to quantify the influence of nonlinearity in the model. It is noted that, when the concentration difference between the two sides is considerable, the nonlinear results differ significantly from the linear results, thereby necessitating the adoption of the NLDD model.

Key words: piezoelectric semiconductor (PS), PN junction, shell structures, nonlinear drift-diffusion (NLDD) model, potential barrier (well)

2010 MSC Number:

O472⁺.91

Tiqing WANG, Feng ZHU, Peng LI, Zelin XU, Tingfeng MA, I. KUZNETSOVA, Zhenghua QIAN. Analysis of the electromechanical coupling characteristics of piezoelectric semiconductor PN junction shell structures. Applied Mathematics and Mechanics (English Edition), 2025, 46(6): 1167-1186.

TrendMD

Figures/Tables 13

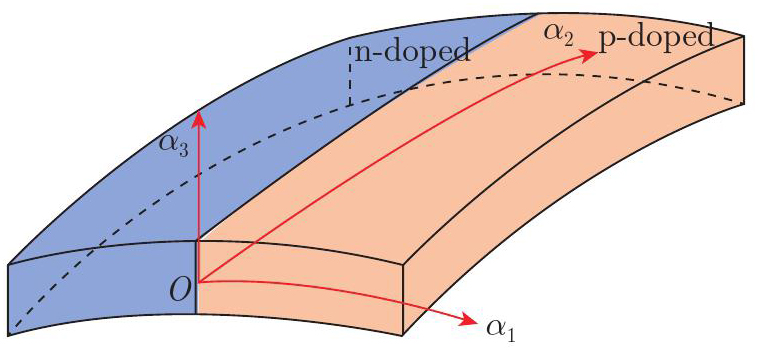

Fig. 1

Table 1

Material parameters of ZnO"

Parameter	ZnO	Parameter	ZnO	Parameter	ZnO
$c 11$ /GPa	209.7	$e 15 / (C ⋅ m − 2)$	$− 0.48$	$μ 11 / (m 2 ⋅ V − 1 ⋅ s − 1)$	1
$c 33$ /GPa	210.9	$e 31 / (C ⋅ m − 2)$	$− 0.537$	$D 11 / (m 2 ⋅ s − 1)$	0.026
$c 12$ /GPa	121.1	$e 33 / (C ⋅ m − 2)$	1.32	$n 0 l (p 0 r) / m − 3$	$1 × 1021$
$c 13$ /GPa	105.1	$ε 11 / (F ⋅ m − 1)$	$7.57 × 10 − 11$	$p 0 l (n 0 r) / m − 3$	$0.7 × 1021$
$c 44$ /GPa	42.47	$ε 33 / (F ⋅ m − 1)$	$9.03 × 10 − 11$	$q / C$	$1.602 × 10 − 19$

Table 1

Table 2

Values of φ (in mV) at (−θ/2, L/2) with different N and M"

$N$	$M = 5$	$M = 50$	$M = 100$
10	2.334	2.291	2.291
30	2.422	2.382	2.382
50	2.429	2.389	2.389
80	2.432	2.391	2.391

Table 2

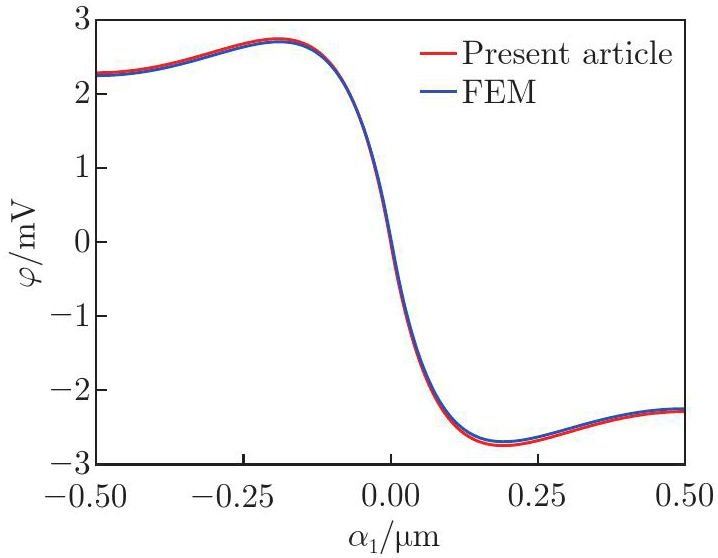

Fig. 2

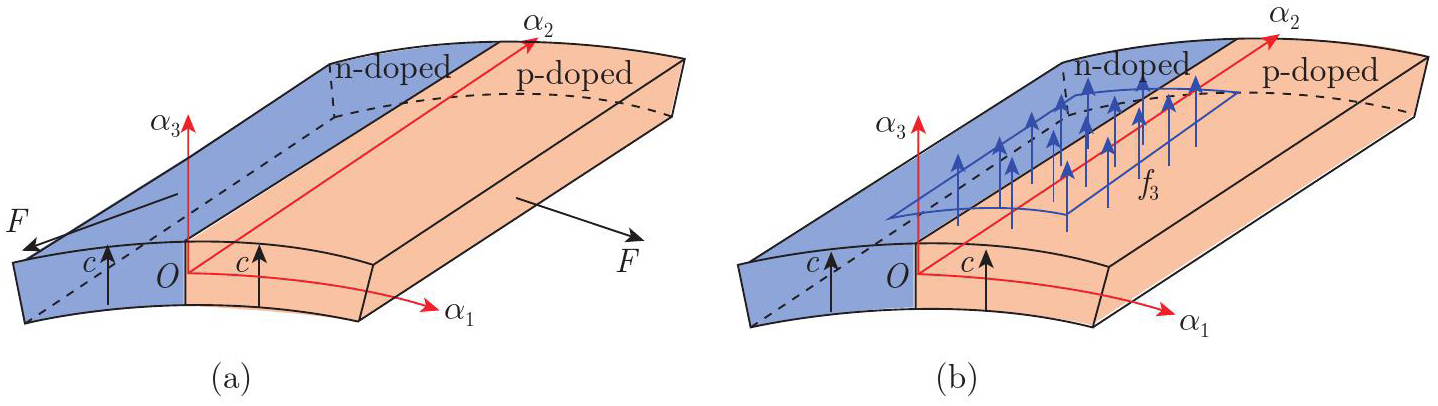

Fig. 3

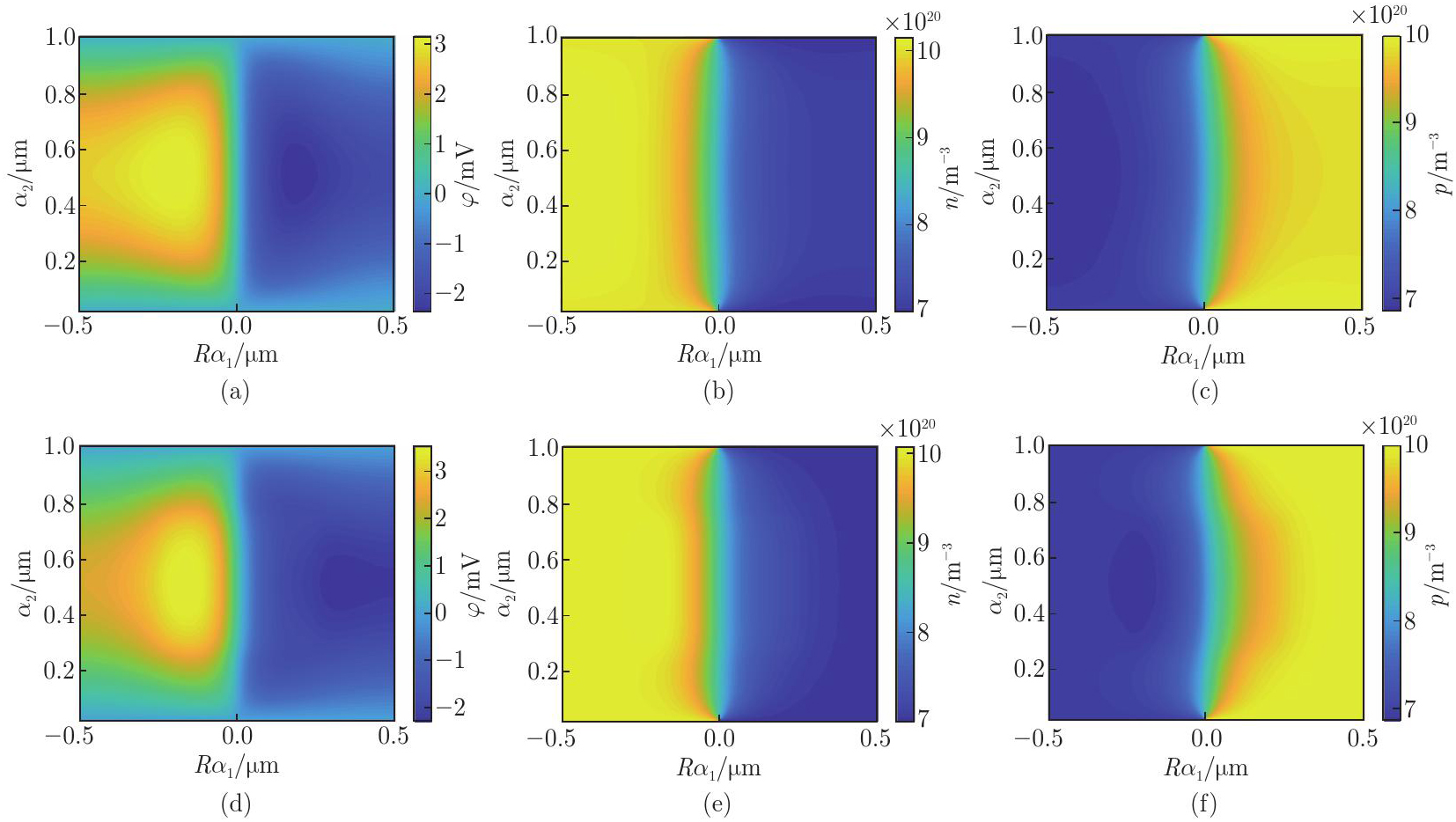

Fig. 4

Fig. 5

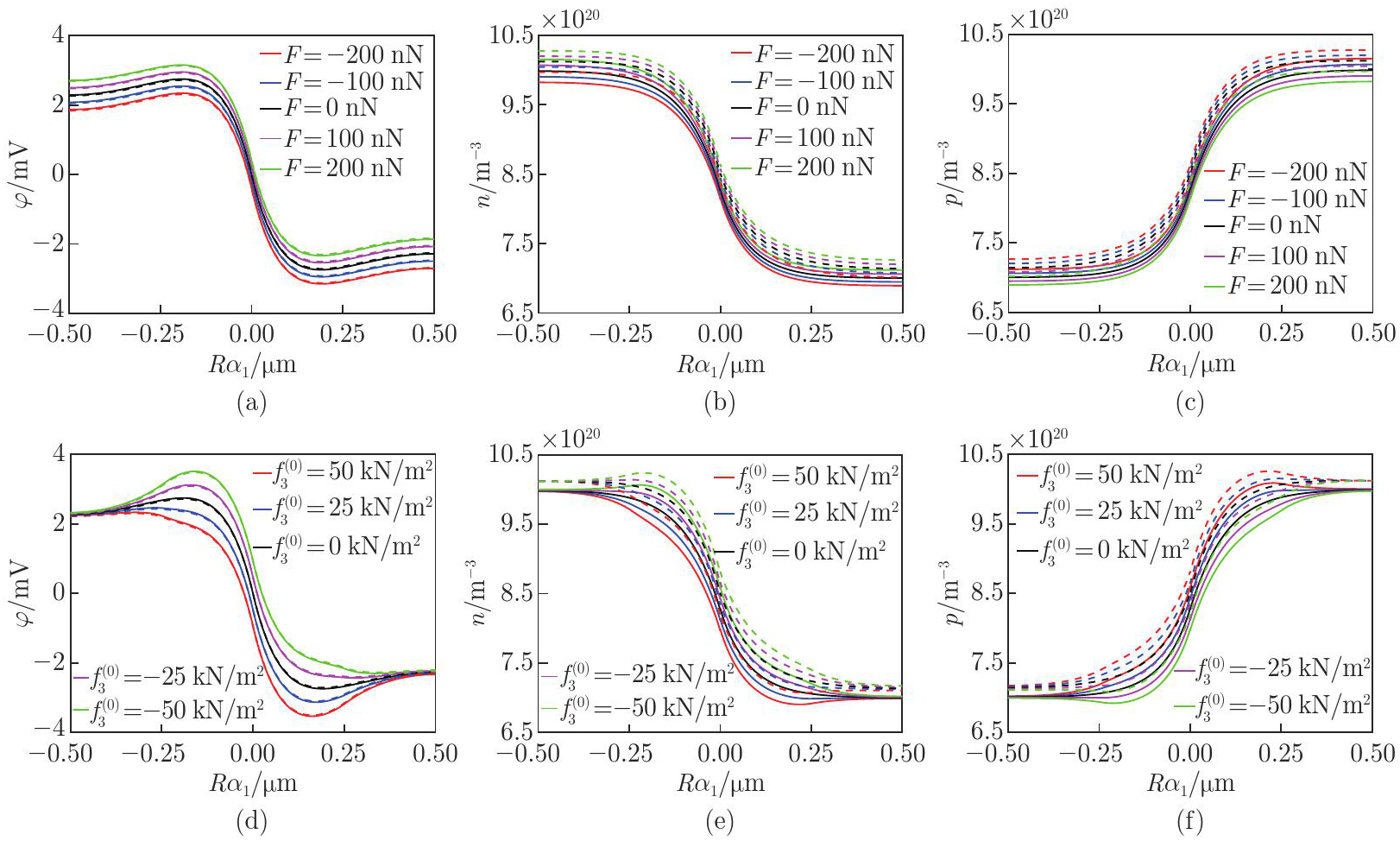

Fig. 6

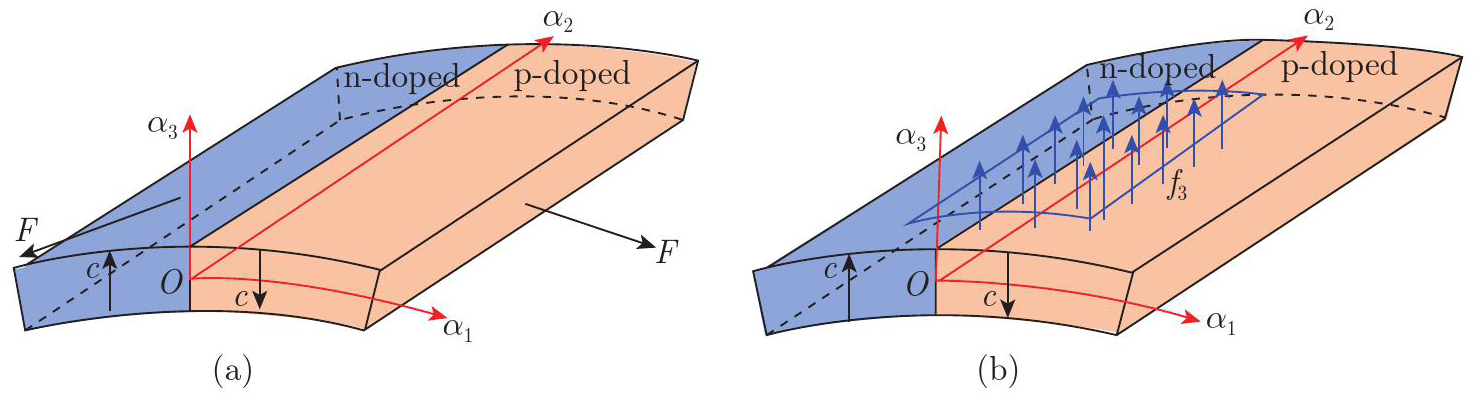

Fig. 7

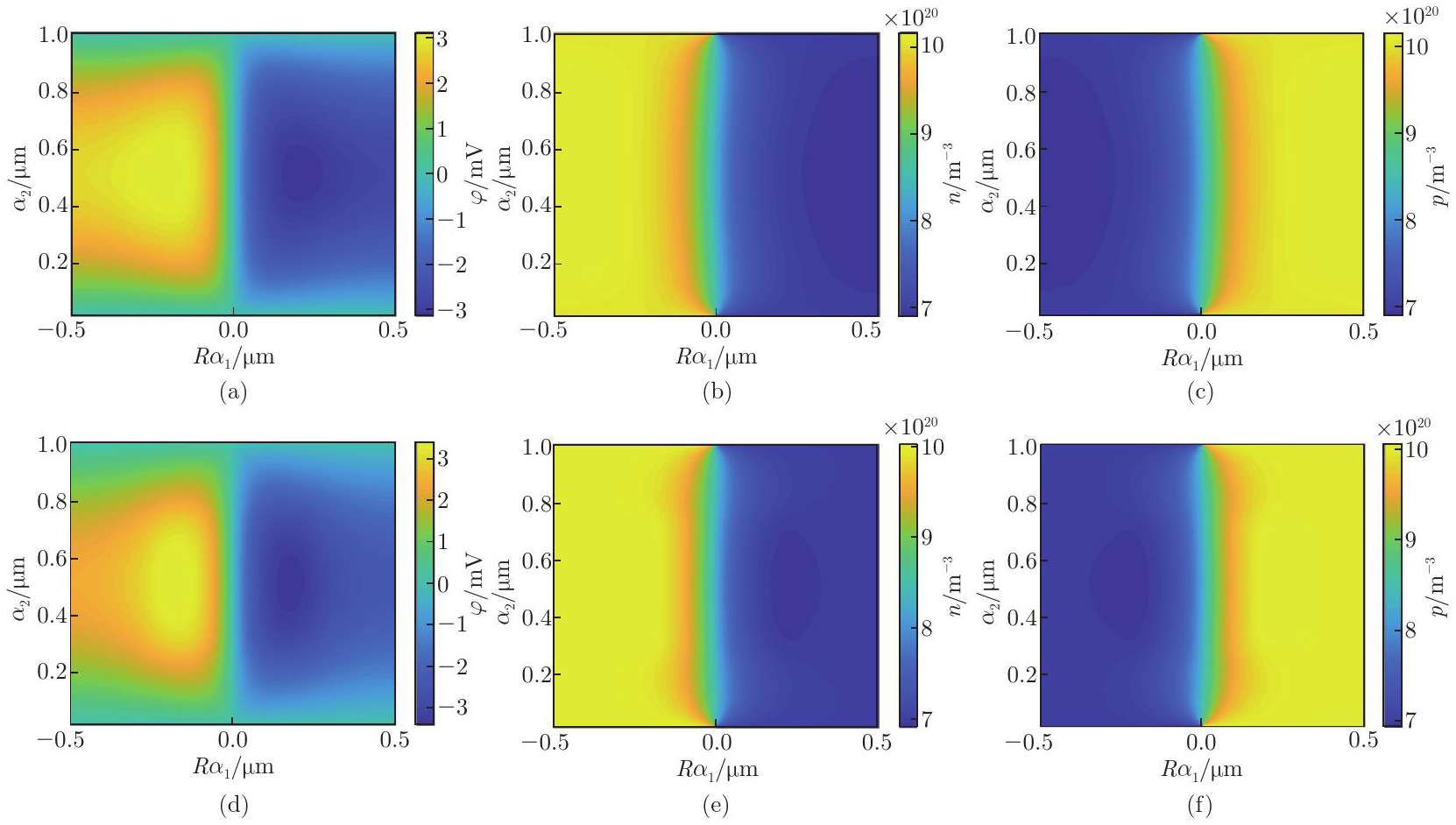

Fig. 8

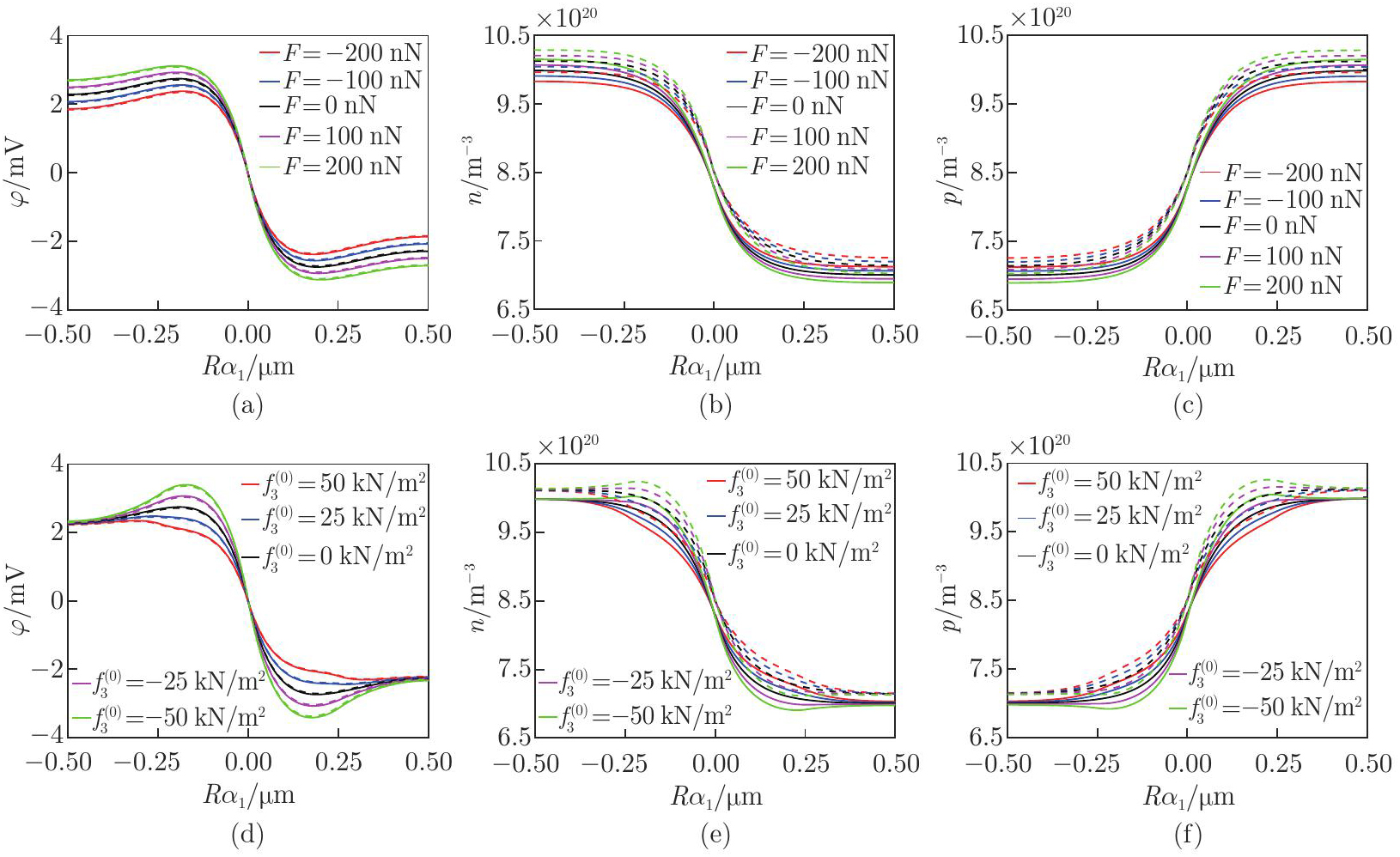

Fig. 9

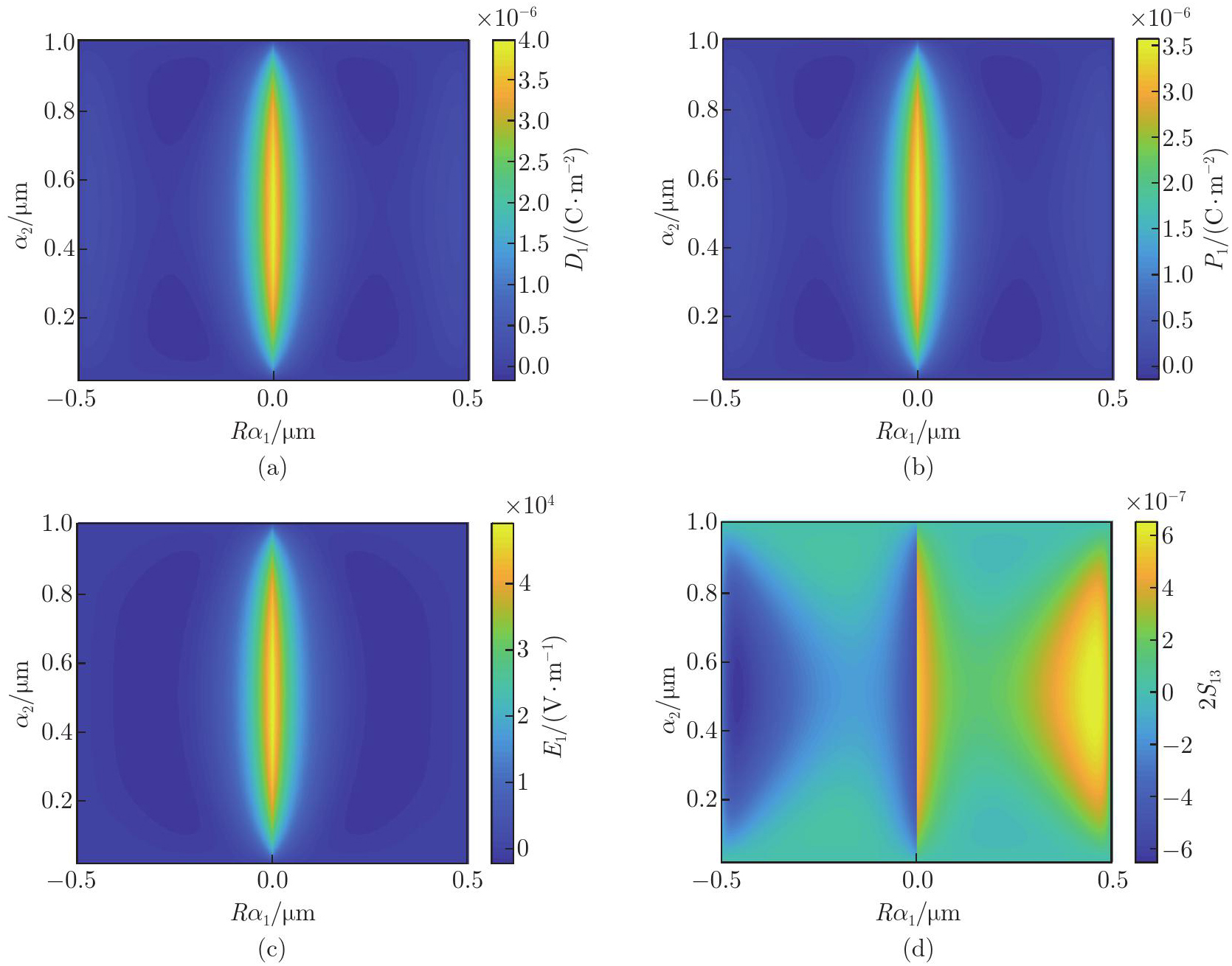

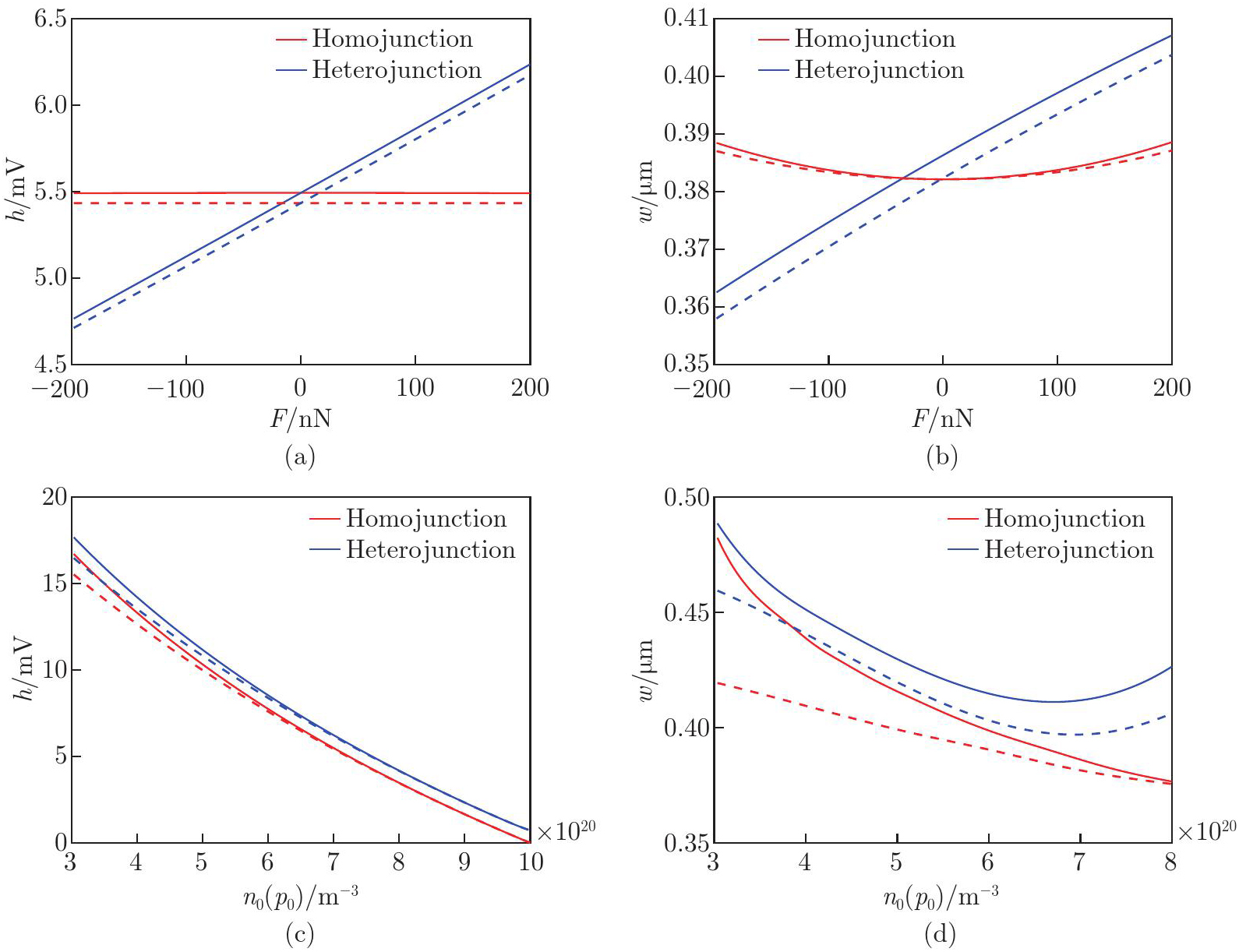

Fig. 10

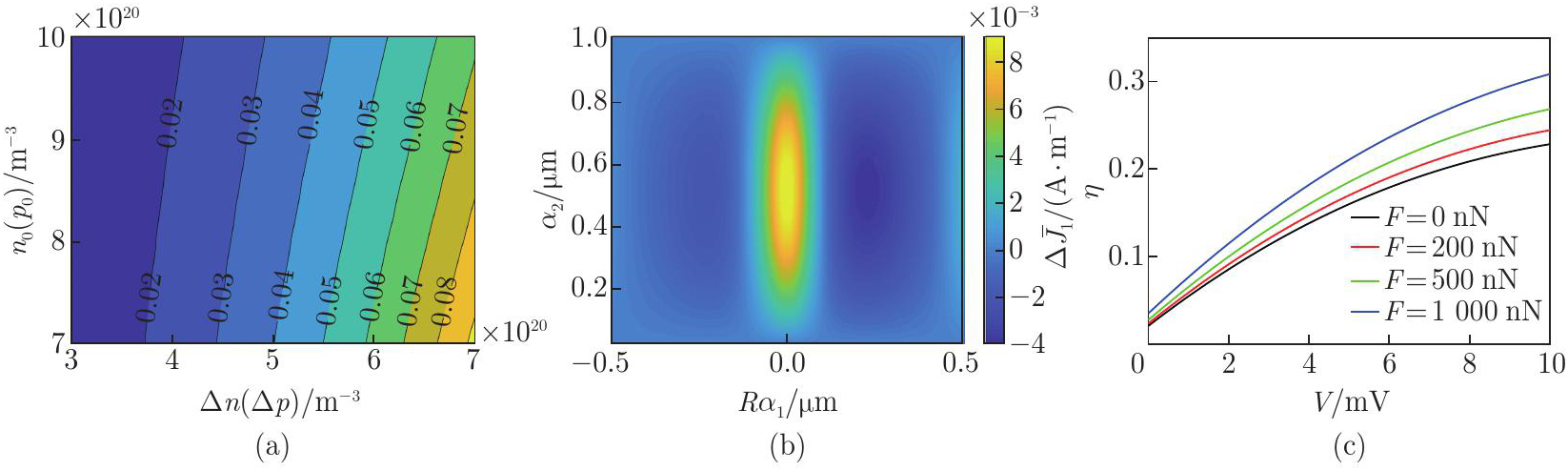

Fig. 11

References 54
