A finite element-based novel approach to undamped vibrational analysis of complex curved beams with arbitrary curvature using explicit interpolation functions

doi:10.1007/s10483-025-3315-6

Abstract

Abstract:

Curved beams with complex geometries are vital in numerous engineering applications, where precise vibration analysis is crucial for ensuring safe and effective designs. Traditional finite element methods (FEMs) often struggle to accurately represent the dynamic characteristics of these structures due to the limitations in their shape function approximations. To overcome this challenge, the current study introduces an innovative finite element (FE)-based technique for the undamped vibrational analysis of curved beams with arbitrary curvature, employing explicitly derived interpolation functions. Initially, the exact interpolation functions are developed for circular arc elements with the force method. These functions facilitate the creation of a highly accurate stiffness matrix, which is validated against the benchmark examples. To accommodate arbitrary curvature, a systematic transformation technique is established to approximate the intricate curves with a series of circular arcs. The numerical findings indicate that increasing the number of arc segments enhances accuracy, approaching the exact solutions. The analysis of free vibrations is conducted for both circular and non-circular beams. Mass matrices are derived using two methods: lumped mass and consistent mass, where the latter is based on the interpolation functions. The effectiveness of the proposed method is confirmed through the comparisons with the existing literature, demonstrating strong agreement. Finally, several practical cases involving beams with diverse curvature profiles are analyzed. Both natural frequencies and mode shapes are determined, providing significant insights into the dynamic behavior of these structures. This research offers a dependable and efficient analytical framework for the vibrational analysis of complex curved beams, with promising implications for structural and mechanical engineering.

Key words: arbitrary curvature, curved beam, interpolation function, free vibration, mode shape, finite element method (FEM)

2010 MSC Number:

O327

A. KESHMIRI, T. H. MOTTAGHI, A. R. MASOODI. A finite element-based novel approach to undamped vibrational analysis of complex curved beams with arbitrary curvature using explicit interpolation functions. Applied Mathematics and Mechanics (English Edition), 2025, 46(11): 2177-2198.

TrendMD

Figures/Tables 26

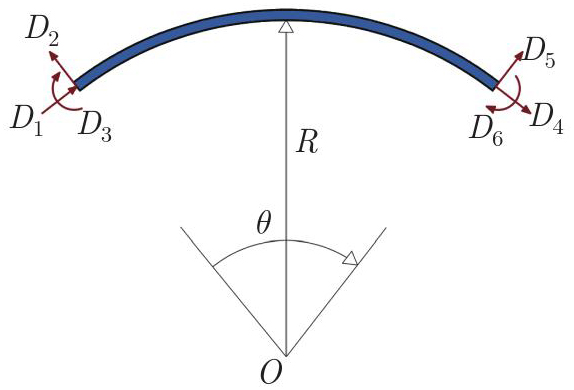

Fig.?1

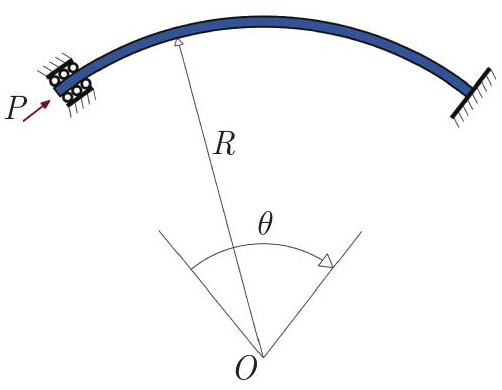

Fig.?2

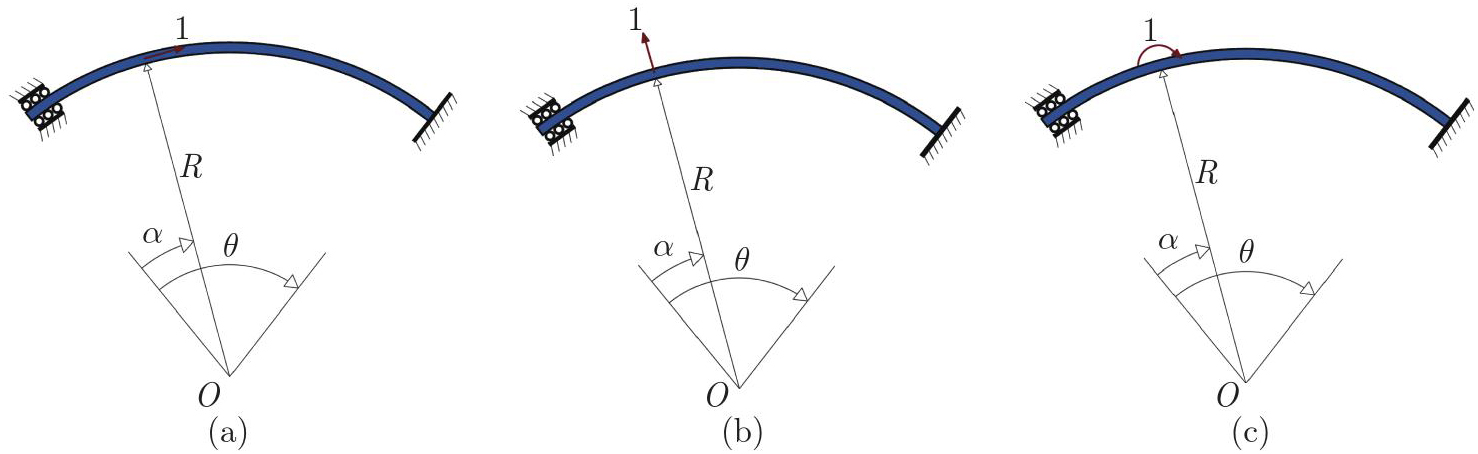

Fig.?3

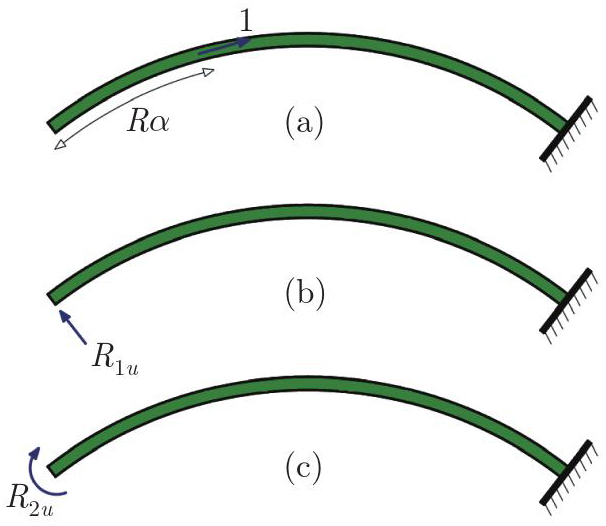

Fig.?4

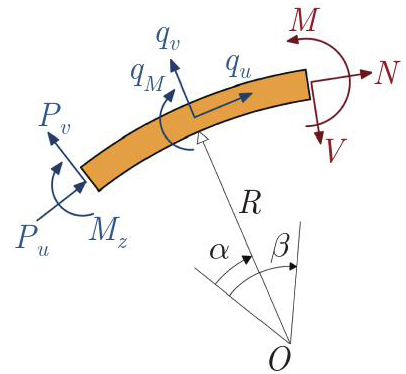

Fig.?5

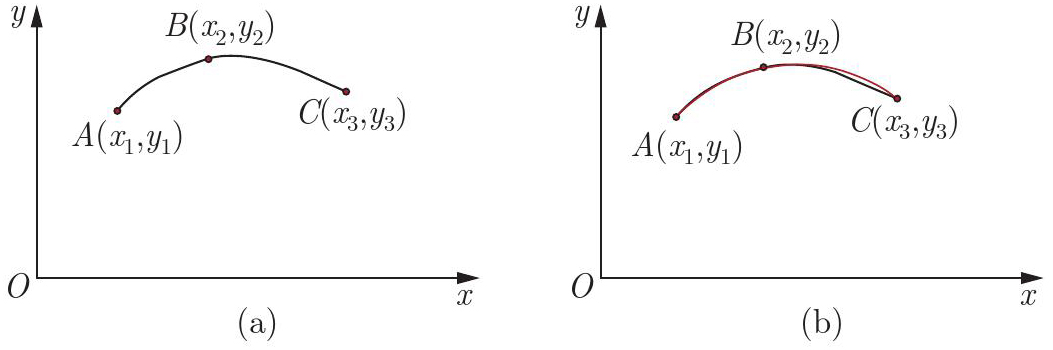

Fig.?6

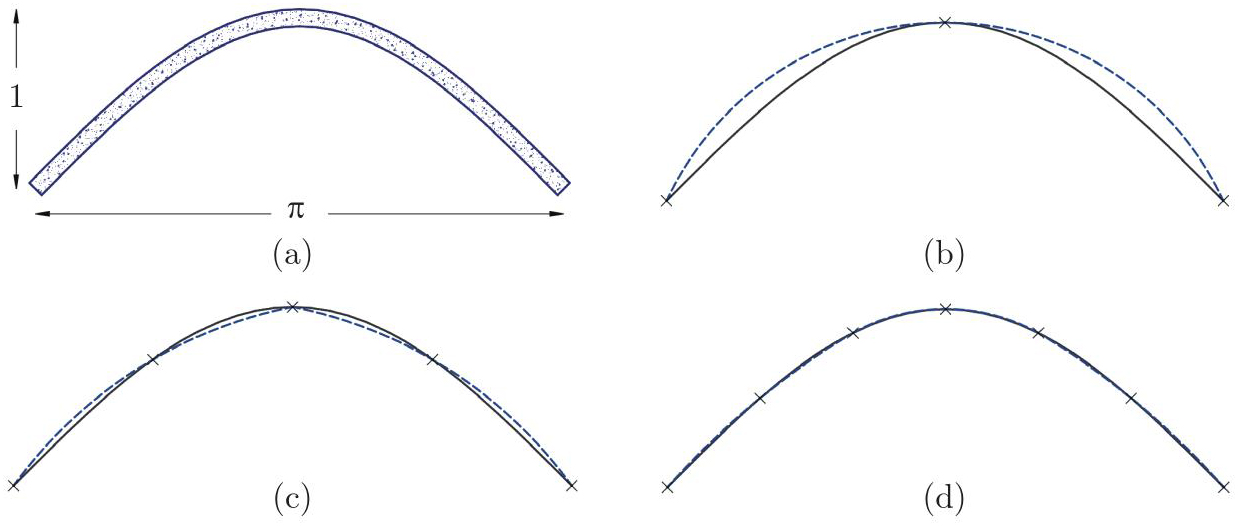

Fig.?7

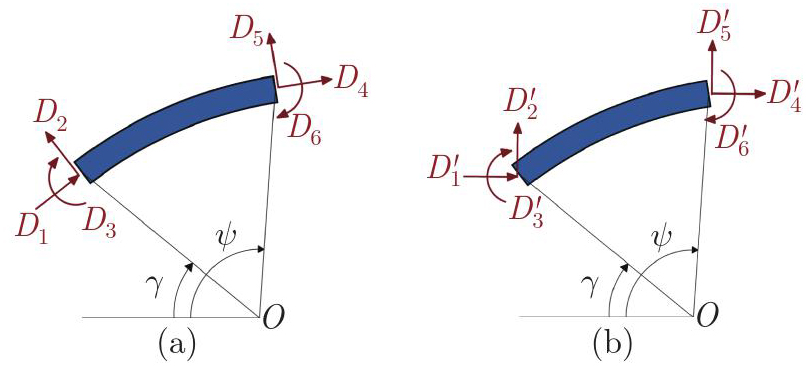

Fig.?8

Fig.?9

Table?1

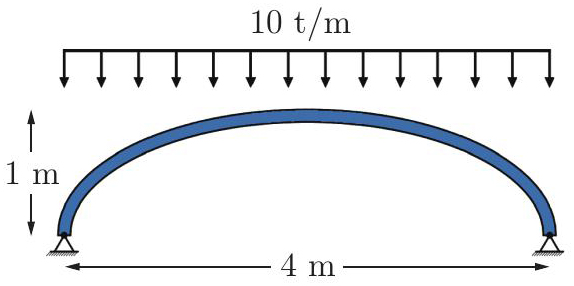

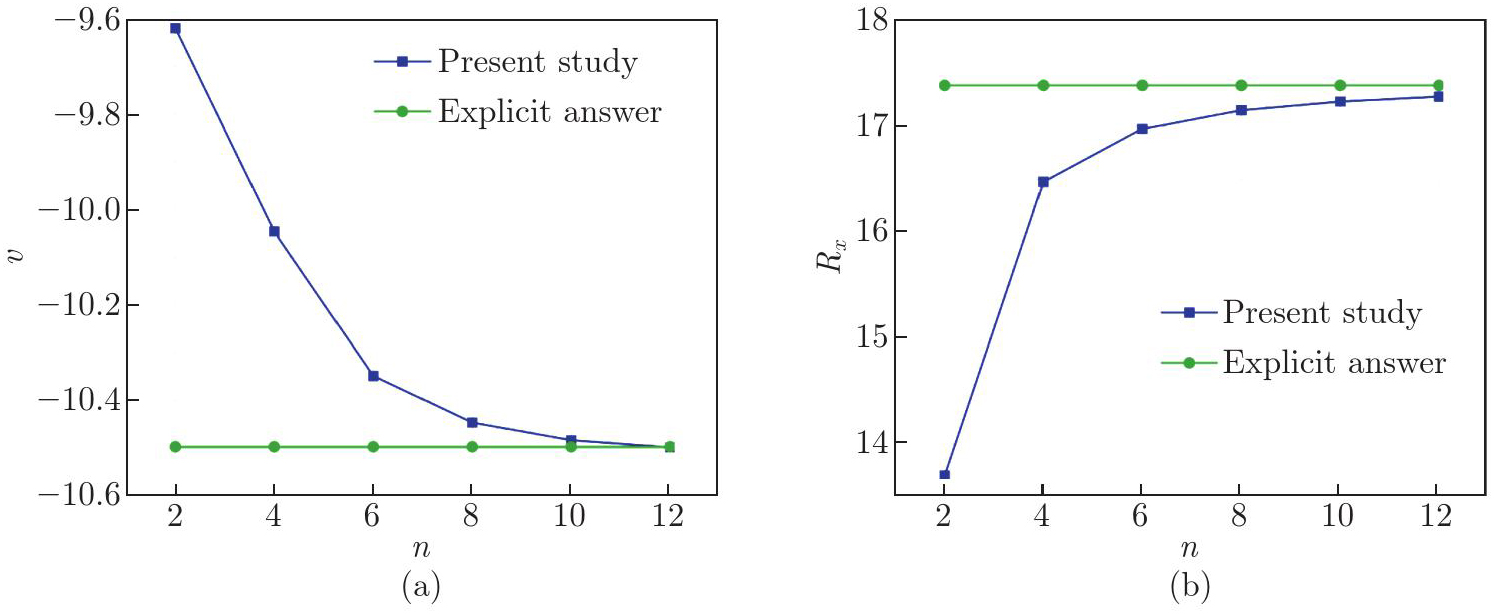

Comparison of the results obtained from the proposed method with the exact solutions derived from Castigliano’s method"

$n$	Present study		Explicit answer		Error $v /%$	Error $R x /%$
$n$	$v /mm$	$R x /t$	$v /mm$	$R x /t$	Error $v /%$	Error $R x /%$
2	$− 9.620 3$	13.706	-10.497	17.387	8.35	21.20
4	$− 10.046 0$	16.475	-10.497	17.387	4.30	5.25
6	$− 10.348 0$	16.976	-10.497	17.387	1.42	2.36
8	$− 10.446 0$	17.153	-10.497	17.387	0.49	1.35
10	$− 10.483 0$	17.235	-10.497	17.387	0.13	0.87
12	$− 10.498 0$	17.281	-10.497	17.387	0.01	0.61

Table?1

Fig.?10

Table?2

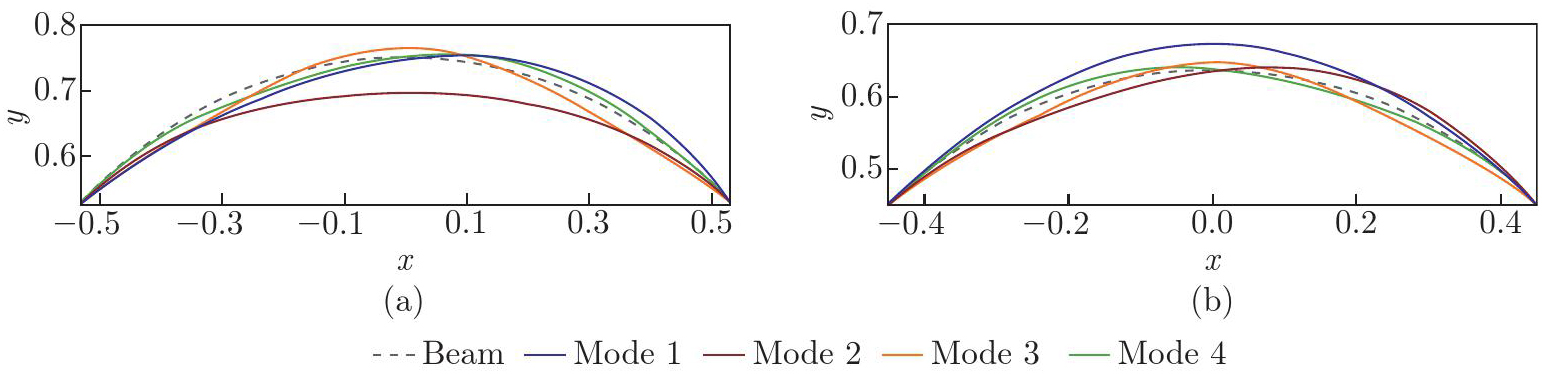

Fig.?11

Table?3

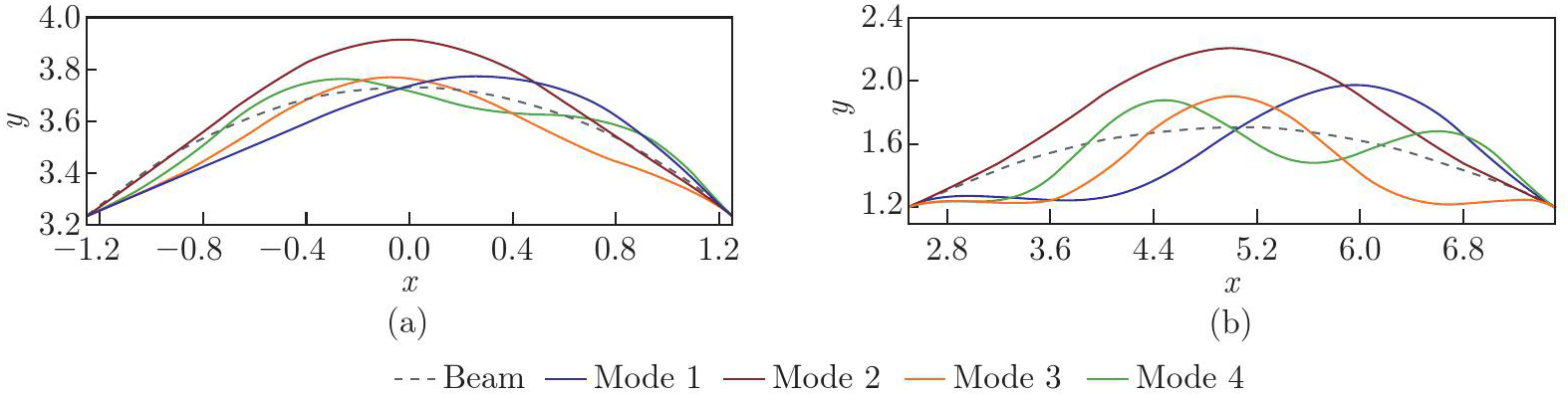

Fig.?12

Fig.?13

Table?4

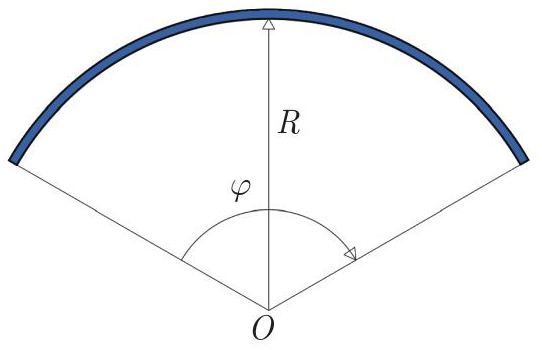

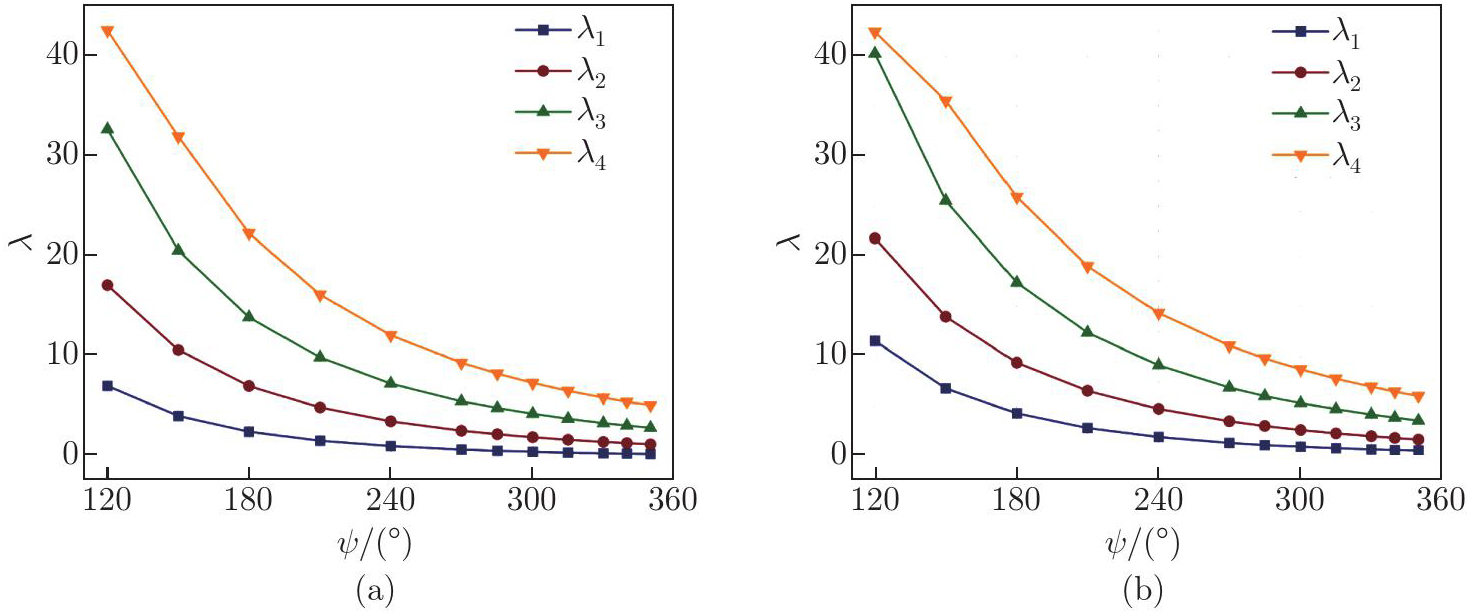

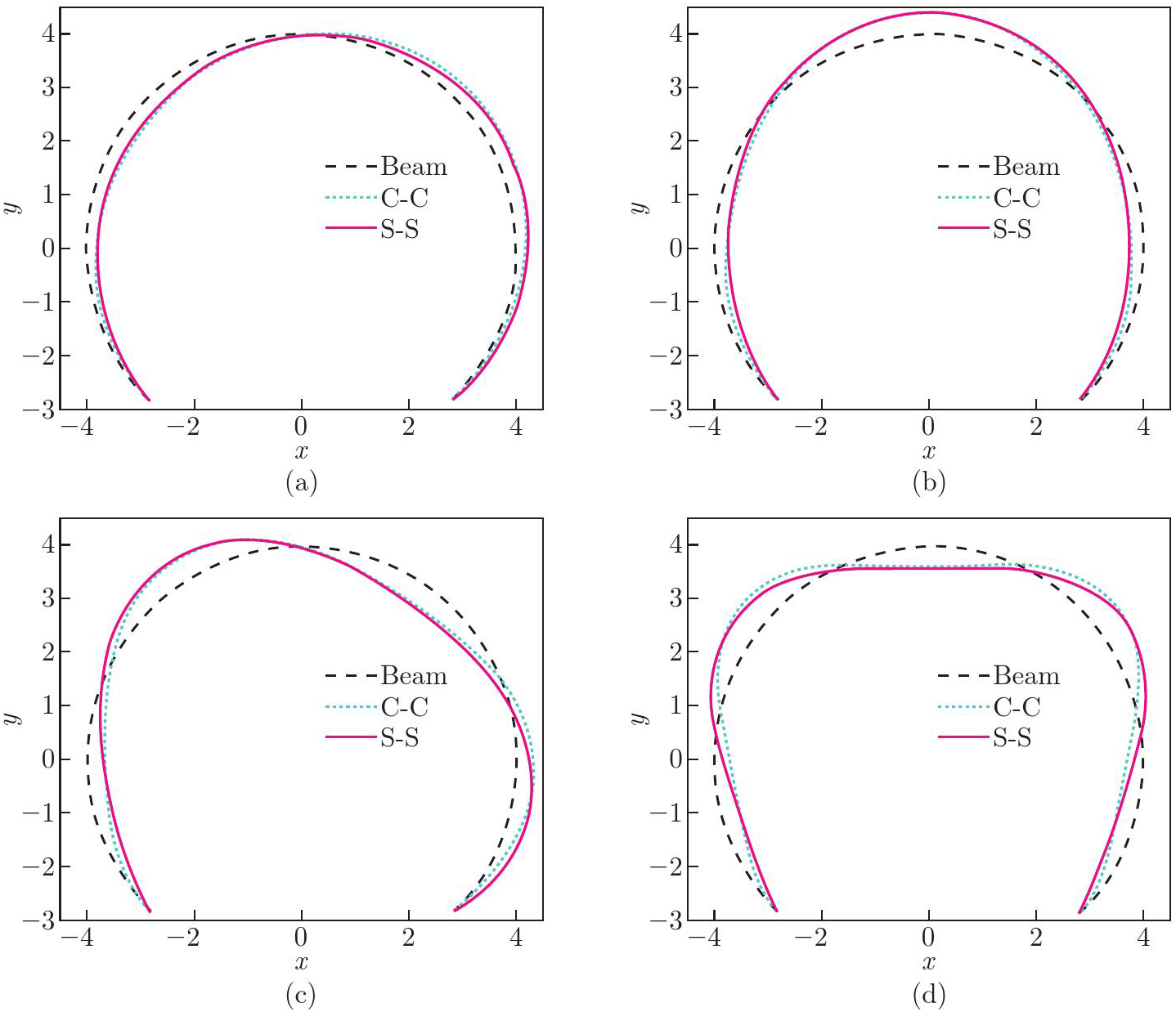

First four dimensionless natural frequencies of the circular beam under S-S and C-C support conditions"

$φ /(°)$	S-S				C-C
$φ /(°)$	$λ 1$	$λ 2$	$λ 3$	$λ 4$	$λ 1$	$λ 2$	$λ 3$	$λ 4$
120	6.857	16.95	32.52	42.42	11.57	21.81	40.24	42.42
150	3.833	10.44	20.40	31.78	6.851	13.98	25.56	35.53
180	2.256	6.845	13.73	22.11	4.337	9.416	17.38	25.94
210	1.359	4.680	9.698	15.98	2.874	6.612	12.40	19.04
240	0.816	3.290	7.086	11.94	1.971	4.790	9.157	14.37
270	0.473	2.355	5.307	9.152	1.389	3.551	6.944	11.10
285	0.350	2.001	4.625	8.075	1.177	3.079	6.094	9.838
300	0.250	1.704	4.046	7.156	1.003	2.680	5.372	8.755
315	0.168	1.452	3.551	6.365	0.860	2.341	4.754	7.822
330	0.101	1.238	3.125	5.681	0.742	2.051	4.222	7.013
340	0.063	1.113	2.874	5.276	0.676	1.881	3.907	6.533
350	0.030	1.000	2.645	4.905	0.617	1.727	3.620	6.094

Table?4

Fig.?14

Fig.?15

Table?5

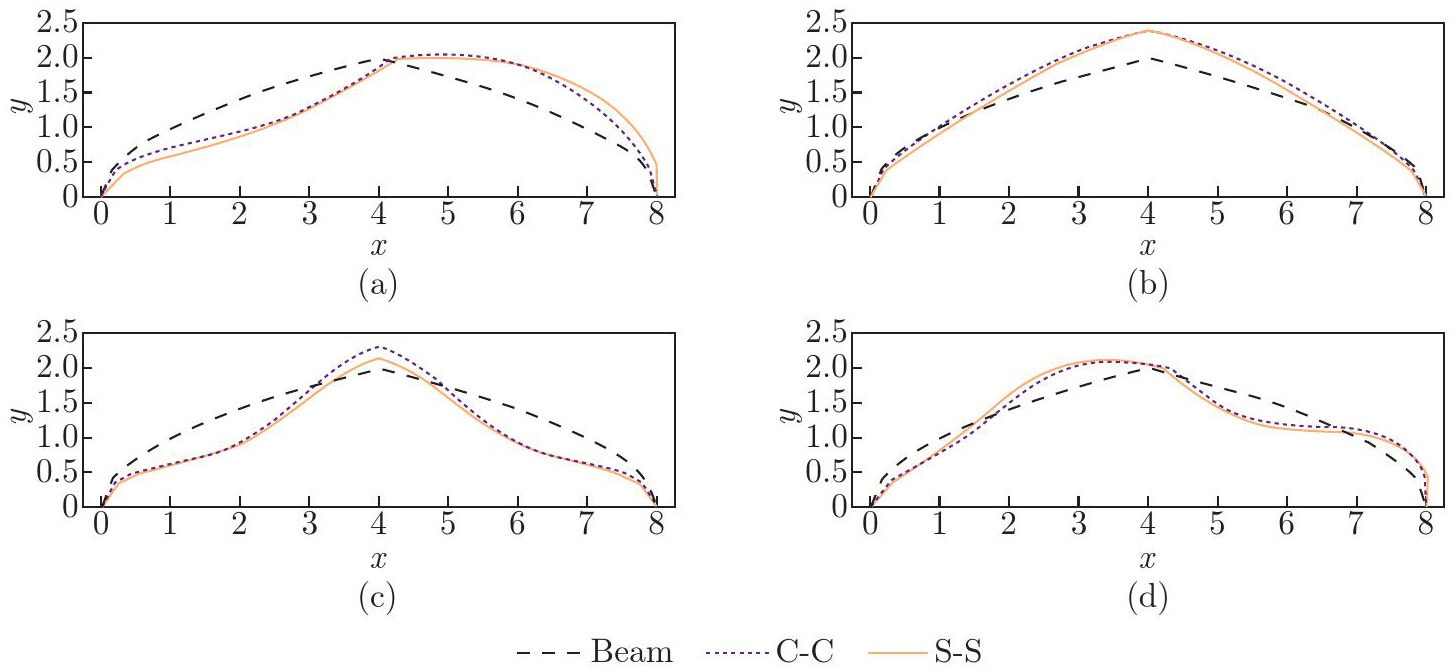

First four dimensionless natural frequencies of the radical and third-degree parabolic beams under S-S and C-C support conditions"

Geometry of arch	Mode	S-S	C-C
Radical,	1	23.967	39.833
$y = {x, 0 ⩽ x ⩽ 4, 8 − x, 4 < x ⩽ 8$	2	43.855	48.640
	3	69.894	79.335
	4	85.791	103.20
Parabolic,	1	44.825	75.947
$y = 12 × {(x 3 + x), − 1 ⩽ x ⩽ 1, ((2 − x) 3 + (2 − x)), 1 < x ⩽ 3$	2	49.628	76.502
	3	184.85	217.03
	4	185.12	217.09

Table?5

Fig.?16

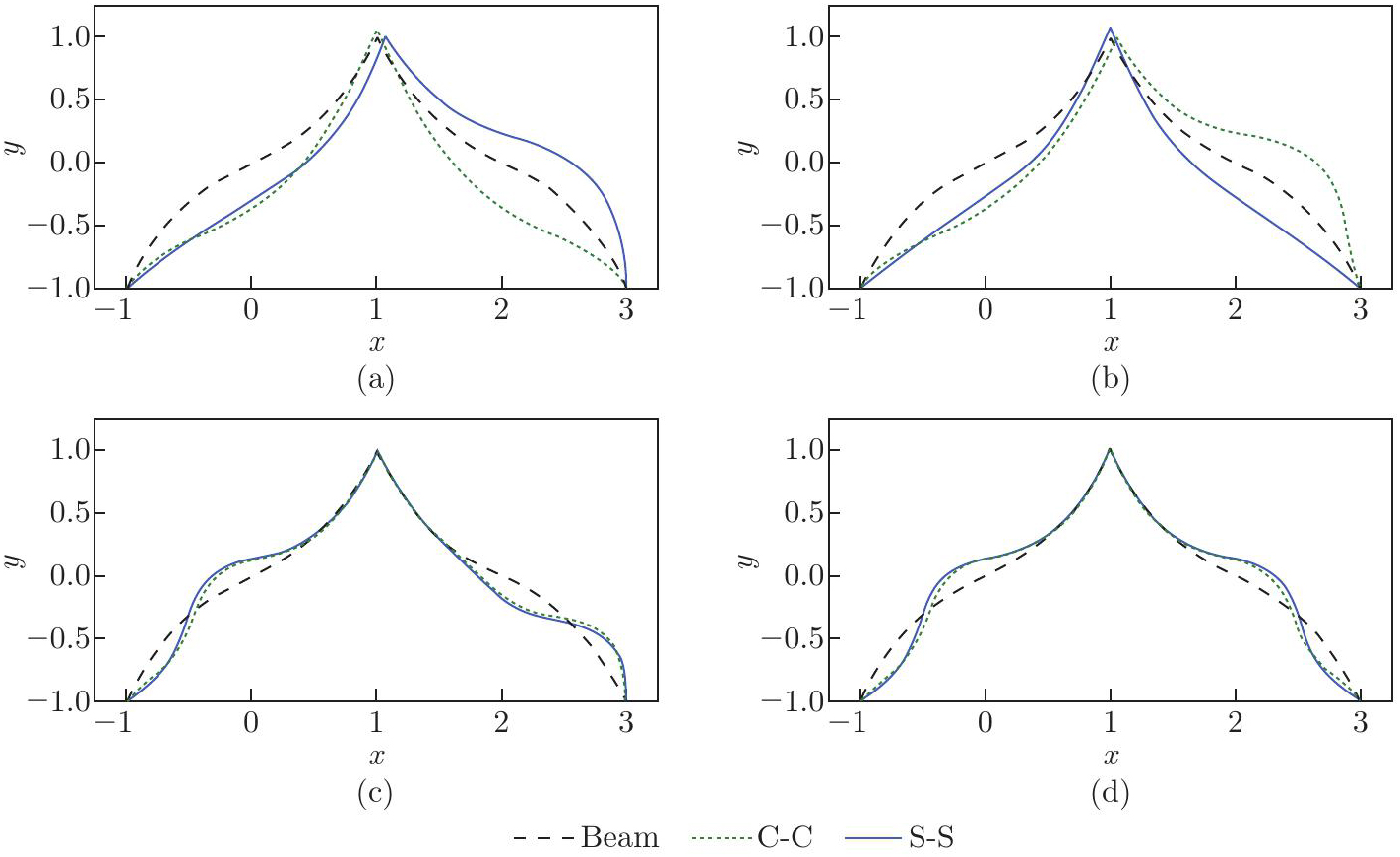

Fig.?17

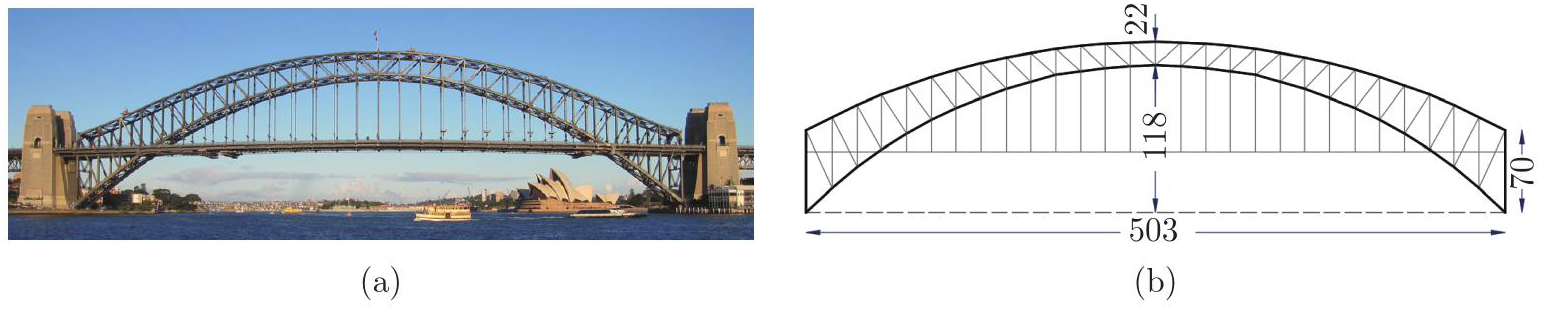

Fig.?18

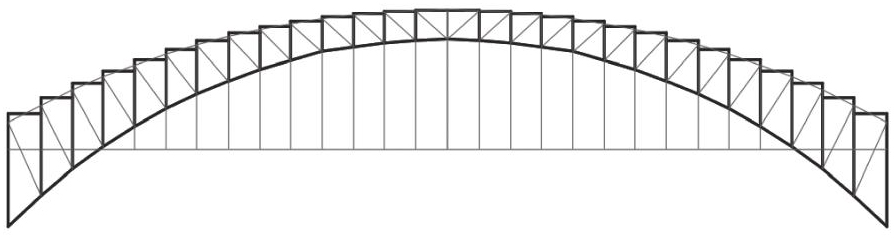

Fig.?19

Table?6

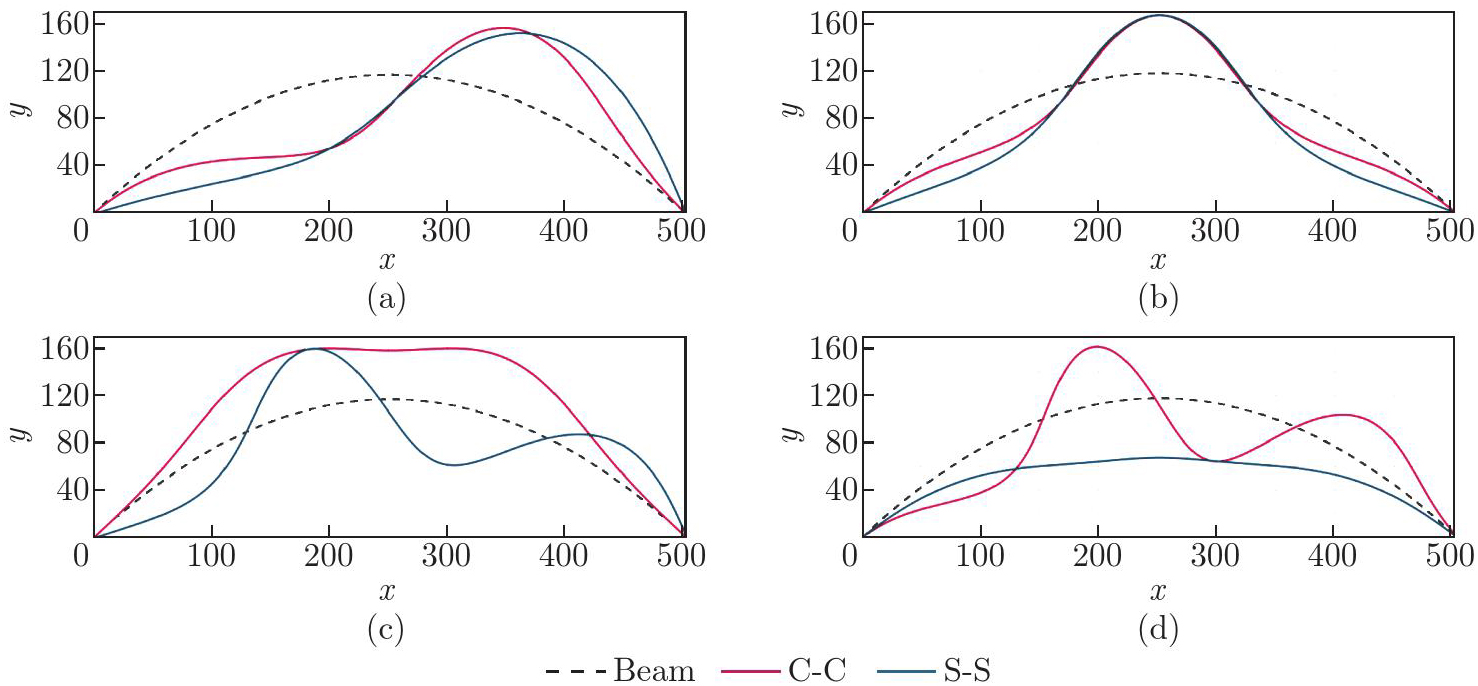

Fig.?20

References 57

[1]	ZHOU, Z. W., CHEN, M. X., and XIE, K. Non-uniform rational B-spline based free vibration analysis of axially functionally graded tapered Timoshenko curved beams. Applied Mathematics and Mechanics (English Edition), 41(4), 567–586 (2020) https://doi.org/10.1007/s10483-020-2594-7
[2]	KIKUCHI, F. On the validity of the finite element analysis of circular arches represented by an assemblage of beam elements. Computer Methods in Applied Mechanics and Engineering, 5(3), 253–276 (1975)
[3]	SENGUPTA, D. and DASGUPTA, S. Static and dynamic applications of a five noded horizontally curved beam element with shear deformation. International Journal for Numerical Methods in Engineering, 40(10), 1801–1819 (1997)
[4]	KIM, N. I. and JEON, C. K. Improved thin-walled finite curved beam elements. Advances in Mechanical Engineering, 5, 429658 (2013)
[5]	LITEWKA, P. and RAKOWSKI, J. An efficient curved beam finite element. International Journal for Numerical Methods in Engineering, 40(14), 2629–2652 (1997)
[6]	ECSEDI, I. and LENGYEL, Á. J. An analytical solution for static problems of curved composite beams. Curved and Layered Structures, 6(1), 105–116 (2019)
[7]	SHAHVEISI, N. and FELI, S. Dynamic and electrical responses of a curved sandwich beam with glass reinforced laminate layers and a pliable core in the presence of a piezoelectric layer under low-velocity impact. Applied Mathematics and Mechanics (English Edition), 45(1), 155–178 (2024) https://doi.org/10.1007/s10483-024-3074-6
[8]	FAN, J. M., PU, Z. B., YANG, J., CHANG, X. P., and LI, Y. H. Orthogonality conditions and analytical response solutions of damped gyroscopic double-beam system: an example of pipe-in-pipe system. Applied Mathematics and Mechanics (English Edition), 46(5), 927–946 (2025) https://doi.org/10.1007/s10483-025-3247-6
[9]	ARIBAS, U. N., AYDIN, M., ATALAY, M., and OMURTAG, M. H. Cross-sectional warping and precision of the first-order shear deformation theory for vibrations of transversely functionally graded curved beams. Applied Mathematics and Mechanics (English Edition), 44(12), 2109–2138 (2023) https://doi.org/10.1007/s10483-023-3065-6
[10]	KIM, N. I., YUN, H. T., and KIM, M. Y. Exact static element stiffness matrices of non-symmetric thin-walled curved beams. International Journal for Numerical Methods in Engineering, 61(2), 274–302 (2004)
[11]	WANG, Y. Q. Improved strategy of two-node curved beam element based on the same beam’s nodes information. Advances in Materials Science and Engineering, 2021, 2093096 (2021)
[12]	YANG, Y. B., KUO, S. R., and CHERNG, Y. D. Curved beam elements for nonlinear analysis. Journal of Engineering Mechanics, 115(4), 840–855 (1989)
[13]	WANG, T. M. and MERRILL, T. F. Stiffness coefficients of noncircular curved beams. Journal of Structural Engineering, 114(7), 1689–1699 (1988)
[14]	SHAH, V. N. and MARSHALL, N. H. Curved beam elements to model noncircular coil shapes for tokamak reactor. International Journal for Numerical Methods in Engineering, 21(10), 1853–1870 (1985)
[15]	BANAN, M. R., KARAMI, G., and FARSHAD, M. Finite element analysis of curved beams on elastic foundations. Computers & Structures, 32(1), 45–53 (1989)
[16]	CHOI, J. K. and LIM, J. K. Simple curved shear beam elements. Communications in Numerical Methods in Engineering, 9(8), 659–669 (1993)
[17]	KIM, J. G. and KIM, Y. Y. A new higher-order hybrid-mixed curved beam element. International Journal for Numerical Methods in Engineering, 43(5), 925–940 (1998)
[18]	KOSMATKA, J. and FRIEDMAN, Z. An accurate two-node shear-deformable curved beam element. 39th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference and Exhibit, AIAA, Long Beach (1998)
[19]	REZAIEE-PAJAND, M. and RAJABZADEH-SAFAEI, N. Static and dynamic analysis of circular beams using explicit stiffness matrix. Structural Engineering and Mechanics, 60(1), 111–130 (2016)
[20]	SHEIKH, A. H. New concept to include shear deformation in a curved beam element. Journal of Structural Engineering, 128(3), 406–410 (2002)
[21]	TARN, J. Q. and TSENG, W. D. Exact analysis of curved beams and arches with arbitrary end conditions: a Hamiltonian state space approach. Journal of Elasticity, 107(1), 39–63 (2012)
[22]	YANG, Z. B., CHEN, X. F., HE, Y. M., HE, Z. J., and ZHANG, J. The analysis of curved beam using B-spline wavelet on interval finite element method. Shock and Vibration, 2014, 738162 (2014)
[23]	MATHIYAZHAGAN, G. and VASIRAJA, N. Finite element analysis on curved beams of various sections. 2013 International Conference on Energy Efficient Technologies for Sustainability, IEEE, Nagercoil (2013)
[24]	TUFEKCI, E., EROGLU, U., and AYA, S. A. A new two-noded curved beam finite element formulation based on exact solution. Engineering with Computers, 33(2), 261–273 (2017)
[25]	GHUKU, S. and SAHA, K. N. A review on stress and deformation analysis of curved beams under large deflection. International Journal of Engineering and Technologies, 11, 13–39 (2017)
[26]	SAYYAD, A. S. and GHUGAL, Y. M. A sinusoidal beam theory for functionally graded sandwich curved beams. Composite Structures, 226, 111246 (2019)
[27]	BELARBI, M. O., HOUARI, M. S. A., HIRANE, H., DAIKH, A. A., and BORDAS, S. P. A. On the finite element analysis of functionally graded sandwich curved beams via a new refined higher order shear deformation theory. Composite Structures, 279, 114715 (2022)
[28]	SAVINO, P. and TONDOLO, F. Two-node curved inverse finite element formulations based on exact strain-displacement solution. Journal of Applied and Computational Mechanics, 9(1), 259–273 (2023)
[29]	PETYT, M. and FLEISCHER, C. C. Free vibration of a curved beam. Journal of Sound and Vibration, 18(1), 17–30 (1971)
[30]	YANG, F., SEDAGHATI, R., and ESMAILZADEH, E. Free in-plane vibration of curved beam structures: a tutorial and the state of the art. Journal of Vibration and Control, 24(12), 2400–2417 (2018)
[31]	CHANG, C. S. and HODGES, D. Vibration characteristics of curved beams. Journal of Mechanics of Materials and Structures, 4(4), 675–692 (2009)
[32]	ZHU, C. S., FANG, X. Q., and LIU, J. X. Nonlinear free vibration of piezoelectric semiconductor doubly-curved shells based on nonlinear drift-diffusion model. Applied Mathematics and Mechanics (English Edition), 44(10), 1761–1776 (2023) https://doi.org/10.1007/s10483-023-3039-7
[33]	MAO, J. J., CHENG, H., and MA, T. X. Elastic wave insulation and propagation control based on the programmable curved-beam periodic structure. Applied Mathematics and Mechanics (English Edition), 45(10), 1791–1806 (2024) https://doi.org/10.1007/s10483-024-3164-9
[34]	JAFARI-TALOOKOLAEI, R. A., GHANDVAR, H., JUMAEV, E., KHATIR, S., and CUONG-LE, T. Free vibration and transient response of double curved beams connected by intermediate straight beams. Applied Mathematics and Mechanics (English Edition), 46(1), 37–62 (2025) https://doi.org/10.1007/s10483-025-3197-8
[35]	HAJIANMALEKI, M. and QATU, M. S. Static and vibration analyses of thick, generally laminated deep curved beams with different boundary conditions. Composites Part B: Engineering, 43(4), 1767–1775 (2012)
[36]	MOTTAGHI, T. H., GHANDEHARI, M. A., and MASOODI, A. R. Dynamic behavior of carbon nanotube-reinforced polymer composite ring-like structures: unraveling the effects of agglomeration, porosity, and elastic coupling. Polymers, 17(5), 696 (2025)
[37]	CHIDAMPARAM, P. and LEISSA, A. W. Vibrations of planar curved beams, rings, and arches. Applied Mechanics Reviews, 46(9), 467–483 (1993)
[38]	GIMENA, F. N., GONZAGA, P., and GIMENA, L. 3D-curved beam element with varying cross-sectional area under generalized loads. Engineering Structures, 30(2), 404–411 (2008)
[39]	PROVASI, R. and MARTINS, C. D. A three-dimensional curved beam element for helical components modeling. Journal of Offshore Mechanics and Arctic Engineering, 136(4), 041601 (2014)
[40]	WEEGER, O., NARAYANAN, B., and DUNN, M. L. Isogeometric shape optimization of nonlinear, curved 3D beams and beam structures. Computer Methods in Applied Mechanics and Engineering, 345, 26–51 (2019)
[41]	YANG, F., SEDAGHATI, R., and ESMAILZADEH, E. Free in-plane vibration of general curved beams using finite element method. Journal of Sound and Vibration, 318(4-5), 850–867 (2008)
[42]	HUANG, C. S., TSENG, Y. P., and CHANG, S. H. Out-of-plane dynamic responses of non-circular curved beams by numerical Laplace transform. Journal of Sound and Vibration, 215(3), 407–424 (1998)
[43]	LIN, K. C. and HSIEH, C. M. The closed form general solutions of 2-D curved laminated beams of variable curvatures. Composite Structures, 79(4), 606–618 (2007)
[44]	LI, S. H. and REN, J. Y. Analytical study on dynamic responses of a curved beam subjected to three-directional moving loads. Applied Mathematical Modelling, 58, 365–387 (2018)
[45]	AUSTIN, W. J. and VELETSOS, A. S. Free vibration of arches flexible in shear. Journal of the Engineering Mechanics Division, 99(4), 735–753 (1973)
[46]	EISENBERGER, M. and EFRAIM, E. In-plane vibrations of shear deformable curved beams. International Journal for Numerical Methods in Engineering, 52(11), 1221–1234 (2001)
[47]	WU, J. S. and CHIANG, L. K. Free vibration analysis of arches using curved beam elements. International Journal for Numerical Methods in Engineering, 58(13), 1907–1936 (2003)
[48]	CIVALEK, Ö. and KIRACIOGLU, O. Free vibration analysis of Timoshenko beams by DSC method. International Journal for Numerical Methods in Biomedical Engineering, 26(12), 1890–1898 (2010)
[49]	SU, J. P., ZHOU, K., QU, Y. G., and HUA, H. X. A variational formulation for vibration analysis of curved beams with arbitrary eccentric concentrated elements. Archive of Applied Mechanics, 88(7), 1089–1104 (2018)
[50]	CORRÊA, R. M., ARNDT, M., and MACHADO, R. D. Free in-plane vibration analysis of curved beams by the generalized/extended finite element method. European Journal of Mechanics-A, 88, 104244 (2021)
[51]	KARAMANLI, A., WATTANASAKULPONG, N., LEZGY-NAZARGAH, M., and VO, T. P. Bending, buckling and free vibration behaviours of 2D functionally graded curved beams. Structures, 55, 778–798 (2023)
[52]	YE, S. Q., MAO, X. Y., DING, H., JI, J. C., and CHEN, L. Q. Nonlinear vibrations of a slightly curved beam with nonlinear boundary conditions. International Journal of Mechanical Sciences, 168, 105294 (2020)
[53]	SAYYAD, A. S. and AVHAD, P. V. A new higher order shear and normal deformation theory for the free vibration analysis of sandwich curved beams. Composite Structures, 280, 114948 (2022)
[54]	CAI, Y., LI, X., FAN, X., LV, X., and CHEN, H. The vibration response of five beam theories under eccentric moving harmonic loads. Mechanics Based Design of Structures and Machines, 53(4), 2606–2627 (2024)
[55]	ZHOU, H., LING, M. X., YIN, Y. H., and WU, S. L. Transfer matrix modeling for asymmetrically-nonuniform curved beams by beam-discrete strategies. International Journal of Mechanical Sciences, 276, 109425 (2024)
[56]	WU, S. L., ZHU, J., WEI, H. X., ZHANG, Y. T., and LING, M. X. Vibration analysis of nonuniform and curved-axis flexure hinges/beams by a recursive dynamic compliance matrix. Thin-Walled Structures, 215, 113495 (2025)
[57]	MOTTAGHI, T. H., MASOODI, A. R., and GANDOMI, A. H. Multiscale analysis of carbon nanotube-reinforced curved beams: a finite element approach coupled with multilayer perceptron neural network. Results in Engineering, 23, 102585 (2024)

Support condition	Mode	Present study	Ref. [19]	Ref. [41]	Ref. [57]	Error/%
S-S	1	29.192	29.285	29.306	29.264	0.317 6
	2	33.255	33.321	33.243	33.280	0.079 1
	3	66.721	67.202	67.123	66.935	0.545 1
	4	79.796	80.049	79.950	79.817	0.178 5
C-C	1	36.694	36.716	36.657	36.674	0.031 8
	2	42.250	42.278	42.289	42.228	0.035 5
	3	82.160	82.361	82.228	81.930	0.015 8
	4	84.452	84.565	84.471	84.328	0.003 2

Geometry of arch	Mode	Present study	Ref. [41]	Error/%
Elliptic	1	34.860	34.892	0.091 7
	2	56.727	56.766	0.068 7
	3	81.265	81.420	0.190 4
	4	123.91	124.29	0.305 7
Sinusoid	1	56.064	56.083	0.033 9
	2	66.035	66.047	0.018 2
	3	113.32	113.41	0.079 4
	4	179.03	179.26	0.128 3

Mode	S-S	C-C
1	2.458 0	5.518 1
2	6.515 8	9.861 4
3	11.849	14.945
4	14.846	15.729
