Mixed elastohydrodynamic lubrication contact of piezoelectric materials with different Gaussian rough surfaces

doi:10.1007/s10483-026-3380-6

Abstract

Abstract:

The mixed elastohydrodynamic lubrication (EHL) behavior of a smooth, rigid, insulating cylindrical indenter in contact with transversely isotropic piezoelectric half-planes possessing Gaussian-distributed surface roughness is analyzed. Three distinct surface topographies are considered: longitudinally oriented, isotropic, and transversely oriented. The lubricant is assumed to exhibit non-Newtonian flow characteristics, and its density and viscosity are modeled to be pressure-dependent. A modified Reynolds equation, incorporating both pressure and shear flow factors, is utilized to compute the hydrodynamic pressure distribution within the lubricating film. An iterative computational scheme is developed for the coupled resolution of the modified Reynolds equation, flow rheology equations, asperity contact pressure equation, load balance equation, and film thickness equation. Parametric investigations are conducted to examine the influence of the total normal load, entrainment velocity, hydrodynamic roughness parameter, slide-to-roll ratio, contact roughness parameter, and surface pattern parameter on the film thickness, asperity contact pressure, and fluid hydrodynamic pressure. The results obtained may provide valuable insights for mitigating surface degradation at piezoelectric contact interfaces and enhancing the operational reliability of associated electromechanical systems.

Key words: contact mechanics, mixed elastohydrodynamic lubrication (EHL), Gaussian rough surface, piezoelectric material, iterative method

2010 MSC Number:

O373

Zhengzhe XIE, S. EL-BORGI, Jie SU, Liaoliang KE. Mixed elastohydrodynamic lubrication contact of piezoelectric materials with different Gaussian rough surfaces. Applied Mathematics and Mechanics (English Edition), 2026, 47(5): 965-984.

TrendMD

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: https://www.amm.shu.edu.cn/EN/10.1007/s10483-026-3380-6

https://www.amm.shu.edu.cn/EN/Y2026/V47/I5/965

Figures/Tables 16

Fig. 1

Fig. 2

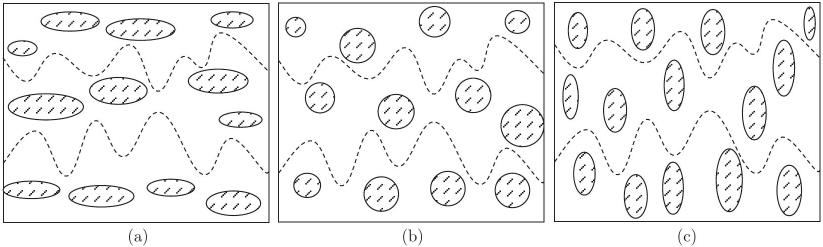

Fig. 3

Table 1

Coefficients of Eq. (5) for ϕx"

γ	C	r	$h / σ$
1/6	1.38	0.42	$> 1$
1	0.90	0.56	$> 0.5$
6	0.52	1.50	$> 0.5$

Table 1

Table 2

Coefficients of Eq. (6) for ϕs"

γ	A₁	$α 1$	$α 2$	$α 3$	A₂
1/6	1.962	1.08	0.77	0.03	1.754
1	1.899	0.98	0.92	0.05	1.126
6	1.290	0.62	1.09	0.08	0.388

Table 2

Fig. 4

Table 3

Electro-mechanical properties of piezoceramic materials"

Parameter	PZT-4	PZT-5H	PZT-5A	BaTiO₃
$c 11$ /GPa	139	126	121	166
$c 13$ /GPa	74.3	53	75.2	77.5
$c 33$ /GPa	115	117	111	162
$c 44$ /GPa	25.6	35.3	21.1	42.9
$e 31 / (C ⋅ m − 2)$	$− 5.2$	$− 6.5$	$− 5.4$	$− 4.4$
$e 33 / (C ⋅ m − 2)$	15.1	23.3	15.8	18.6
$e 15 / (C ⋅ m − 2)$	12.7	17	12.3	11.6
$ε 11$ /(C·V^-1·m^-1)	$64.61 × 10 − 10$	$151 × 10 − 10$	$81.07 × 10 − 10$	$111.51 × 10 − 10$
$ε 33$ /(C·V^-1·m^-1)	$56.2 × 10 − 10$	$130 × 10 − 10$	$73.46 × 10 − 10$	$125.67 × 10 − 10$

Table 3

Fig. 5

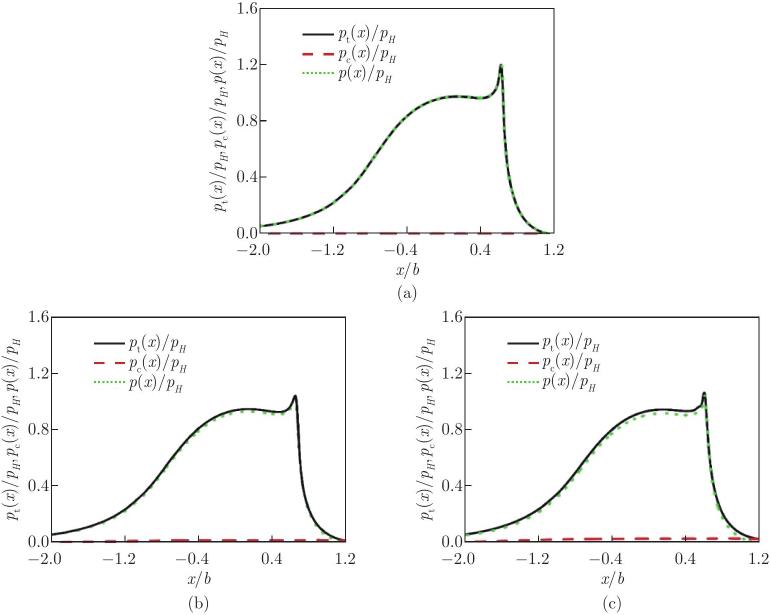

Fig. 6

Fig. 7

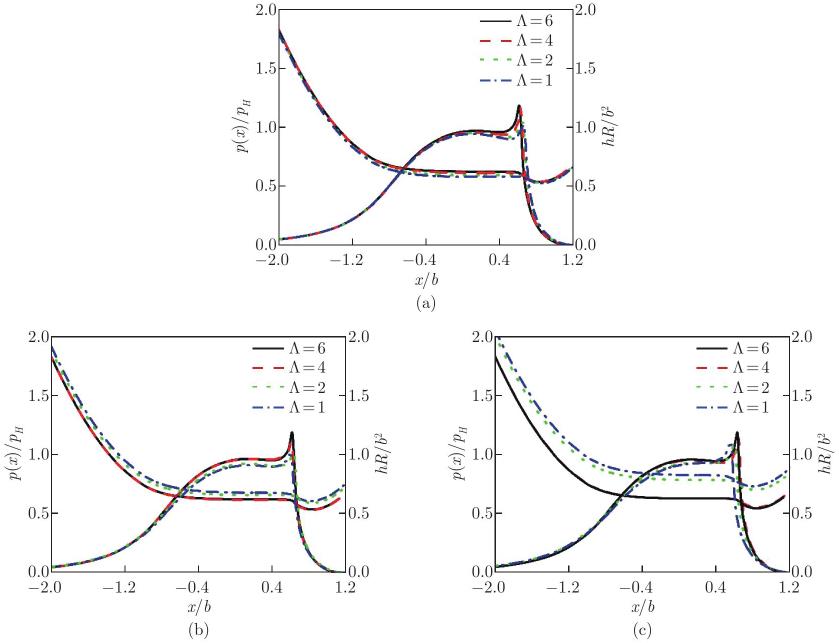

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13
