Thermal fracture analysis of two collinear cracks in a functionally graded medium based on the three-phase-lag model

doi:10.1007/s10483-025-3223-6

Abstract

Abstract:

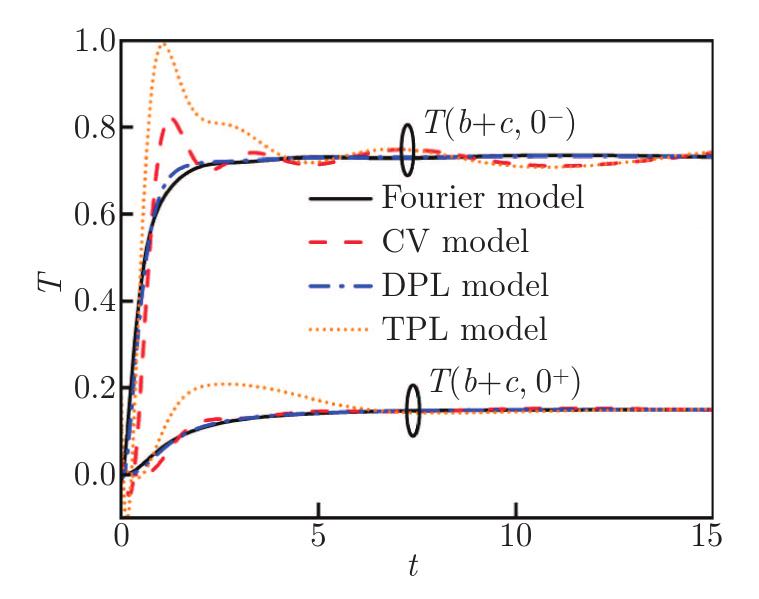

The three-phase-lag (TPL) heat conduction model is an accurate representation of the actual heat transfer process. It would be interesting to investigate how the TPL model affects the thermal fracture behavior when there are defects existing in the medium. This paper aims to analyze the thermoelastic responses of two collinear cracks within a functionally graded half-space under thermal loadings by means of the TPL model. The thermoelastic problem is transformed into a series of singular integral equations using the integral transformation methods. The transient temperature and stress intensity factors (SIFs) are obtained through the application of Chebyshev polynomials. The effects of crack spacing and non-homogeneous parameters on the transient thermoelastic responses are presented, and the results of the TPL model are compared with those of the Fourier model, Cattaneo and Vernotte (CV) model, and dual-phase-lag (DPL) model. It is shown that crack spacing and non-homogeneous parameters have important effects on the thermoelastic responses, and the fluctuation phenomenon under the TPL model is the most pronounced due to the existence of the thermal displacement lag term.

Key words: three-phase-lag (TPL), collinear crack, functionally graded material (FGM), stress intensity factor (SIF)

2010 MSC Number:

O343.6

Zhangna XUE, Huameng WANG, Jianlin LIU, Minjie WEN, Z. T. CHEN. Thermal fracture analysis of two collinear cracks in a functionally graded medium based on the three-phase-lag model. Applied Mathematics and Mechanics (English Edition), 2025, 46(3): 501-520.

TrendMD

Figures/Tables 13

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

References 34

[1]	KOIZUMI, M. FGM activities in Japan. Composites Part B: Engineering, 28, 1–4 (1997)
[2]	KASAEIAN, A. B., VATAN, S. N., and DANESHMAND, S. FGM materials and finding an appropriate model for the thermal conductivity. Procedia Engineering, 14, 3199–3204 (2011)
[3]	NABIH, C., AKIRA, K., and MICHAEL, G. Worldwide trends in functional gradient materials research and development. Composites Engineering, 4, 883–894 (1994)
[4]	PRAGYA, A. and GHOSH, T. K. Soft functionally gradient materials and structures-natural and manmade: a review. Advanced Materials, 35, 2300912 (2023)
[5]	SASAKI, M. and HIRAI, T. Fabrication and properties of functionally gradient materials. Journal of the Ceramic Society of Japan, 99, 1002–1013 (1991)
[6]	NODA, N. and SHEN, S. Thermal stress intensity factors for a crack in a functionally gradient material subjected to a thermal load. Journal of Thermal Stresses, 16, 247–263 (1993)
[7]	PAULINO, G. H., JIN, Z. H., and DODDS, R. H., JR. Failure of functionally graded materials. Comprehensive Structural Integrity, 2, 607–644 (2003)
[8]	NODA, N., TAKAHASHI, H., and OOTAO, Y. Transient thermal stress intensity factors for an edge crack in a functionally graded material plate. Journal of Thermal Stresses, 21, 153–170 (1998)
[9]	BAO, G. and WANG, L. Multiple cracking in functionally graded ceramic/metal coatings. International Journal of Solids and Structures, 32, 2853–2871 (1995)
[10]	TZOU, D. Y. The generalized lagging response in small-scale and high-rate heating. International Journal of Heat and Mass Transfer, 38, 3231–3240 (1995)
[11]	CATTANEO, C. Sur form d'équation de la chaleur éliminant le paradoxe d'une propagation instantanée. Comptes Rendus de l'Académie des Sciences, 247, 431–433 (1958)
[12]	VERNOTTE, P. Les paradoxes de la théorie continue de l'équation de la chaleur. Comptes Rendus de l'Académie des Sciences, 246, 3154–3155 (1958)
[13]	ZHANG, Y. Y., CHEN, Z. T., GUO, F. N., ZHOU, T. Y., and ZENG, Z. W. Investigation of the fracture problem of functionally graded materials with an inclined crack under strong transient thermal loading. Theoretical and Applied Fracture Mechanics, 119, 103324 (2022)
[14]	ZHANG, X. Y. and LI, X. F. Transient response of a functionally graded thermoelastic plate with a crack via fractional heat conduction. Theoretical and Applied Fracture Mechanics, 104, 102318 (2019)
[15]	YU, Y. J., HU, W., and TIAN, X. G. A novel generalized thermoelasticity model based on memory-dependent derivative. International Journal of Engineering Science, 81, 123–134 (2014)
[16]	XUE, Z. N., CHEN, Z. T., and TIAN, X. G. Transient thermal stress analysis for a circumferentially cracked hollow cylinder based on memory-dependent heat conduction model. Theoretical and Applied Fracture Mechanics, 96, 123–133 (2018)
[17]	XUE, Z. N., CHEN, Z. T., and TIAN, X. G. Thermoelastic analysis of a cracked strip under thermal impact based on memory-dependent heat conduction model. Engineering Fracture Mechanics, 200, 479–498 (2018)
[18]	XUE, Z. N., TIAN, X. G., and LIU, J. L. Thermal shock fracture of a crack in a functionally gradient half-space based on the memory-dependent heat conduction model. Applied Mathematical Modelling, 80, 840–858 (2020)
[19]	TZOU, D. Y. A unified field approach for heat conduction from macro-to micro-scales. Journal of Heat and Mass Transfer, 117, 8–16 (1995)
[20]	CHANDRASEKHARAIAH, D. S. Hyperbolic thermoelasticity: a review of recent literature. Applied Mechanics Reviews, 51, 705–729 (1998)
[21]	YANG, W. Z., POURASGHAR, A., and CHEN, Z. T. Thermoviscoelastic fracture analysis of a cracked orthotropic fiber reinforced composite strip by the dual-phase-lag theory. Composite Structures, 258, 11319 (2021)
[22]	YANG, W. Z., POURASGHAR, A., CHEN, Z. T., and ZHANG, X. Y. Non-Fourier thermoelastic interaction of two collinear cracks in a functionally graded layer. Applied Mathematical Modelling, 122, 417–434 (2023)
[23]	CHOUDHURI, S. K. R. On a thermoelastic three-phase-lag model. Journal of Thermal Stresses, 30, 231–238 (2007)
[24]	ZHANG, Q., SUN, Y. X., and YANG, J. L. Thermoelastic responses of biological tissue under thermal shock based on three phase lag model. Case Studies in Thermal Engineering, 28, 101376 (2021)
[25]	BOURAOUI, H. A., DJEBABLA, A., and SOUAHI, A. Exponential stability of Timoshenko beams with three-phase-lag thermoelasticity. Computers & Mathematics with Applications, 168, 58–83 (2024)
[26]	HOBINY, A., ABBAS, I., ALSHEHRI, H., VLASE, S., and MARIN, M. Thermoelastic analysis in poro-elastic materials using a TPL model. Applied Sciences, 12, 5914 (2022)
[27]	SUR, A. and MONDAL, S. A generalized thermoelastic problem due to nonlocal effect in presence of mode I crack. Journal of Thermal Stresses, 43, 1277–1299 (2020)
[28]	JIN, Z. H. and NODA, N. Transient thermal stress intensity factors for a crack in a semi-infinite plate of a functionally gradient material. International Journal of Solids and Structures, 31, 203–218 (1994)
[29]	HU, K. and CHEN, Z. T. Thermoelastic analysis of a partially insulated crack in a strip under thermal impact loading using the hyperbolic heat conduction theory. International Journal of Engineering Science, 51, 144–160 (2012)
[30]	DELALE, F. and ERDOGAN, F. Effect of transverse shear and material orthotropy in a cracked spherical cap. International Journal of Solids and Structures, 15, 907–926 (1979)
[31]	THEOCARIS, P. S. and IOAKIMIDIS, N. I. Numerical integration methods for the solution of singular integral equations. Quarterly of Applied Mathematics, 35, 173–183 (1977)
[32]	MILLER, M. K. and GUY, W. T. Numerical inversion of the Laplace transform by use of Jacobi polynomials. SIAM Journal on Numerical Analysis, 3, 624–635 (1966)
[33]	TWEED, J. and MELROSE, G. The thermal stresses due to a uniform heat flux past two collinear cracks. International Journal of Engineering Science, 26, 1053–1057 (1988)
[34]	HAN, D., FAN, H. W., YAN, C. Z., WANG, T., YANG, Y., ALI, S., and WANG, G. Heat conduction and cracking of functionally graded materials using an FDEM-based thermo-mechanical coupling model. Applied Sciences, 12, 12279 (2022)
